联锁开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 电路 | 电流额定值（安培） | 电压额定值 | 电压 - 电源 | 保持力 | 执行器类型 | 端接样式 | 特性 | 必须操作 | 必须释放 | 导管螺纹尺寸 | 工作温度 | 防护等级 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
XCSRC30M12INTERLOCK RFID DPST Telemecanique Sensors |
3,749 |
|
数据手册 |
XCSRC | Box | Active | RFID | DPST-NO | 60mA (DC) | 30VDC | - | - | Non-Contact | Connector (M12) | - | 10mm | 35mm | - | -25°C ~ 70°C | IP65/IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | CSA, E2, EAC, Ecolab, FCC, IC, RCM, TUV |
|
XCSDMR59010INTERLOCK MAGNETIC DPST Telemecanique Sensors |
4,466 |
|
数据手册 |
XCSDMR | Box | Active | Magnetic | DPST-NO/NC | 100mA (DC) | 24VDC | - | - | - | Cable Leads | - | 8mm | 20mm | - | -25°C ~ 85°C | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | CSA, UL |
|
|
XCSMP59L5INTERLOCK KEY LOCKING DPST Telemecanique Sensors |
4,236 |
|
数据手册 |
XCSMP | Box | Active | Key Locking | DPST-NO/NC | 1.5A (AC), 550mA (DC) | 120VAC, 125VDC | - | - | Panel Disconnect | Cable Leads | - | - | - | - | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | CSA, UL |
|
XCSRC12M12INTERLOCK SWITCH RFID Telemecanique Sensors |
3,192 |
|
数据手册 |
XCSRC | Box | Active | RFID | - | 60mA (DC) | 24VDC | - | - | Non-Contact | Connector (M12) | - | 10mm | 35mm | - | -25°C ~ 70°C | IP65/IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | CSA, E2, EAC, Ecolab, FCC, IC, RCM, TUV |
|

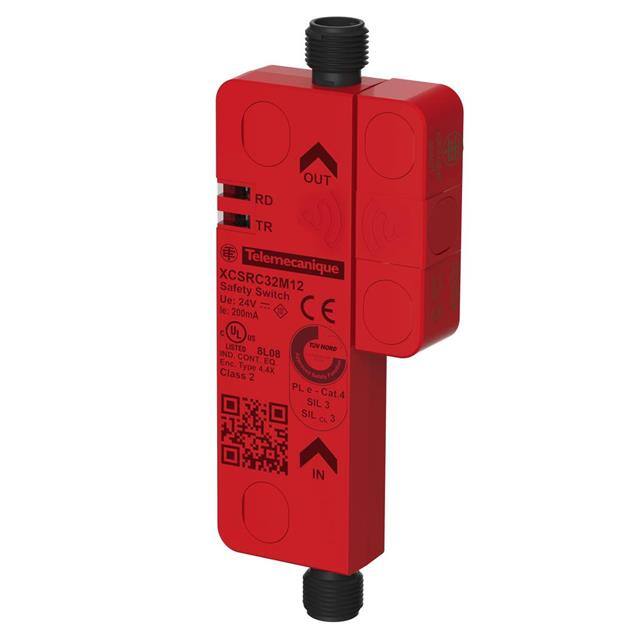

XCSRC32M12INTERLOCK SWITCH RFID Telemecanique Sensors |
3,404 |
|
数据手册 |
XCSRC | Box | Active | RFID | - | 60mA (DC) | 24VDC | - | - | Non-Contact | Connector (M12) | - | 10mm | 35mm | - | -25°C ~ 70°C | IP65/IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | CSA, E2, EAC, Ecolab, FCC, IC, RCM, TUV |
|
|
XCSTR851OBSOLETE INTRLCK SWITCH 240VAC10 Telemecanique Sensors |
1,213 |
|
数据手册 |
XCST | Bulk | Active | Non-Locking | 3PST-2NC/1NO | 6A (AC), 200mA (DC) | 120VAC, 125VDC | - | - | Shaft | Screw Terminal | - | - | - | PG11 | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | BG, CSA, UL |
|
|
XCSTR552SAFETY INTERLOCK 240VAC 10AMP T- Telemecanique Sensors |
4,230 |
|
数据手册 |
XCST | Bulk | Active | Non-Locking | 3PST-2NC/1NO | 6A (AC), 200mA (DC) | 120VAC, 125VDC | - | - | Shaft | Screw Terminal | - | - | - | M16 x 1.5 | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | BG, CSA, UL |
|
|
XCSTR551SAFETY INTERLOCK 240VAC 10AMP T- Telemecanique Sensors |
4,511 |
|
数据手册 |
XCST | Bulk | Active | Non-Locking | 3PST-2NC/1NO | 6A (AC), 200mA (DC) | 120VAC, 125VDC | - | - | Shaft | Screw Terminal | - | - | - | PG11 | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | BG, CSA, UL |
|
|
XCSDMP590L05M8INTERLOCK MAGNETIC DPST Telemecanique Sensors |
4,864 |
|
数据手册 |
XCSDMP | Box | Active | Magnetic | DPST-NO/NC | - | - | - | - | Non-Contact | Cable with Connector (M8) | - | 8mm | 20mm | - | -25°C ~ 85°C | IP67 - Dust Tight, Waterproof | CSA, UL |
|
|
XCSMP80L5INTERLOCK KEY LOCKING 3PST Telemecanique Sensors |
1,787 |
|
数据手册 |
XCSMP | Box | Active | Key Locking | 3PST-NC | 1.5A (AC), 550mA (DC) | 120VAC, 125VDC | - | - | Panel Disconnect | Cable Leads | - | - | - | - | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | CSA, CUL, UL |
