联锁开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 电路 | 电流额定值（安培） | 电压额定值 | 电压 - 电源 | 保持力 | 执行器类型 | 端接样式 | 特性 | 必须操作 | 必须释放 | 导管螺纹尺寸 | 工作温度 | 防护等级 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
XCSPA693INTERLOCK KEY LOCKING DPST Telemecanique Sensors |
2,107 |
|
数据手册 |
XCSPA | Box | Active | Key Locking | DPST-NO/NC | 6A (AC), 550mA (DC) | 120VAC, 125VDC | - | - | Panel Disconnect | Cable Leads | - | - | - | 1/2" NPT | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | CSA, UL |
|
|
XCSDMR79010INTERLOCK MAGNETIC DPST Telemecanique Sensors |
1,664 |
|
数据手册 |
XCSDMR | Box | Active | Magnetic | DPST-NC | 100mA (DC) | 100VDC | - | - | Non-Contact | Cable Leads | - | 8mm | 20mm | - | -25°C ~ 85°C | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | CSA, UL |
|
|
XCSDMC59010EXINTERLOCK MAGNETIC DPST Telemecanique Sensors |
2,868 |
|
数据手册 |
XCSDMC | Box | Active | Magnetic | DPST-NO/NC | 100mA (DC) | 100VDC | - | - | Non-Contact | Cable Leads | - | 5mm | 15mm | - | -25°C ~ 85°C | IP66 - Dust Tight, Waterproof | - |
|
|
XCSPL593INTERLOCK NON-LOCKING DPST Telemecanique Sensors |
3,011 |
|
数据手册 |
XCSPL | Box | Active | Non-Locking | DPST-NO/NC | - | - | - | - | Arm Lever | Screw Terminal | - | - | - | 1/2" NPT | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | BG, CSA, UL |
|
|
XCSPL583INTERLOCK NON-LOCKING DPST Telemecanique Sensors |
4,529 |
|
数据手册 |
XCSPL | Box | Active | Non-Locking | DPST-NO/NC | - | - | - | - | Arm Lever | Screw Terminal | - | - | - | 1/2" NPT | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | BG, CSA, UL |
|
|
XCSDMP5915INTERLOCK MAGNETIC DPST 5M Telemecanique Sensors |
1,181 |
|
数据手册 |
XCSDMP | Box | Active | Magnetic | DPST-NO/NC | 100mA (DC) | 100VDC | - | - | Non-Contact | Cable Leads | - | 8mm | 20mm | - | -25°C ~ 85°C | IP66 - Dust Tight, Waterproof | CSA, UL |
|
XCSDMP790L01M12INTERLOCK MAGNETIC DPST Telemecanique Sensors |
1,687 |
|
数据手册 |
XCSDMP | Box | Active | Magnetic | DPST-NC | 100mA (DC) | 24VDC | - | - | Non-Contact | Cable with Connector (M12) | - | 8mm | 20mm | - | -25°C ~ 85°C | IP67 - Dust Tight, Waterproof | CSA, UL |
|
XCSDMC79010INTERLOCK MAGNETIC DPST Telemecanique Sensors |
3,501 |
|
数据手册 |
XCSDMC | Box | Active | Magnetic | DPST-NC | 100mA (DC) | 24VDC | - | - | Non-Contact | Cable Leads | - | 5mm | 15mm | - | -25°C ~ 85°C | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | CSA, UL |
|
|
XCSDMC59010INTERLOCK MAGNETIC DPST Telemecanique Sensors |
2,958 |
|
数据手册 |
XCSDMC | Box | Active | Magnetic | DPST-NO/NC | 100mA (DC) | 100VDC | - | - | Non-Contact | Cable Leads | - | 5mm | 15mm | - | -25°C ~ 85°C | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | CSA, UL |
|

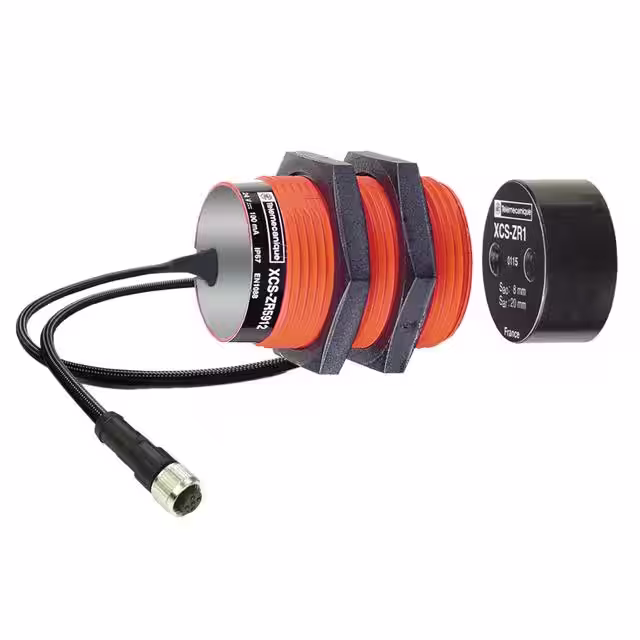

XCSDMR790L01M12INTERLOCK MAGNETIC DPST Telemecanique Sensors |
1,933 |
|
数据手册 |
XCSDMR | Box | Active | Magnetic | DPST-NC | 100mA (DC) | 24VDC | - | - | - | Cable with Connector (M12) | - | 8mm | 20mm | - | -25°C ~ 85°C | IP67 - Dust Tight, Waterproof | CSA, UL |
