信号缓冲器、信号放大器、分配器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 应用 | 输入 | 输出 | 数据速率（最大值） | 通道数 | 延迟时间 | 信号调理 | 电容 - 输入 | 电压 - 电源 | 电流 - 电源 | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAX14950ACTL+IC REDRIVER PCIE 4CH 40TQFN |
1,837 |
|
数据手册 |
- | 40-WFQFN Exposed Pad | Tray | Obsolete | Buffer, ReDriver | PCIe | - | - | - | 4 | 160ps | Input Equalization, Output De-Emphasis | - | 3V ~ 3.6V | 328mA | 0°C ~ 70°C | - | - | Surface Mount | 40-TQFN (5x5) |
|
MAX4951BECTP+GH7IC REDRIVER ESATA 1CH 20TQFN |
3,024 |
|
数据手册 |
- | 20-WFQFN Exposed Pad | Tray | Obsolete | Buffer, ReDriver | eSATA | - | - | 3Gbps | 1 | 150ps | Input Equalization, Output Pre-Emphasis | - | 3V ~ 3.6V | 77mA | 0°C ~ 70°C | - | - | Surface Mount | 20-TQFN (4x4) |
|
PCA9509DP/DG,118IC REDRIVER I2C 2CH 8TSSOP |
4,612 |
|
数据手册 |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Obsolete | Buffer, ReDriver | I2C | 2-Wire Bus | 2-Wire Bus | 400kHz | 2 | - | - | 2 pF | 3V ~ 5.5V | 3mA | -40°C ~ 85°C | - | - | Surface Mount | 8-TSSOP |
|
PI3EQX4951STZDEIC REDRIVER SATA 2CH 20TQFN |
4,986 |
|
数据手册 |
ReDriver™ | 20-WFQFN Exposed Pad | Tray | Obsolete | Buffer, ReDriver | SATA | CML | CML | 3Gbps | 2 | - | Input Equalization | - | 3V ~ 3.6V | - | - | - | - | Surface Mount | 20-TQFN (4x4) |
|
PI2EQX6804-ANJEIC REDRIVER SATA 8CH 100LBGA |
2,095 |
|
数据手册 |
ReDriver™ | 100-LBGA | Tray | Obsolete | Buffer, ReDriver | SATA | CML | CML | 6.5Gbps | 8 | - | Input Equalization | - | 1.2V | - | - | - | - | Surface Mount | 100-LBGA (11x11) |
|
|
PI2EQX5904NJEIC REDRIVER PCIE 8CH 100LBGA |
2,519 |
|
数据手册 |
PCI Express®(PCIe), ReDriver™ | 100-LBGA | Tray | Obsolete | Buffer, ReDriver | PCIe | CML | CML | 5Gbps | 8 | - | Input Equalization, Output De-Emphasis | - | 1.2V | 800mA | -40°C ~ 85°C | - | - | Surface Mount | 100-LBGA (11x11) |
|
PI2EQX5964ZFEIC REDRIVER PCIE 8CH 56TQFN |
1,309 |
|
数据手册 |
ReDriver™ | 56-WFQFN Exposed Pad | Tray | Obsolete | Buffer, ReDriver | PCIe | CML | CML | 5Gbps | 8 | 750ps | Input Equalization, Output De-Emphasis | - | 1.15V ~ 1.25V | 800mA | -40°C ~ 85°C | - | - | Surface Mount | 56-TQFN (11x5) |
|

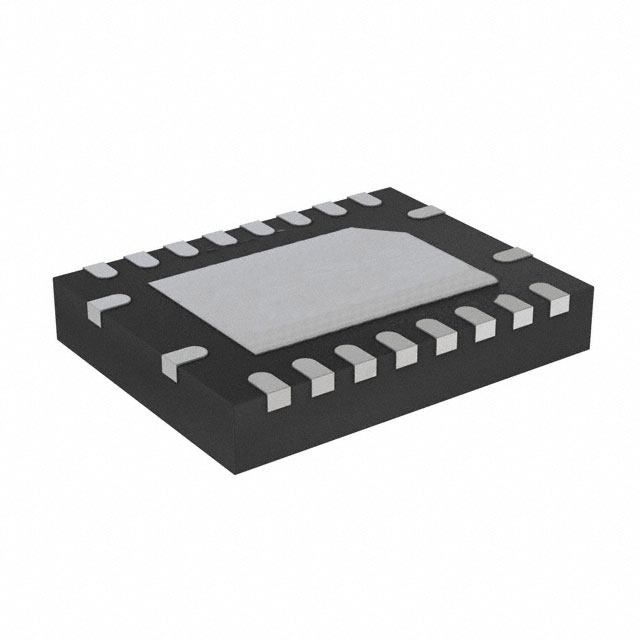

PI2EQX3431ZHEIC REDRIVER SAS/SATA 2CH 20TQFN |
1,989 |
|
数据手册 |
ReDriver™ | 20-WFQFN Exposed Pad | Tube | Obsolete | Buffer, ReDriver | SAS, SATA | CML | CML | 3.2Gbps | 2 | 1.0ns | Input Equalization | - | 1.4V ~ 1.9V | - | 0°C ~ 70°C | - | - | Surface Mount | 20-TQFN (4.5x3.5) |
|
PI2EQX6812ZHEIC REDRIVER SAS/SATA 4CH 42TQFN |
1,017 |
|
数据手册 |
ReDriver™ | 42-VFQFN Exposed Pad | Tray | Obsolete | Buffer, ReDriver | SAS, SATA | CML | CML | 6.5Gbps | 4 | - | Input Equalization, Output De-Emphasis | - | 1.2V | - | - | - | - | Surface Mount | 42-TQFN (9x3.5) |
|
|
PI2EQX6741SLZDEIC REDRIVER SATA 2CH 20TQFN |
2,119 |
|
数据手册 |
ReDriver™ | 20-WFQFN Exposed Pad | Tray | Obsolete | Buffer, ReDriver | SATA | CML | CML | 6Gbps | 2 | - | Input Equalization, Output Pre-Emphasis | - | 1.05V | - | - | - | - | Surface Mount | 20-TQFN (4x4) |
|
|
PI3EQX6741STZDEIC REDRIVER SATA 2CH 20TQFN |
2,543 |
|
数据手册 |
ReDriver™ | 20-WFQFN Exposed Pad | Tray | Obsolete | Buffer, ReDriver | SATA | CML | CML | 6Gbps | 2 | - | Input Equalization, Output Pre-Emphasis | - | 3V ~ 3.6V | - | - | - | - | Surface Mount | 20-TQFN (4x4) |
|
|
PI2EQX6814NJEIC REDRIVER SAS/SATA 8CH 100LBGA |
1,360 |
|
数据手册 |
ReDriver™ | 100-LBGA | Tray | Obsolete | Buffer, ReDriver | SAS, SATA | CML | CML | 6.5Gbps | 8 | - | Input Equalization, Output De-Emphasis | - | 1.2V | - | -40°C ~ 85°C | - | - | Surface Mount | 100-LBGA (11x11) |
|
PI2EQX3202BNBEIC REDRIVER SATA 4CH 84LFBGA |
2,171 |
|
数据手册 |
ReDriver™ | 84-LFBGA | Tray | Obsolete | Buffer, ReDriver | SATA | CML | CML | 3.2Gbps | 4 | 2.0ns | Input Equalization, Output De-Emphasis | - | 1.4V ~ 1.9V | - | 0°C ~ 70°C | - | - | Surface Mount | 84-LFBGA (9x9) |
|
|
MAX14970ETP+TIC REDRIVER ESATA 2CH 20TQFN |
1,776 |
|
数据手册 |
- | 20-WFQFN Exposed Pad | Tape & Reel (TR) | Active | Buffer, ReDriver | eSATA | - | - | 6Gbps | 2 | 240ps | Input Equalization, Output Pre-Emphasis | - | 3V ~ 3.6V | 70mA | -40°C ~ 85°C | - | - | Surface Mount | 20-TQFN (4x4) |
|
PI3EQX502IZHEIC REDRIVER USB 3.0 1CH 16TQFN |
1,368 |
|
数据手册 |
ReDriver™ | 16-WFQFN Exposed Pad | Tube | Discontinued at Digi-Key | Buffer, ReDriver | USB 3.0 | CML | CML | 5Gbps | 1 | - | Input Equalization, Output De-Emphasis | - | 3.3V | - | - | - | - | Surface Mount | 16-TQFN (3x3) |
|
|
PI2EQX6811ZDEIC REDRIVER SAS/SATA 2CH 20TQFN |
4,510 |
|
数据手册 |
ReDriver™ | 20-WFQFN Exposed Pad | Tray | Obsolete | Buffer, ReDriver | SAS, SATA | CML | CML | 6Gbps | 2 | - | Input Equalization, Output Pre-Emphasis | - | 1.5V | - | -40°C ~ 85°C | - | - | Surface Mount | 20-TQFN (4x4) |
|
|
PI3EQX5801ZDEIC REDRIVER PCIE 2CH 20TQFN |
1,450 |
|
数据手册 |
ReDriver™ | 20-WFQFN Exposed Pad | Tray | Obsolete | Buffer, ReDriver | PCIe | CML | CML | 5Gbps | 2 | 1.0ns | Input Equalization, Output De-Emphasis | - | 1.5V, 3.3V | 100mA | -40°C ~ 85°C | - | - | Surface Mount | 20-TQFN (4x4) |
|
|
PI3EQX6801ZDEIC REDRIVER SAS/SATA 2CH 20TQFN |
4,719 |
|
数据手册 |
ReDriver™ | 20-WFQFN Exposed Pad | Tray | Obsolete | Buffer, ReDriver | SAS, SATA | CML | CML | 6.5Gbps | 2 | - | Input Equalization, Output Pre-Emphasis | - | 1.5V, 3.3V | - | -40°C ~ 85°C | - | - | Surface Mount | 20-TQFN (4x4) |
|
|
MAX14955ETL+TIC REDRIVER PCIE 1CH 40TQFN |
2,246 |
|
数据手册 |
- | 40-WFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | Buffer, ReDriver | PCIe | - | - | - | 1 | 160ps | Input Equalization, Output De-Emphasis | - | 3V ~ 3.6V | 102mA | -40°C ~ 85°C | - | - | Surface Mount | 40-TQFN (6x6) |
|
MAX14986ETI+TIC REDRIVER SAS/SATA 1CH 28TQFN |
4,073 |
|
数据手册 |
- | 28-WFQFN Exposed Pad | Tape & Reel (TR) | Active | Buffer, ReDriver | SAS, SATA | - | - | - | 1 | 300ps | Input Equalization, Output Pre-Emphasis | - | 3V ~ 3.6V | 175mA | -40°C ~ 85°C | - | - | Surface Mount | 28-TQFN (3.5x5.5) |
