信号缓冲器、信号放大器、分配器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 应用 | 输入 | 输出 | 数据速率（最大值） | 通道数 | 延迟时间 | 信号调理 | 电容 - 输入 | 电压 - 电源 | 电流 - 电源 | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DS15BR401TVSXIC REDRIVER LVDS 4CH 48TQFP |
1,060 |
|
数据手册 |
- | 48-TQFP | Tape & Reel (TR) | Obsolete | Buffer, ReDriver | LVDS | CML, LVDS, LVPECL | LVDS | 2Gbps | 4 | 1.0ns | Output Pre-Emphasis | 3 pF | 3V ~ 3.6V | 175mA | -40°C ~ 85°C | - | - | Surface Mount | 48-TQFP (7x7) |
|
DS160PR421RUATIC INTERFACE |
2,776 |
|
数据手册 |
- | 42-WFQFN Exposed Pad | Tape & Reel (TR) | Active | Buffer, ReDriver | PCI Express | LVCMOS | Differential | 16Gbps | 4 | 80ps | Input Equalization, Output De-Emphasis | 1.5 pF | 3V ~ 3.6V | 145mA | -40°C ~ 85°C (TA) | - | - | Surface Mount | 42-WQFN (3.5x9) |
|
PI3EQX10908AZFEXIC REDRIVER 8CH 10GBPS 54TQFN |
1,703 |
|
数据手册 |
- | 54-WFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | Buffer, ReDriver | I2C | CML | CML | - | 1 | - | Input Equalization, Output De-Emphasis | - | 3.3V | - | -40°C ~ 85°C | - | - | Surface Mount | 54-TQFN (10x5.5) |
|
TDP0604IRNQTDP++ 6-GBPS HDMI 2.0 REDRIVER 40 |
3,185 |
|
数据手册 |
- | 40-WFQFN Exposed Pad | Tape & Reel (TR) | Active | Buffer, ReDriver | DisplayPort, HDMI | Differential | Differential | 6Gbps | 4 | 220ps | Input Equalization, Output Pre-Emphasis | 12 pF | 3V ~ 3.6V, 3.135V ~ 3.465V | 16µA | -40°C ~ 85°C (TA) | - | - | Surface Mount | 40-WQFN (6x4) |
|
|
TDP2004RNQT4-CHANNEL DISPLAYPORT 2.1 REDRIV |
1,817 |
|
数据手册 |
- | 40-WFQFN Exposed Pad | Bulk | Active | Buffer, ReDriver | DisplayPort | Differential | Differential | 20Gbps | 4 | 0.1ns | Input Equalization | 1.6 pF | 3V ~ 3.6V | - | 0°C ~ 70°C (TA) | - | - | Surface Mount | 40-WQFN (6x4) |
|
|
TDP2044RNQTFOUR-CHANNEL DISPLAYPORT (DP) 2. |
2,529 |
|
数据手册 |
- | 40-WFQFN Exposed Pad | Tape & Reel (TR) | Active | Buffer, ReDriver | DisplayPort | Differential | Differential | 20Gbps | 4 | 0.1ns | Input Equalization | 1.6 pF | 3V ~ 3.6V | - | 0°C ~ 70°C (TA) | - | - | Surface Mount | 40-WQFN (6x4) |
|
SN65LVDS109DBTG4IC MULTIPLEXER 1CH 38TSSOP |
2,196 |
|
数据手册 |
- | 38-TFSOP (0.173", 4.40mm Width) | Tube | Discontinued at Digi-Key | Buffer, Multiplexer | - | LVDS | LVDS | 400Mbps | 1 x 2:8 | 2.8ns | - | 5 pF | 3V ~ 3.6V | 46mA | -40°C ~ 85°C | - | - | Surface Mount | 38-TSSOP |
|
DS15BR401TVSIC REDRIVER LVDS 4CH 48TQFP |
2,396 |
|
数据手册 |
- | 48-TQFP | Tray | Obsolete | Buffer, ReDriver | LVDS | CML, LVDS, LVPECL | LVDS | 2Gbps | 4 | 1.0ns | Output Pre-Emphasis | 3 pF | 3V ~ 3.6V | 175mA | -40°C ~ 85°C | - | - | Surface Mount | 48-TQFP (7x7) |
|
|
TDP20MB421IRUARFOUR-CHANNEL DISPLAYPORT 2.1 RED |
4,389 |
|
数据手册 |
- | 42-WFQFN Exposed Pad | Tape & Reel (TR) | Active | Buffer, ReDriver | DisplayPort | Differential | Differential | 24Gbps | 4 | 90ps | Input Equalization | 1.6 pF | 3V ~ 3.6V | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 42-WQFN (3.5x9) |
|
DS100BR111ASQ/NOPBIC REDRIVER SATA 2CH 24WQFN |
1,758 |
|
数据手册 |
- | 24-WFQFN Exposed Pad | Tape & Reel (TR) | Active | Buffer, ReDriver | SATA | CML | CML | 10.3Gbps | 2 | - | Input Equalization, Output De-Emphasis | 10 pF | 2.375V ~ 3.6V | 50mA | -40°C ~ 85°C | - | - | Surface Mount | 24-WQFN (4x4) |
|
BA8274F-E2IC REDRIVER I2C 2CH 8SOP |
2,622 |
|
数据手册 |
- | 8-SOIC (0.173", 4.40mm Width) | Tape & Reel (TR) | Last Time Buy | Buffer, ReDriver | I2C | 2-Wire Bus | 2-Wire Bus | - | 2 | - | - | 3000 pF | 4.5V ~ 12V | 40mA | -40°C ~ 85°C | - | - | Surface Mount | 8-SOP |
|
DS25BR101TSD/NOPBIC REDRIVER LVDS 1CH 8WSON |
2,838 |
|
数据手册 |
- | 8-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Buffer, ReDriver | LVDS | CML, LVDS, LVPECL | LVDS | 3.125Gbps | 1 | 350ps | Input Equalization, Output Pre-Emphasis | 1.7 pF | 3V ~ 3.6V | 35mA | -40°C ~ 85°C | - | - | Surface Mount | 8-WSON (3x3) |
|
TUSB1146IRNQRTYPE-C USB 3.2 ALT-MODE REDRIVER |
1,322 |
|
数据手册 |
- | 40-WFQFN Exposed Pad | Tape & Reel (TR) | Active | ReDriver | USB | - | - | 10Gbps | - | - | Input Equalization | 10 pF | 3V ~ 3.6V | - | -40°C ~ 85°C | - | - | Surface Mount | 40-WQFN (6x4) |
|
P82B715TD,118IC REDRIVER I2C 1CH 400KHZ 8SO |
1,100 |
|
数据手册 |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Buffer, ReDriver | I2C | 2-Wire Bus | 2-Wire Bus | 400kHz | 1 | - | - | 3000 pF | 4.5V ~ 12V | 22mA | -40°C ~ 85°C | - | - | Surface Mount | 8-SO |
|

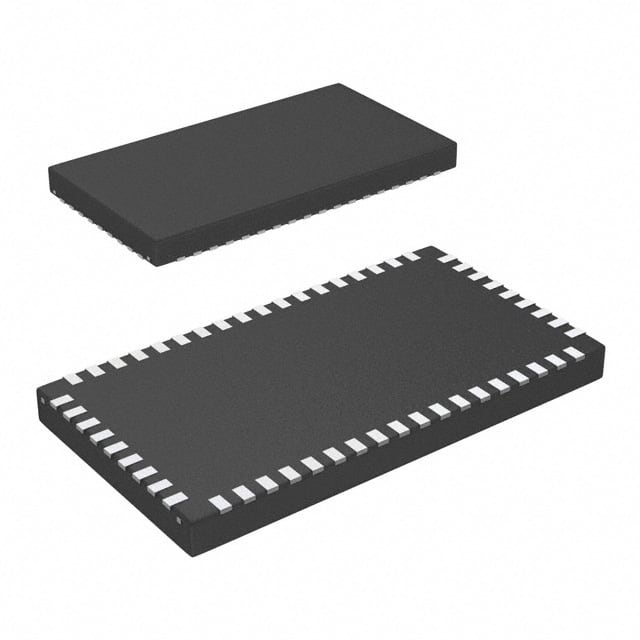

DS50PCI401SQ/NOPBIC REDRIVER PCIE 8CH 54WQFN |
4,535 |
|
数据手册 |
- | 54-WFQFN Exposed Pad | Tape & Reel (TR) | Active | Buffer, ReDriver | PCIe | CML | CML | 5Gbps | 8 | 200ps | Input Equalization, Output De-Emphasis | 10 pF | 2.375V ~ 2.625V | - | -10°C ~ 85°C | - | - | Surface Mount | 54-WQFN (10x5.5) |
|
PI3EQX10904ZHEXIC REDRIVER 4CHAN 10GBPS 42TQFN |
2,373 |
|
数据手册 |
- | 42-VFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | Buffer, ReDriver | Ethernet | CML | CML | 10Gbps | 4 | - | Input Equalization | - | 3.3V | - | -40°C ~ 85°C | - | - | Surface Mount | 42-TQFN (9x3.5) |
|
DS25BR204TSQX/NOPBIC MULTIPLEXER LVDS 1CH 40WQFN |
1,261 |
|
数据手册 |
- | 40-WFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | Buffer, Multiplexer | LVDS | CML, LVDS, LVPECL | LVDS | 3.125Gbps | 1 x 2:4 | 460ps | Input Equalization, Output Pre-Emphasis | 1.7 pF | 3V ~ 3.6V | 150mA | -40°C ~ 85°C | - | - | Surface Mount | 40-WQFN (6x6) |
|
PCA9646D,118IC BUS SWITCH 4CH 2WIRE 16SOIC |
2,185 |
|
数据手册 |
- | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Buffer, ReDriver | I2C | 2-Wire Bus | 2-Wire Bus | 1MHz | 4 | 100ns | - | - | 2.7V ~ 5.5V | 1µA | -40°C ~ 85°C | - | - | Surface Mount | 16-SO |
|
MAX9175EUB+TIC MULTIPLEXER LVDS 1CH 10UMAX |
2,143 |
|
数据手册 |
- | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | Buffer, Multiplexer | LVDS | LVDS | LVDS | 800Mbps | 1 x 1:2 | 2.39ns | - | 4.5 pF | 3V ~ 3.6V | 25mA | -40°C ~ 85°C | - | - | Surface Mount | 10-uMAX/uSOP |
|
DS08MB200TSQX/NOPBIC MULTIPLEXER LVDS 4CH 48WQFN |
3,163 |
|
数据手册 |
- | 48-WFQFN Exposed Pad | Tape & Reel (TR) | Active | Buffer, Multiplexer | LVDS | BLVDS, CML, LVDS, LVPECL | LVDS | 800Mbps | 4 x 1:2, 2:1 | 1.0ns | - | 3.5 pF | 3V ~ 3.6V | 225mA | -40°C ~ 85°C | - | - | Surface Mount | 48-WQFN (7x7) |
