模拟开关、复用器、解复用器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 开关电路 | 多路复用器/解复用器电路 | 电路数量 | 导通状态电阻（最大） | 通道与通道匹配（ΔRon） | 电压 - 供应，单（V+） | 电压 - 供应，双（V±） | 开关时间（Ton, Toff）（最大） | -3db 带宽 | 电荷注入 | 通道电容（CS(off), CD(off)） | 漏电流（IS(off)）（最大） | 串扰 | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TMUX6222DGSR36-V, LATCH-UP IMMUNE, 1:1 (SPST |
1,630 |
|
数据手册 |
- | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 2 | 3.2Ohm | 100mOhm | 4.5V ~ 36V | ±4.5V ~ 18V | 180ns, 180ns | 45MHz | -13pC | 26pF, 35pF | 250pA | -93dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 10-VSSOP |
|
DG411DVZ-TIC SW SPST-NCX4 35OHM 16TSSOP |
1,674 |
|
数据手册 |
- | Tape & Reel (TR) | Active | SPST - NC | 1:1 | 4 | 35Ohm | - | 5V ~ 44V | ±5V ~ 20V | 175ns, 145ns | - | 5pC | 9pF, 9pF | 100pA | -85dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
DG441DYZ-TIC SWITCH SPST-NCX4 85OHM 16SOIC |
4,151 |
|
数据手册 |
- | Tape & Reel (TR) | Active | SPST - NC | 1:1 | 4 | 85Ohm | - | 5V ~ 34V | ±5V ~ 22V | 250ns, 120ns | - | -1pC | 4pF, 4pF | 500pA | -100dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|
MAX4599EUT+TIC SWITCH SPDT X 1 60OHM SOT6 |
7,349 |
|
数据手册 |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 60Ohm | 200mOhm | 2V ~ 5.5V | - | 30ns, 25ns | 200MHz | 3pC | 8pF, 8pF | 500pA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-6 |
|
|
DG442DYZIC SWITCH SPST-NOX4 85OHM 16SOIC |
919 |
|
数据手册 |
- | Tube | Active | SPST - NO | 1:1 | 4 | 85Ohm | - | 5V ~ 34V | ±5V ~ 22V | 250ns, 210ns | - | -1pC | 4pF, 4pF | 500pA | -100dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|
|
DG453EQ-T1-E3IC SW SPST-NO/NC 5.3OHM 16TSSOP |
2,090 |
|
数据手册 |
- | Tape & Reel (TR) | Active | SPST - NO/NC | 1:1 | 4 | 5.3Ohm | 120mOhm | 12V ~ 36V | ±5V ~ 15V | 118ns, 97ns | - | 22pC | 31pf, 34pF | 500pA | -85dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-TSSOP |
|

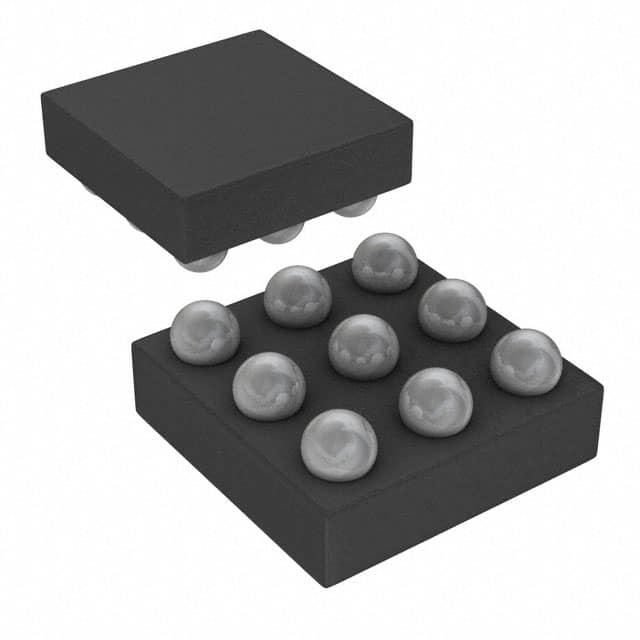

MAX14589EEWL+TIC SWITCH DPDT X 1 380MOHM 9WLP |
6,919 |
|
数据手册 |
- | Tape & Reel (TR) | Active | DPDT | 2:2 | 1 | 380mOhm | 5mOhm | 1.6V ~ 5.5V | - | 10ms, 2.25ms | 200MHz | - | 25pF | 400nA | -80dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 9-WLP (1.26x1.26) |
|
ADG839YKSZ-REELIC SWITCH SPDTX1 500MOHM SC70-6 |
21,399 |
|
数据手册 |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 500mOhm | 40mOhm | 1.65V ~ 3.6V | - | 16ns, 8.5ns | 25MHz | 70pC | 74pF | 200pA (Typ) | -57dB @ 100kHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | SC-70-6 |
|
ISL43210AIHZ-T7AIC SWITCH SPDT X 1 20OHM 6SOT |
3,610 |
|
数据手册 |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 20Ohm | 800mOhm | 2.7V ~ 15V | - | 25ns, 17ns (Typ) | - | 5pC | 8pF, 8pF | 3nA | -105dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-SOT |
|
MAX4541CSA+IC SWITCH SPST-NOX2 60OHM 8SOIC |
324 |
|
数据手册 |
- | Tube | Active | SPST - NO | 1:1 | 2 | 60Ohm | 800mOhm | 2.7V ~ 12V | - | 100ns, 75ns | - | 1pC | 8pF, 8pF | 100pA | -90dB @ 1MHz | 0°C ~ 70°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
MAX4522ESE+IC SW SPST-NOX4 100OHM 16SOIC |
5,694 |
|
数据手册 |
- | Tube | Active | SPST - NO | 1:1 | 4 | 100Ohm | 1Ohm | 2V ~ 12V | ±2V ~ 6V | 80ns, 30ns | - | 1pC | 2pF, 2pF | 1nA | -90dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|
|
DG403DY-E3IC SW SPST-NO/NCX2 45OHM 16SOIC |
157 |
|
数据手册 |
- | Tube | Active | SPST - NO/NC | 1:1 | 2 | 45Ohm | 3Ohm | 13V ~ 36V | ±7V ~ 22V | 150ns, 100ns | - | 60pC | 12pF, 12pF | 500pA | -90dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|
|
DG412DVZIC SW SPST-NOX4 35OHM 16TSSOP |
3,040 |
|
数据手册 |
- | Tube | Active | SPST - NO | 1:1 | 4 | 35Ohm | - | 5V ~ 44V | ±5V ~ 20V | 175ns, 145ns | - | 5pC | 9pF, 9pF | 100pA | -85dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
|
TMUX7219RQXRIC SW SPDT-NO/NCX1 2.8OHM 8WSON |
606 |
|
数据手册 |
- | Tape & Reel (TR) | Active | SPDT - NO/NC | 2:1 | 1 | 2.8Ohm | 100mOhm (Typ) | 4.5V ~ 44V | - | 175ns, 180ns | 40MHz | -16pC | 34pF, 48pF | 5nA (Max) | -106dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-WSON (3x2) |
|
ADG736LBRMZIC SWITCH SPDT X 2 4OHM 10MSOP |
241 |
|
数据手册 |
- | Tube | Active | SPDT | 2:1 | 2 | 4Ohm | 100mOhm | 1.8V ~ 5.5V | - | 12ns, 5ns (Typ) | 200MHz | - | 9pF | 10pA (Typ) | -82dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 10-MSOP |
|
ADG719BRMZ-REELIC SWITCH SPDT X 1 4OHM 8MSOP |
19,187 |
|
数据手册 |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 4Ohm | - | 1.8V ~ 5.5V | - | 7ns, 3ns (Typ) | 200MHz | - | 7pF | 250pA | -82dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-MSOP |
|
|
ADG719BRMZ-REEL7IC SWITCH SPDT X 1 4OHM 8MSOP |
2,629 |
|
数据手册 |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 4Ohm | - | 1.8V ~ 5.5V | - | 7ns, 3ns (Typ) | 200MHz | - | 7pF | 250pA | -82dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-MSOP |
|
|
ADG723BRMZ-REELIC SW SPST-NO/NCX2 4OHM 8MSOP |
2,511 |
|
数据手册 |
- | Tape & Reel (TR) | Active | SPST - NO/NC | 1:1 | 2 | 4Ohm | 300mOhm | 1.8V ~ 5.5V | - | 14ns, 6ns (Typ) | 200MHz | 2pC | 7pF, 7pF | 250pA | -97dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-MSOP |
|
|
DG403BDY-T1-E3IC SW SPST-NO/NCX4 45OHM 16SOIC |
2,287 |
|
数据手册 |
- | Tape & Reel (TR) | Last Time Buy | SPST - NO/NC | 1:1 | 4 | 45Ohm | - | 13V ~ 36V | ±7V ~ 22V | 150ns, 100ns | - | 60pC | 12pF, 12pF | 500pA | -94.8dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|
|
MAX4544ESA+IC SWITCH SPDT X 1 60OHM 8SOIC |
2,064 |
|
数据手册 |
- | Tube | Active | SPDT | 2:1 | 1 | 60Ohm | 800mOhm | 2.7V ~ 12V | - | 100ns, 75ns | - | 1pC | 8pF, 8pF | 100pA | -90dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
