模拟开关、复用器、解复用器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 开关电路 | 多路复用器/解复用器电路 | 电路数量 | 导通状态电阻（最大） | 通道与通道匹配（ΔRon） | 电压 - 供应，单（V+） | 电压 - 供应，双（V±） | 开关时间（Ton, Toff）（最大） | -3db 带宽 | 电荷注入 | 通道电容（CS(off), CD(off)） | 漏电流（IS(off)）（最大） | 串扰 | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

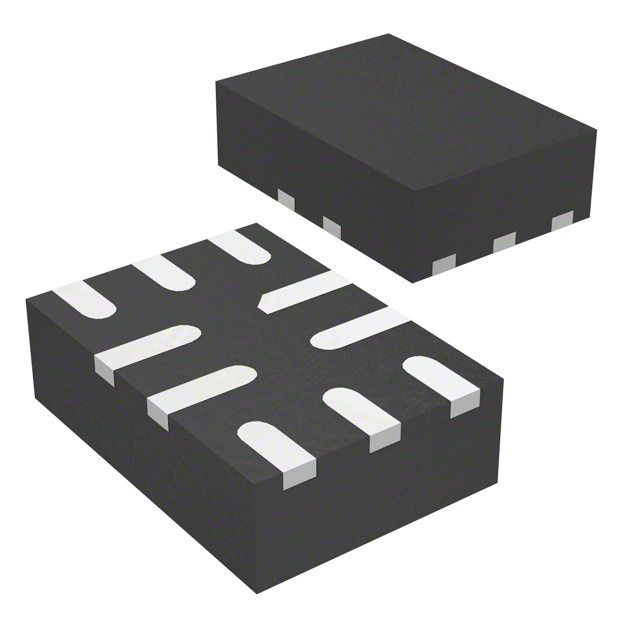

AOZ6236QIIC SWITCH SPDT X 2 400MOHM 10QFN |
2,114 |
|
数据手册 |
- | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 2 | 400mOhm | 20mOhm | 1.65V ~ 4.3V | - | 60ns, 35ns | 50MHz | 40pC | 15pF | 50nA | -70dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-QFN (1.8x1.4) |
|
|
AOZ6236QI#AIC SWITCH SPDT X 2 400MOHM 10QFN |
4,723 |
|
数据手册 |
- | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 2 | 400mOhm | 20mOhm | 1.65V ~ 4.3V | - | 60ns, 35ns | 50MHz | 40pC | 15pF | 50nA | -70dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-QFN (1.8x1.4) |
|
AOZ6237QT#AIC SWITCH SPDTX2 400MOHM 10TQFN |
4,274 |
|
数据手册 |
- | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 2 | 400mOhm | 20mOhm | 1.65V ~ 4.3V | - | 60ns, 35ns | 50MHz | 40pC | 15pF | 50nA | -70dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-TQFN (1.4x1.8) |
|
|
AOZ6238QT#AIC SWITCH SPDTX2 400MOHM 10TQFN |
2,200 |
|
数据手册 |
- | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 2 | 400mOhm | 20mOhm | 1.65V ~ 4.3V | - | 60ns, 35ns | 50MHz | 30pC | 15pF | 50nA | -70dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-TQFN (1.4x1.8) |
|
MAX20336ENT+IC SWITCH DPST X 1 330MOHM 6WLP |
1,179 |
|
数据手册 |
Beyond-the-Rails™ | Strip | Active | DPST | 1:1 | 1 | 330mOhm | 3mOhm | 1.65V ~ 5.5V | - | 1.7ms, 13.5ms (Typ) | 270MHz | - | 14pF | 100nA | -85dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-WLP (1.31x0.83) |
|
|
DG408C/DIC MUX 8:1 100OHM DIE |
2,295 |
|
数据手册 |
- | Tube | Obsolete | - | 8:1 | 1 | 100Ohm | 1.5Ohm | 5V ~ 30V | ±5V ~ 20V | 150ns, 150ns | - | 2pC | 3pF, 26pF | 500pA | -92dB @ 100kHz | 0°C ~ 70°C (TA) | - | - | Surface Mount | Die |
|
IH5043MJE/883BIC SWITCH SPDT X 2 75OHM 16CDIP |
2,937 |
|
数据手册 |
- | Bulk | Obsolete | SPDT | 2:1 | 2 | 75Ohm | 3Ohm | - | ±4.5V ~ 18V | 400ns, 200ns | - | - | - | 1nA | - | -55°C ~ 125°C (TA) | - | - | Through Hole | 16-CDIP |
|
|
MAX303C/DIC SWITCH SPDT X 2 35OHM DIE |
2,803 |
|
数据手册 |
- | Tube | Obsolete | SPDT | 2:1 | 2 | 35Ohm | 500mOhm | 10V ~ 30V | ±4.5V ~ 20V | 150ns, 100ns | - | 10pC | 12pF, 12pF | 500pA | -90dB @ 1MHz | 0°C ~ 70°C (TA) | - | - | Surface Mount | Die |
|
|
MAX306C/DIC MUX 16:1 100OHM DIE |
4,204 |
|
数据手册 |
- | Tube | Obsolete | - | 16:1 | 1 | 100Ohm | 1.5Ohm | 5V ~ 30V | ±4.5V ~ 20V | 200ns, 150ns | - | 2pC | 8pF, 130pF | 500pA | -92dB @ 100kHz | 0°C ~ 70°C (TA) | - | - | Surface Mount | Die |
|
MAX349CWN+IC MUX 8:1 100OHM 18SOIC |
3,612 |
|
数据手册 |
- | Tube | Obsolete | - | 8:1 | 1 | 100Ohm | 16Ohm (Max) | 2.7V ~ 16V | ±2.7V ~ 8V | 275ns, 150ns | - | 1pC | 2pF, 2pF | 100pA | -90dB @ 100kHz | 0°C ~ 70°C (TA) | - | - | Surface Mount | 18-SOIC |
|
|
DG201AC/DIC INTEGRATED CIRCUIT |
4,449 |
|
数据手册 |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DG201AESE+TIC INTEGRATED CIRCUIT |
2,411 |
|
数据手册 |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DG307ABKIC INTEGRATED CIRCUIT |
1,707 |
|
数据手册 |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DG411EUE+IC INTEGRATED CIRCUIT |
4,301 |
|
数据手册 |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MAX349CWN+TIC INTEGRATED CIRCUIT |
3,387 |
|
数据手册 |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MAX391EPE+IC INTEGRATED CIRCUIT |
3,031 |
|
数据手册 |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MAX392EPE+IC INTEGRATED CIRCUIT |
3,997 |
|
数据手册 |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MAX398EPE+IC INTEGRATED CIRCUIT |
1,890 |
|
数据手册 |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MAX4066EPD+IC INTEGRATED CIRCUIT |
4,459 |
|
数据手册 |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MAX4516EPA+IC INTEGRATED CIRCUIT |
3,626 |
|
数据手册 |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
