模拟开关、复用器、解复用器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 开关电路 | 多路复用器/解复用器电路 | 电路数量 | 导通状态电阻（最大） | 通道与通道匹配（ΔRon） | 电压 - 供应，单（V+） | 电压 - 供应，双（V±） | 开关时间（Ton, Toff）（最大） | -3db 带宽 | 电荷注入 | 通道电容（CS(off), CD(off)） | 漏电流（IS(off)）（最大） | 串扰 | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7705301EAIC SW SPST-NCX4 175OHM 16CDIP |
4,115 |
|
数据手册 |
- | Tube | Active | SPST - NC | 1:1 | 4 | 175Ohm | - | - | ±4.5V ~ 18V | 600ns, 450ns | - | 20pC | 5pF, 5pF | 1nA | -90dB @ 100kHz | -55°C ~ 125°C (TA) | - | - | Through Hole | 16-CDIP |
|
|
7705302EAIC SWITCH SPST-NCX4 50OHM 16CDIP |
4,466 |
|
数据手册 |
- | Tube | Active | SPST - NC | 1:1 | 4 | 50Ohm | - | 12V ~ 20V | ±5V ~ 20V | 50ns, 50ns | - | 10pC | 10pF, 10pF | 1nA | -90dB @ 100kHz | -55°C ~ 125°C (TA) | - | - | Through Hole | 16-CDIP |
|
8100603EAIC SW ANLG CMOS SPDT |
4,989 |
|
数据手册 |
- | Tube | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
8100612EAIC SW ANLG CMOS SPDT |
2,544 |
|
数据手册 |
- | Tube | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
MAX14560EWC+TIC ANALOG SWITCH 12WLP |
4,756 |
|
数据手册 |
* | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MAX3997ETM+IC MULTIPLEXER 4CH 48TQFN |
3,146 |
|
数据手册 |
* | Tube | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
NLAS5223CLMUTAGIC SWITCH SPDTX2 350MOHM 10UQFN |
4,464 |
|
数据手册 |
- | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 2 | 350mOhm | 50mOhm (Max) | 1.65V ~ 4.5V | - | 50ns, 30ns | 24MHz | 38pC | 60pF | 5nA | -70dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-UQFN (1.4x1.8) |
|
MP2735DQG-LF-PIC SWITCH SPDT X 2 450MOHM 10QFN |
3,884 |
|
数据手册 |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 2 | 450mOhm | 10mOhm | 1.65V ~ 5.5V | - | 36ns, 30ns | 50MHz | - | 55pF | 40nA | -70dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-QFN (1.4x1.8) |
|
|
MP2735DQG-LF-ZIC SWITCH SPDT X 2 450MOHM 10QFN |
1,026 |
|
数据手册 |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 2 | 450mOhm | 10mOhm | 1.65V ~ 5.5V | - | 36ns, 30ns | 50MHz | - | 55pF | 40nA | -70dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-QFN (1.4x1.8) |
|
MAX14803CCM+TG5EIC SW SPST-NOX16 48OHM 48LQFP |
4,481 |
|
数据手册 |
- | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 16 | 48Ohm | 2.4Ohm | 40V ~ 250V | ±160V | 3.5µs, 3.5µs | 20MHz | 820pC | 11pF | 2µA | -80dB @ 5MHz | 0°C ~ 70°C (TA) | - | - | Surface Mount | 48-LQFP (7x7) |
|

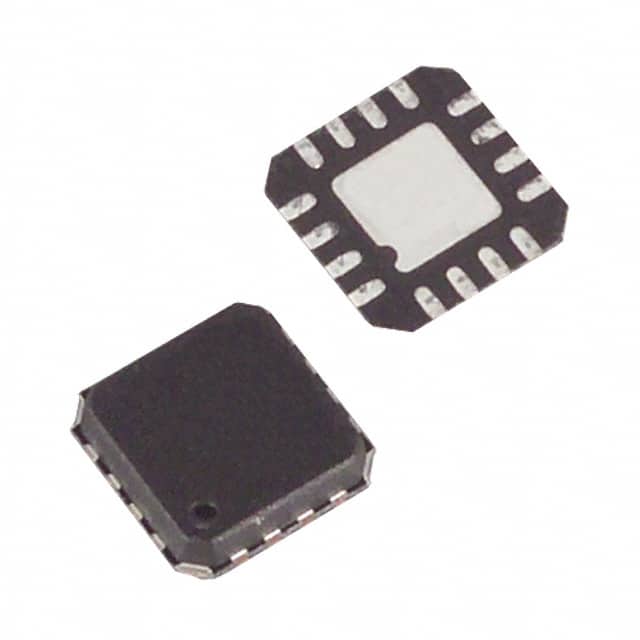

MAX4523EGE+IC SW QUAD ANLG LV SPST 16QFN |
2,326 |
|
数据手册 |
* | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
DG445CY+IC SWITCH SPST-NOX4 85OHM 16SOIC |
1,188 |
|
数据手册 |
- | Tube | Obsolete | SPST - NO | 1:1 | 4 | 85Ohm | 4Ohm (Max) | 10V ~ 30V | ±4.5V ~ 20V | 250ns, 170ns | - | 5pC | 4pF, 4pF | 500pA | -100dB @ 1MHz | 0°C ~ 70°C (TA) | - | - | Surface Mount | 16-SOIC |
|
MAX364EPE+IC SWITCH SPST-NCX4 85OHM 16DIP |
1,962 |
|
数据手册 |
- | Tube | Obsolete | SPST - NC | 1:1 | 4 | 85Ohm | 2Ohm (Max) | 10V ~ 30V | ±4.5V ~ 20V | 250ns, 120ns | - | 5pC | 4pF, 4pF | 500pA | -100dB @ 1MHz | -40°C ~ 85°C | - | - | Through Hole | 16-PDIP |
|
|
MAX365EPE+IC SWITCH SPST-NOX4 85OHM 16DIP |
1,247 |
|
数据手册 |
- | Tube | Obsolete | SPST - NO | 1:1 | 4 | 85Ohm | 2Ohm (Max) | 10V ~ 30V | ±4.5V ~ 20V | 250ns, 170ns | - | 5pC | 4pF, 4pF | 500pA | -100dB @ 1MHz | -40°C ~ 85°C | - | - | Through Hole | 16-PDIP |
|
MAX4610EPD+IC SWITCH SPST-NOX4 100OHM 14DIP |
3,347 |
|
数据手册 |
- | Tube | Obsolete | SPST - NO | 1:1 | 4 | 100Ohm | 1Ohm (Typ) | 2V ~ 12V | - | 65ns, 28ns | 300MHz | 1pC | 16pF, 16pF | 100pA | -80dB @ 1MHz | -40°C ~ 85°C | - | - | Through Hole | 14-PDIP |
|
|
MAX4612EPD+IC SW SPST-NO/NCX4 100OHM 14DIP |
3,998 |
|
数据手册 |
- | Tube | Obsolete | SPST - NO/NC | 1:1 | 4 | 100Ohm | 1Ohm (Typ) | 2V ~ 12V | - | 65ns, 28ns | 300MHz | 1pC | 16pF, 16pF | 100pA | -80dB @ 1MHz | -40°C ~ 85°C | - | - | Through Hole | 14-PDIP |
|
|
MAX4712CPE+IC SWITCH SPST-NOX4 25OHM 16DIP |
4,949 |
|
数据手册 |
- | Tube | Obsolete | SPST - NO | 1:1 | 4 | 25Ohm | 200mOhm (Typ) | 2.7V ~ 11V | ±2.7V ~ 5.5V | 125ns, 80ns | - | 25pC | 8pF, 8pF | 500pA | -87dB @ 1MHz | 0°C ~ 70°C | - | - | Through Hole | 16-PDIP |
|
|
DG3535DB-T1-E1IC SW SPDTX2 400MOHM 10MICRO FT |
3,750 |
|
数据手册 |
- | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 2 | 400mOhm | 50mOhm (Max) | 2.7V ~ 3.3V | - | 82ns, 73ns | - | 21pC | 145pF | 2nA | -69dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-Micro Foot® (2x1.5) |
|
CBTV24DD12ETYIC SWITCH SPDT X 12 9OHM 48TFBGA |
2,902 |
|
数据手册 |
- | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 12 | 9Ohm | 400mOhm | 1.62V ~ 3.63V | - | - | 7.4GHz | - | - | - | - | -10°C ~ 85°C (TA) | - | - | Surface Mount | 48-TFBGA (3x8) |
|
PS320CUAEIC SWITCH SPST-NOX2 35OHM 8MSOP |
2,263 |
|
数据手册 |
- | Tube | Obsolete | SPST - NO | 1:1 | 2 | 35Ohm | 300mOhm | - | ±2.7V ~ 8V | 150ns, 100ns | - | 8pC | 9pF, 9pF | 100pA | -85dB @ 1MHz | 0°C ~ 70°C (TA) | - | - | Surface Mount | 8-MSOP |
