模拟开关、复用器、解复用器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 开关电路 | 多路复用器/解复用器电路 | 电路数量 | 导通状态电阻（最大） | 通道与通道匹配（ΔRon） | 电压 - 供应，单（V+） | 电压 - 供应，双（V±） | 开关时间（Ton, Toff）（最大） | -3db 带宽 | 电荷注入 | 通道电容（CS(off), CD(off)） | 漏电流（IS(off)）（最大） | 串扰 | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PI3A268CZMEXIC SWITCH SPDTX2 400MOHM 10UQFN |
6,835 |
|
数据手册 |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 2 | 400mOhm (Typ) | 40mOhm | 1.65V ~ 4.3V | - | 50ns, 50ns | 85MHz | 52pC | 21pF | 1µA | -80dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-UQFN (1.8x1.4) |
|
DG201BDY-E3IC SWITCH SPST-NCX4 85OHM 16SOIC |
7,902 |
|
数据手册 |
- | Tube | Active | SPST - NC | 1:1 | 4 | 85Ohm | 2Ohm | 4.5V ~ 25V | ±4.5V ~ 22V | 300ns, 200ns | - | 1pC | 5pF, 5pF | 500pA | -95dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|
TS12A12511DGKRIC SWITCH SPDT X 1 5OHM 8VSSOP |
2,851 |
|
数据手册 |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 5Ohm (Typ) | 1Ohm | 2.7V ~ 12V | ±2.7V ~ 6V | 95ns, 50ns | 93MHz | 26pC | 14pF | 1nA | -70dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-VSSOP |
|
TS12A12511DRJRIC SWITCH SPDT X 1 5OHM 8SON |
1,165 |
|
数据手册 |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 5Ohm (Typ) | 1Ohm | 2.7V ~ 12V | ±2.7V ~ 6V | 95ns, 50ns | 93MHz | 26pC | 14pF | 1nA | -70dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SON (4x4) |
|
TS3A27518EIPWRQ1IC SWITCH SPDTX6 6.2OHM 24TSSOP |
7,048 |
|
数据手册 |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 6 | 6.2Ohm | 300mOhm | 1.65V ~ 3.6V | - | 59ns, 60.6ns | 240MHz | 0.81pC | 13pF, 8.5pF | 1µA | -62dB @ 10MHz | -40°C ~ 85°C (TA) | Automotive | AEC-Q100 | Surface Mount | 24-TSSOP |
|
TS3A27518ETRTWRQ1IC SWITCH SPDT X 6 6.2OHM 24WQFN |
26,070 |
|
数据手册 |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 6 | 6.2Ohm | 300mOhm | 1.65V ~ 3.6V | - | 59ns, 60.6ns | 240MHz | 0.81pC | 13pF, 8.5pF | 1µA | -62dB @ 10MHz | -40°C ~ 105°C (TA) | Automotive | AEC-Q100 | Surface Mount | 24-WQFN (4x4) |
|
|
TS3A27518EIRTWRQ1IC SWITCH SPDT X 6 6.2OHM 24WQFN |
9,005 |
|
数据手册 |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 6 | 6.2Ohm | 300mOhm | 1.65V ~ 3.6V | - | 59ns, 60.6ns | 240MHz | 0.81pC | 13pF, 8.5pF | 1µA | -62dB @ 10MHz | -40°C ~ 85°C (TA) | Automotive | AEC-Q100 | Surface Mount | 24-WQFN (4x4) |
|
DG9431EDV-T1-GE3IC SWITCH SPDT X 1 25OHM 6TSOP |
2,989 |
|
数据手册 |
- | Tape & Reel (TR) | Active | SPDT | 1:2 | 1 | 25Ohm | 400mOhm | 2.7V ~ 5.5V | - | 75ns, 50ns | - | -0.78pC | 3.8pF | 100pA | -108dB @ 1MHz | -40°C ~ 85°C | - | - | Surface Mount | 6-TSOP |
|

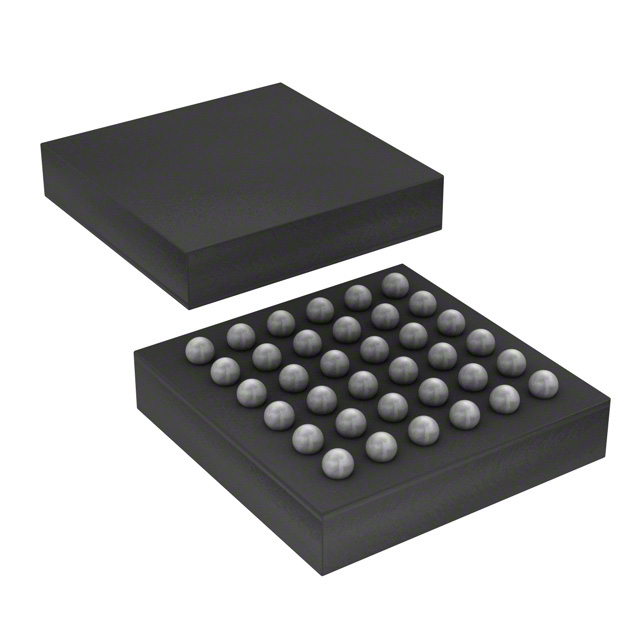

TS5MP645YFPRIC SWITCH SPDTX10 6.5OHM 36DSBGA |
3,286 |
|
数据手册 |
- | Tape & Reel (TR) | Not For New Designs | SPDT | 2:1 | 10 | 6.5Ohm | 100mOhm | 1.65V ~ 5.5V | - | - | 1.5GHz | - | 1.5pF | 500nA | -40dB @ 1.25GHz | -40°C ~ 85°C | - | - | Surface Mount | 36-DSBGA |
|
TMUX1119DBVRIC SWITCH SPDT X 1 4OHM SOT23-6 |
5,641 |
|
数据手册 |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 4Ohm | 130mOhm | 1.08V ~ 5.5V | - | - | 250MHz | -6pC | 6pF | 80pA | -45dB @ 10MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-23-6 |
|
|
TMUX1121DGKRIC SWITCH SPST X 2 4OHM 8VSSOP |
3,445 |
|
数据手册 |
- | Tape & Reel (TR) | Active | SPST | 1:1 | 2 | 4Ohm | 130mOhm | 1.08V ~ 5.5V | - | - | 300MHz | 1.5pC | 6pF, 10pF | 80pA | -90dB @ 10MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-VSSOP |
|
|
TMUX1122DGKRIC SWITCH SPST X 2 4OHM 8VSSOP |
2,222 |
|
数据手册 |
- | Tape & Reel (TR) | Active | SPST | 1:1 | 2 | 4Ohm | 130mOhm | 1.08V ~ 5.5V | - | - | 300MHz | 1.5pC | 6pF, 10pF | 80pA | -90dB @ 10MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-VSSOP |
|
|
TMUX1123DGKRIC SWITCH SPST X 2 4OHM 8VSSOP |
1,393 |
|
数据手册 |
- | Tape & Reel (TR) | Active | SPST | 1:1 | 2 | 4Ohm | 130mOhm | 1.08V ~ 5.5V | - | - | 300MHz | 1.5pC | 6pF, 10pF | 80pA | -90dB @ 10MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-VSSOP |
|
|
DG211BDY-T1-E3IC SWITCH SPST-NCX4 85OHM 16SOIC |
11,225 |
|
数据手册 |
- | Tape & Reel (TR) | Active | SPST - NC | 1:1 | 4 | 85Ohm | 2Ohm | 4.5V ~ 25V | ±4.5V ~ 22V | 300ns, 200ns | - | 1pC | 5pF, 5pF | 500pA | -95dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|
PI3USB4000AZUAEXIC MUX 1:2 8OHM 10UQFN |
614 |
|
数据手册 |
- | Tape & Reel (TR) | Active | DPDT | 1:2 | 1 | 8Ohm | 500mOhm | 2.7V ~ 6V | - | 100µs, 50ns (Typ) | 1GHz | - | 7pF, 9pF | 1µA | -35dB @ 240MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-UQFN (1.5x2) |
|
TS12A44514PWRIC SW SPST-NOX4 10OHM 14TSSOP |
6,271 |
|
数据手册 |
- | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 4 | 10Ohm | 2.5Ohm (Max) | 2.7V ~ 12V | - | 75ns, 45ns | 530MHz | -10.5pC | 8pF, 8pF | 1nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 14-TSSOP |
|
DG418DY-T1-E3IC SWITCH SPST-NOX1 35OHM 8SOIC |
1,339 |
|
数据手册 |
- | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 1 | 35Ohm | - | 12V | ±15V | 175ns, 145ns | - | 60pC | 8pF, 8pF | 250pA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
DG419DY-E3IC SWITCH SPDT X 1 35OHM 8SOIC |
809 |
|
数据手册 |
- | Tube | Active | SPDT | 2:1 | 1 | 35Ohm | - | 12V | ±15V | 175ns, 145ns | - | 60pC | 8pF, 8pF | 250pA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
DG444DY-T1-E3IC SWITCH SPST-NCX4 85OHM 16SOIC |
11,458 |
|
数据手册 |
- | Tape & Reel (TR) | Active | SPST - NC | 1:1 | 4 | 85Ohm | - | 5V ~ 36V | ±5V ~ 20V | 250ns, 140ns | - | -1pC | 4pF, 4pF | 500pA | -100dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|
|
DG212BDY-T1-E3IC SWITCH SPST-NOX4 85OHM 16SOIC |
5,135 |
|
数据手册 |
- | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 4 | 85Ohm | 2Ohm | 4.5V ~ 25V | ±4.5V ~ 22V | 300ns, 200ns | - | 1pC | 5pF, 5pF | 500pA | -95dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
