模拟开关、复用器、解复用器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 开关电路 | 多路复用器/解复用器电路 | 电路数量 | 导通状态电阻（最大） | 通道与通道匹配（ΔRon） | 电压 - 供应，单（V+） | 电压 - 供应，双（V±） | 开关时间（Ton, Toff）（最大） | -3db 带宽 | 电荷注入 | 通道电容（CS(off), CD(off)） | 漏电流（IS(off)）（最大） | 串扰 | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAX4800ACQI+IC SWITCH SPST-NOX8 38OHM 28PLCC |
1,774 |
|
数据手册 |
- | Tube | Obsolete | SPST - NO | 1:1 | 8 | 38Ohm | 1.9Ohm | 2.7V ~ 6V | - | 5µs, 5µs | - | - | 18pF | 2µA | -80dB @ 5MHz | 0°C ~ 70°C (TA) | - | - | Surface Mount | 28-PLCC (11.51x11.51) |
|
MAX4504CSA+IC SWITCH SPST 8SOIC |
3,101 |
|
数据手册 |
* | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
MAX4800ACCM+TIC SWITCH SPST-NOX8 38OHM 48LQFP |
1,185 |
|
数据手册 |
- | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 8 | 38Ohm | 1.9Ohm | 2.7V ~ 6V | - | 5µs, 5µs | - | - | 18pF | 2µA | -80dB @ 5MHz | 0°C ~ 70°C (TA) | - | - | Surface Mount | 48-LQFP (7x7) |
|
MAX4993EVB+TIC SWITCH DPDTX1 500MOHM 10UTQFN |
3,622 |
|
数据手册 |
- | Tape & Reel (TR) | Active | DPDT | 2:2 | 1 | 500mOhm | 3mOhm | 1.8V ~ 5.5V | - | 630ms, 2µs | - | - | 45pF | 100nA | -110dB @ 20kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-UTQFN (1.4x1.8) |
|

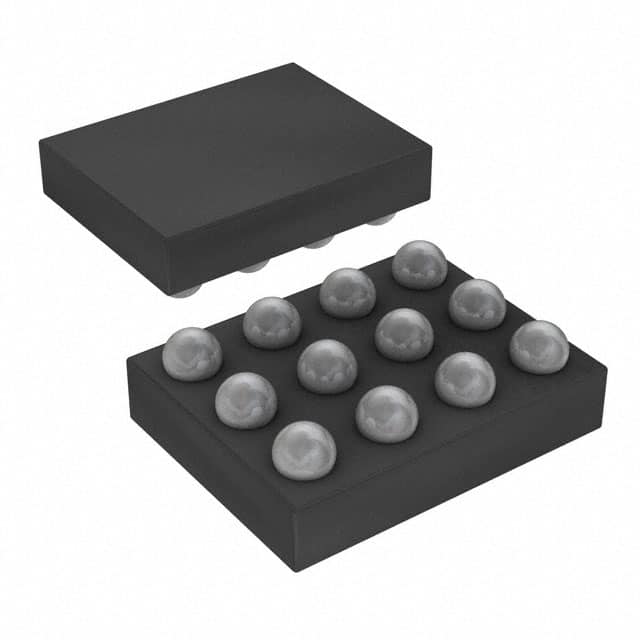

MAX14505EWC+TIC SWITCH SPDT X 2 500MOHM 12WLP |
1,557 |
|
数据手册 |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 2 | 500mOhm | 10mOhm | 2.3V ~ 5.5V | - | 60ms, 3µs | - | - | 65pF | 50nA | -90dB @ 20kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 12-WLP (2.14x1.56) |
|
FSA2156P6IC SWITCH SPST-NOX1 360MOHM SC88 |
3,917 |
|
数据手册 |
- | Tape & Reel (TR) | Obsolete | SPST - NO | 1:1 | 1 | 360mOhm (Typ) | - | 1.65V ~ 4.3V | - | 55ns, 65ns | 80MHz | 6pC | 38pF | 10nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SC-88 (SC-70-6) |
|
FSA2467UMXIC SWITCH DPDT X 2 400OHM 16UMLP |
1,918 |
|
数据手册 |
- | Tape & Reel (TR) | Obsolete | DPDT | 2:2 | 2 | 400Ohm (Typ) | 40mOhm (Min) | 1.65V ~ 4.3V | - | 50ns, 32ns | 85MHz | 15pC | 32pF | 10nA | -75dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-UMLP (1.8x2.6) |
|
NLAS5113DFT2GIC SWITCH SPST-NOX1 1.3OHM SC88 |
4,837 |
|
数据手册 |
- | Tape & Reel (TR) | Obsolete | SPST - NO | 1:1 | 1 | 1.3Ohm | - | 1.65V ~ 4.5V | - | 7ns, 4.5ns | 457MHz | - | 14pF | 100nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SC-88/SC70-6/SOT-363 |
|
HEF4051BT,013IC MUX 8:1 155OHM 16SO |
1,431 |
|
数据手册 |
- | Tape & Reel (TR) | Discontinued at Digi-Key | - | 8:1 | 1 | 155Ohm | 5Ohm | 3V ~ 15V | - | - | 70MHz | - | 7.5pF | 200nA | -50dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-SO |
|
HI3-0518-5ZIC MUX 8:1 750OHM 18DIP |
3,645 |
|
数据手册 |
- | Tube | Obsolete | - | 8:1 | 1 | 750Ohm | - | - | ±15V | 175ns, 175ns | - | - | 5pF, 10pF (Max) | 10pA (Typ) | - | 0°C ~ 75°C (TA) | - | - | Through Hole | 18-PDIP |
|
DG407DJZIC MUX DUAL 8:1 100OHM 28DIP |
4,931 |
|
数据手册 |
- | Tube | Obsolete | - | 8:1 | 2 | 100Ohm | 5Ohm | 5V ~ 34V | ±5V ~ 20V | 200ns, 150ns | - | 40pC | 8pF, 80pF | 500pA | - | -40°C ~ 85°C (TA) | - | - | Through Hole | 28-PDIP |
|
DG211CYZIC SW SPST-NCX4 175OHM 16SOIC |
4,722 |
|
数据手册 |
- | Tube | Obsolete | SPST - NC | 1:1 | 4 | 175Ohm | - | - | ±15V | 460ns, 450ns | - | - | 5pF, 5pF | 5nA | -90dB @ 100kHz | 0°C ~ 70°C (TA) | - | - | Surface Mount | 16-SOIC |
|
DG401DVZIC SW SPST-NOX2 45OHM 16TSSOP |
3,818 |
|
数据手册 |
- | Tube | Obsolete | SPST - NO | 1:1 | 2 | 45Ohm | 3Ohm | 5V ~ 34V | ±5V ~ 17V | 150ns, 100ns | - | 60pC | 12pF, 12pF | 500pA | -90dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
ISL43L120IUZIC SW SPST-NOX2 250MOHM 8MSOP |
3,923 |
|
数据手册 |
- | Tube | Obsolete | SPST - NO | 1:1 | 2 | 250mOhm | 5mOhm | 1.65V ~ 3.6V | - | 25ns, 25ns | - | -125pC | 182pF, 182pF | 3nA | -94dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-MSOP |
|
ISL43L410IUZIC SWITCH DPDTX1 400MOHM 10MSOP |
3,161 |
|
数据手册 |
- | Tube | Obsolete | DPDT | 2:2 | 1 | 400mOhm | 30mOhm | 1.65V ~ 3.6V | - | 20ns, 12ns | - | 95pC | 115pF | 2nA | -95dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-MSOP |
|
ISL43L121IUZIC SW SPST-NCX2 250MOHM 8MSOP |
3,037 |
|
数据手册 |
- | Tube | Obsolete | SPST - NC | 1:1 | 2 | 250mOhm | 5mOhm | 1.65V ~ 3.6V | - | 25ns, 25ns | - | -125pC | 182pF, 182pF | 3nA | -94dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-MSOP |
|
|
ISL43L122IUZIC SW SPST-NO/NCX2 250MOHM 8MSOP |
4,703 |
|
数据手册 |
- | Tube | Obsolete | SPST - NO/NC | 1:1 | 2 | 250mOhm | 5mOhm | 1.65V ~ 3.6V | - | 25ns, 25ns | - | -125pC | 182pF, 182pF | 3nA | -94dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-MSOP |
|

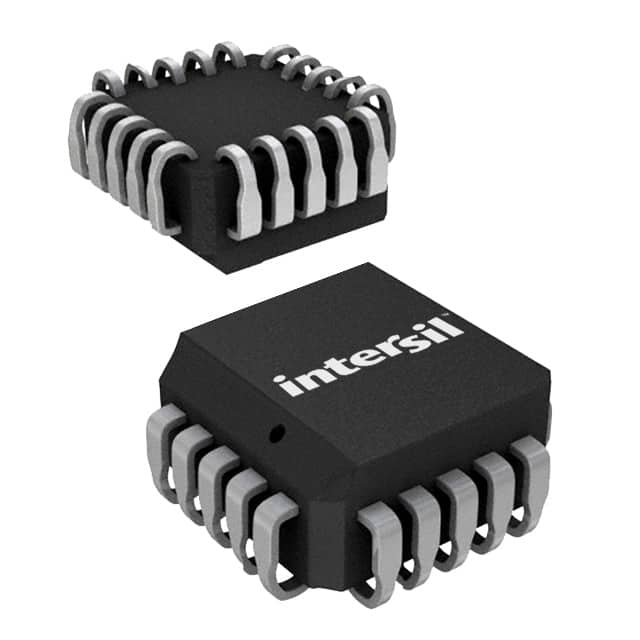

HI4P0509-5Z96IC SWITCH SP4T X 2 400OHM 20PLCC |
1,404 |
|
数据手册 |
- | Tape & Reel (TR) | Obsolete | SP4T | 4:1 | 2 | 400Ohm | 20Ohm | - | ±15V | 250ns, 250ns (Typ) | - | - | 10pF, 12pF | 30pA (Typ) | - | 0°C ~ 75°C (TA) | - | - | Surface Mount | 20-PLCC (9x9) |
|
DG211CJZIC SWITCH SPST-NCX4 175OHM 16DIP |
3,910 |
|
数据手册 |
- | Tube | Obsolete | SPST - NC | 1:1 | 4 | 175Ohm | - | - | ±15V | 460ns, 450ns | - | - | 5pF, 5pF | 5nA | -90dB @ 100kHz | 0°C ~ 70°C (TA) | - | - | Through Hole | 16-PDIP |
|
ISL43L120IRZIC SW SPST-NOX2 250MOHM 8TDFN |
2,339 |
|
数据手册 |
- | Tube | Obsolete | SPST - NO | 1:1 | 2 | 250mOhm | 5mOhm | 1.65V ~ 3.6V | - | 25ns, 25ns | - | -125pC | 182pF, 182pF | 3nA | -94dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-TDFN (3x3) |
