模拟开关、复用器、解复用器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 开关电路 | 多路复用器/解复用器电路 | 电路数量 | 导通状态电阻（最大） | 通道与通道匹配（ΔRon） | 电压 - 供应，单（V+） | 电压 - 供应，双（V±） | 开关时间（Ton, Toff）（最大） | -3db 带宽 | 电荷注入 | 通道电容（CS(off), CD(off)） | 漏电流（IS(off)）（最大） | 串扰 | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ADG1233YCPZ-REELIC SWITCH SPDTX3 190OHM 16LFCSP |
2,895 |
|
数据手册 |
- | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 3 | 190Ohm | 3.5Ohm | 5V ~ 16.5V | ±5V ~ 16.5V | 140ns, 45ns | 900MHz | 0.5pC | 1.7pF, 1.8pF | 100pA | -85dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-LFCSP-VQ (4x4) |
|
PI5A100WEIC SWITCH SPDT X 4 10OHM 16SOIC |
3,813 |
|
数据手册 |
- | Tube | Discontinued at Digi-Key | SPDT | 2:1 | 4 | 10Ohm | 800mOhm | 2V ~ 6V | - | 15ns, 7ns | 230MHz | 10pC (Max) | 8pF, 14pF | 10µA (Typ) | -100dB @ 10MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|
PS323ESAEIC SWITCH SPST-NOX2 35OHM 8SOIC |
1,381 |
|
数据手册 |
- | Tube | Obsolete | SPST - NO | 1:1 | 2 | 35Ohm | 800mOhm | 2.5V ~ 16V | - | 75ns, 50ns | - | 1pC | 9pF, 9pF | 100pA | -85dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
PS391ESEEIC SWITCH SPST-NCX4 45OHM 16SOIC |
2,464 |
|
数据手册 |
- | Tube | Obsolete | SPST - NC | 1:1 | 4 | 45Ohm | 500mOhm | 3V ~ 15V | ±3V ~ 8V | 130ns, 75ns | 100MHz | 3pC | 12pF, 12pF | 100pA | -90dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
.jpg)
|

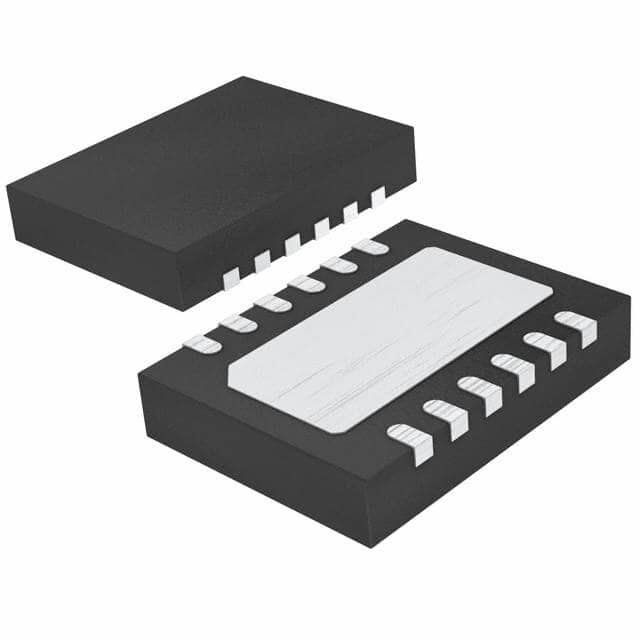

PI3A3160ZEEXIC SWITCH SPDTX2 450MOHM 12TDFN |
3,180 |
|
数据手册 |
- | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 2 | 450mOhm | 80mOhm (Max) | 1.5V ~ 4.2V | - | 20ns, 12ns | - | 100pC | 56pF, 56pF | 100nA | -41dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 12-TDFN (3.5x3) |
|
PI5A121TEXIC SWITCH SPST-NOX1 10OHM SOT23 |
3,506 |
|
数据手册 |
- | Tape & Reel (TR) | Obsolete | SPST - NO | 1:1 | 1 | 10Ohm | 200mOhm | 2V ~ 6V | - | 15ns, 7ns | 326MHz | 1.6pC | 5.5pF, 5.5pF | 200pA (Typ) | -43dB @ 10MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
PI5A4594ACEXIC SWITCH SPST-NOX1 10OHM SC70-5 |
2,990 |
|
数据手册 |
- | Tape & Reel (TR) | Obsolete | SPST - NO | 1:1 | 1 | 10Ohm | - | 2V ~ 5.5V | - | 38ns, 42ns | 30MHz | 2pC | 8pF, 8pF | 500pA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SC-70-5 |
|
PI5A4599ACEXIC SWITCH SPDT X 1 8OHM SOT363-6 |
3,433 |
|
数据手册 |
- | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 1 | 8Ohm | 100mOhm | 2V ~ 6V | - | 15ns, 10ns | 30MHz | 1.5pC | 5pF, 5pF | 1nA | -80dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-363-6 (SC-70) |
|
PI5A4624TEXIC SWITCH SPDTX1 900MOHM SOT23-6 |
3,194 |
|
数据手册 |
- | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 1 | 900mOhm | 30mOhm | 1.8V ~ 5.5V | - | 35ns, 20ns | - | 40pC | 42pF, 83pF | 2nA | -57dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-6 |
|
|
PS323CSAEIC SWITCH SPST-NOX2 35OHM 8SOIC |
4,675 |
|
数据手册 |
- | Tube | Obsolete | SPST - NO | 1:1 | 2 | 35Ohm | 800mOhm | 2.5V ~ 16V | - | 75ns, 50ns | - | 1pC | 9pF, 9pF | 100pA | -85dB @ 1MHz | 0°C ~ 70°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
PS381ESEIC SWITCH SPST-NOX2 30OHM 16SOIC |
4,790 |
|
数据手册 |
- | Tube | Obsolete | SPST - NO | 1:1 | 2 | 30Ohm | 200mOhm | 3V ~ 15V | ±3V ~ 8V | 130ns, 75ns | - | 2pC | 12pF, 12pF | 100pA | -90dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|
|
PS383CSEIC SWITCH SPDT X 2 30OHM 16SOIC |
4,927 |
|
数据手册 |
- | Tube | Obsolete | SPDT | 2:1 | 2 | 30Ohm | 200mOhm | 3V ~ 15V | ±3V ~ 8V | 130ns, 75ns | - | 2pC | 12pF, 12pF | 100pA | -90dB @ 1MHz | 0°C ~ 70°C (TA) | - | - | Surface Mount | 16-SOIC |
|
|
PS391CSEIC SWITCH SPST-NCX4 45OHM 16SOIC |
1,267 |
|
数据手册 |
- | Tube | Obsolete | SPST - NC | 1:1 | 4 | 45Ohm | 500mOhm | 3V ~ 15V | ±3V ~ 8V | 130ns, 75ns | 100MHz | 3pC | 12pF, 12pF | 100pA | -90dB @ 1MHz | 0°C ~ 70°C (TA) | - | - | Surface Mount | 16-SOIC |
|
PS391EEEIC SWITCH SPST-NCX4 45OHM 16QSOP |
2,555 |
|
数据手册 |
- | Tube | Obsolete | SPST - NC | 1:1 | 4 | 45Ohm | 500mOhm | 3V ~ 15V | ±3V ~ 8V | 130ns, 75ns | 100MHz | 3pC | 12pF, 12pF | 100pA | -90dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-QSOP |
|
|
PS392EEEIC SWITCH SPST-NOX4 45OHM 16QSOP |
3,972 |
|
数据手册 |
- | Tube | Obsolete | SPST - NO | 1:1 | 4 | 45Ohm | 500mOhm | 3V ~ 15V | ±3V ~ 8V | 130ns, 75ns | 100MHz | 3pC | 12pF, 12pF | 100pA | -90dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-QSOP |
|
|
PS398CSEEIC MUX 8:1 100OHM 16SOIC |
3,196 |
|
数据手册 |
- | Tube | Obsolete | - | 8:1 | 1 | 100Ohm | 6Ohm (Max) | 3V ~ 15V | ±3V ~ 8V | 150ns, 150ns | - | 2.8pC | 3.6pF, 31pF | 50nA | -92dB @ 100kHz | - | - | - | Surface Mount | 16-SOIC |
|
|
PS398ESEIC MUX 8:1 100OHM 16SOIC |
3,066 |
|
数据手册 |
- | Tube | Obsolete | - | 8:1 | 1 | 100Ohm | 6Ohm (Max) | 3V ~ 15V | ±3V ~ 8V | 150ns, 150ns | - | 2.8pC | 3.6pF, 31pF | 50nA | -92dB @ 100kHz | - | - | - | Surface Mount | 16-SOIC |
|
|
PS398ESEEIC MUX 8:1 100OHM 16SOIC |
4,740 |
|
数据手册 |
- | Tube | Obsolete | - | 8:1 | 1 | 100Ohm | 6Ohm (Max) | 3V ~ 15V | ±3V ~ 8V | 150ns, 150ns | - | 2.8pC | 3.6pF, 31pF | 50nA | -92dB @ 100kHz | - | - | - | Surface Mount | 16-SOIC |
|
|
PS399CSEIC SWITCH SP4T X 2 100OHM 16SOIC |
1,505 |
|
数据手册 |
- | Tube | Obsolete | SP4T | 4:1 | 2 | 100Ohm | 6Ohm (Max) | 3V ~ 15V | ±3V ~ 8V | 150ns, 150ns | - | 2.8pC | 3.6pF, 31pF | 50nA | -92dB @ 100kHz | - | - | - | Surface Mount | 16-SOIC |
|
|
PS399ESEIC SWITCH SP4T X 2 100OHM 16SOIC |
4,306 |
|
数据手册 |
- | Tube | Obsolete | SP4T | 4:1 | 2 | 100Ohm | 6Ohm (Max) | 3V ~ 15V | ±3V ~ 8V | 150ns, 150ns | - | 2.8pC | 3.6pF, 31pF | 50nA | -92dB @ 100kHz | - | - | - | Surface Mount | 16-SOIC |
