模拟开关、复用器、解复用器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 开关电路 | 多路复用器/解复用器电路 | 电路数量 | 导通状态电阻（最大） | 通道与通道匹配（ΔRon） | 电压 - 供应，单（V+） | 电压 - 供应，双（V±） | 开关时间（Ton, Toff）（最大） | -3db 带宽 | 电荷注入 | 通道电容（CS(off), CD(off)） | 漏电流（IS(off)）（最大） | 串扰 | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DG407DJIC MUX DUAL 8:1 100OHM 28DIP |
4,359 |
|
数据手册 |
- | Tube | Obsolete | - | 8:1 | 2 | 100Ohm | 1.5Ohm | 5V ~ 30V | ±4.5V ~ 20V | 200ns, 150ns | - | 2pC | 8pF, 65pF | 500pA | -92dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Through Hole | 28-PDIP |
|
DG506ADN+TIC MUX 16:1 450OHM 28PLCC |
3,910 |
|
数据手册 |
- | Tape & Reel (TR) | Active | - | 16:1 | 1 | 450Ohm | - | - | ±4.5V ~ 18V | 1µs, 400ns | - | - | 6pF, 45pF | 5nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 28-PLCC (11.51x11.51) |
|
MAX4560ESE+TIC SWITCH SPDT X 3 160OHM 16SOIC |
1,472 |
|
数据手册 |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 3 | 160Ohm | 2Ohm | 2V ~ 12V | ±2V ~ 6V | 150ns, 120ns | - | 2.4pC | 2pF, 4pF | 1nA | -93dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|
MAX329CWEIC SWITCH SP4TX2 3.5KOHM 16SOIC |
2,629 |
|
数据手册 |
- | Tube | Obsolete | SP4T | 4:1 | 2 | 3.5kOhm | 70Ohm | 10V ~ 30V | ±5V ~ 18V | 1.5µs, 1µs | - | 2pC | 1.8pF, 8pF | 10pA | - | 0°C ~ 70°C (TA) | - | - | Surface Mount | 16-SOIC |
|
MAX4600CAE+TIC SW SPST-NO/NC 1.25OHM 16SSOP |
3,732 |
|
数据手册 |
- | Tape & Reel (TR) | Active | SPST - NO/NC | 1:1 | 2 | 1.25Ohm | 50mOhm | 4.5V ~ 36V | ±4.5V ~ 20V | 160ns, 210ns | - | -60pC | 115pF, 115pF | 500pA | -65dB @ 1MHz | 0°C ~ 70°C (TA) | - | - | Surface Mount | 16-SSOP |
|
|
MAX4580CAE+TIC SW SPST-NCX2 1.25OHM 16SSOP |
1,773 |
|
数据手册 |
- | Tape & Reel (TR) | Active | SPST - NC | 1:1 | 2 | 1.25Ohm | 500mOhm | 4.5V ~ 36V | ±4.5V ~ 20V | 160ns, 210ns | - | -60pC | 115pF | 500pA | -65dB @ 1MHz | 0°C ~ 70°C (TA) | - | - | Surface Mount | 16-SSOP |
|
DG406DN-T1IC MUX 16:1 100OHM 28PLCC |
4,669 |
|
数据手册 |
- | Tube | Obsolete | - | 16:1 | 1 | 100Ohm | 5Ohm | 7.5V ~ 44V | ±5V ~ 20V | 200ns, 150ns | - | 15pC | 8pF, 130pF | 500pA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 28-PLCC (11.51x11.51) |
|

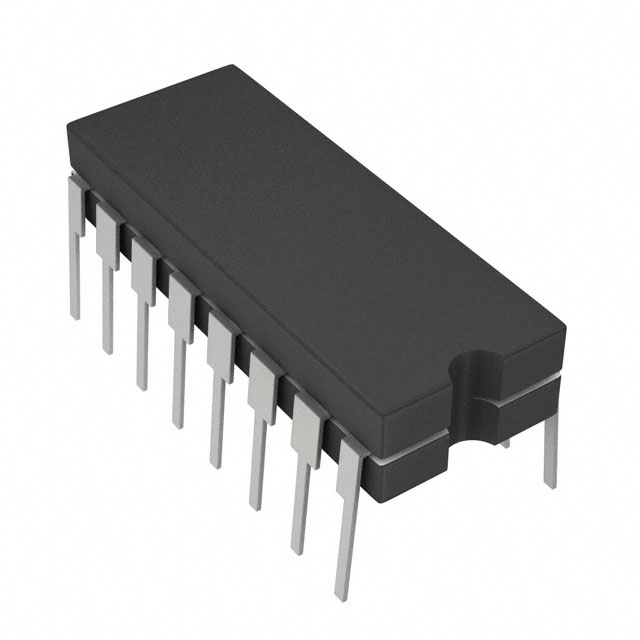

LTC202CJIC SWITCH SPST QUAD 16DIP |
1,025 |
|
数据手册 |
- | Tube | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Through Hole | 16-CERDIP |
|
MAX359EJEIC SWITCH SP4TX2 1.8KOHM 16CDIP |
2,119 |
|
数据手册 |
- | Tube | Obsolete | SP4T | 4:1 | 2 | 1.8kOhm | - | - | ±4.5V ~ 18V | 300ns, 300ns (Typ) | - | - | - | 10µA | - | -40°C ~ 85°C (TA) | - | - | Through Hole | 16-CDIP |
|
|
MAX4600EAE+TIC SW SPST-NO/NC 1.25OHM 16SSOP |
2,522 |
|
数据手册 |
- | Tape & Reel (TR) | Active | SPST - NO/NC | 1:1 | 2 | 1.25Ohm | 50mOhm | 4.5V ~ 36V | ±4.5V ~ 20V | 160ns, 210ns | - | -60pC | 115pF, 115pF | 500pA | -65dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SSOP |
|
LTC1380IS#TRPBFIC MUX 8:1 70OHM 16SO |
1,251 |
|
数据手册 |
- | Tape & Reel (TR) | Active | - | 8:1 | 1 | 70Ohm | - | 2.7V | ±5V | 1.5µs, 1.2µs | - | 1pC | 3pF, 26pF | 5nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SO |
|
|
LTC1393IS#TRPBFIC SWITCH SP4T X 2 70OHM 16SO |
1,692 |
|
数据手册 |
- | Tape & Reel (TR) | Active | SP4T | 4:1 | 2 | 70Ohm | - | 2.7V | ±5V | 1.5µs, 1.2µs | - | 1pC | 3pF, 18pF | 5nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SO |
|
MAX4711CUE+TIC SW SPST-NCX4 25OHM 16TSSOP |
3,705 |
|
数据手册 |
- | Tape & Reel (TR) | Active | SPST - NC | 1:1 | 4 | 25Ohm | 200mOhm | 2.7V ~ 11V | ±2.7V ~ 5.5V | 125ns, 80ns | - | 25pC | 8pF, 8pF | 500pA | -87dB @ 1MHz | 0°C ~ 70°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
|
DG407BDN-T1IC MUX DUAL 8:1 60OHM 28PLCC |
4,449 |
|
数据手册 |
- | Tape & Reel (TR) | Obsolete | - | 8:1 | 2 | 60Ohm | 3Ohm | 7.5V ~ 44V | ±5V ~ 20V | 107ns, 88ns | - | 11pC | 6pF, 54pF | 500pA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 28-PLCC (11.51x11.51) |
|
|
MAX328CWE-TIC MUX 8:1 3.5KOHM 16SOIC |
2,133 |
|
数据手册 |
- | Tape & Reel (TR) | Obsolete | - | 8:1 | 1 | 3.5kOhm | 70Ohm | 10V ~ 30V | ±5V ~ 18V | 1.5µs, 1µs | - | 2pC | 1.8pF, 8pF | 10pA | - | 0°C ~ 70°C (TA) | - | - | Surface Mount | 16-SOIC |
|
|
MAX4512ESE+TIC SW SPST-NOX4 160OHM 16SOIC |
4,317 |
|
数据手册 |
- | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 4 | 160Ohm | - | 9V ~ 36V | ±4.5V ~ 18V | 500ns, 400ns | - | 1.5pC | 10pF, 5pF | 500pA | -66dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|
|
MAX4511CSE+TIC SW SPST-NCX4 160OHM 16SOIC |
2,188 |
|
数据手册 |
- | Tape & Reel (TR) | Active | SPST - NC | 1:1 | 4 | 160Ohm | - | 9V ~ 36V | ±4.5V ~ 18V | 500ns, 400ns | - | 1.5pC | 10pF, 5pF | 500pA | -66dB @ 1MHz | 0°C ~ 70°C (TA) | - | - | Surface Mount | 16-SOIC |
|
|
DG408MY/PR-TIC MUX 8:1 100OHM 16SOIC |
4,989 |
|
数据手册 |
- | Tape & Reel (TR) | Obsolete | - | 8:1 | 1 | 100Ohm | 1.5Ohm | 5V ~ 30V | ±5V ~ 20V | 150ns, 150ns | - | 2pC | 3pF, 26pF | 500pA | -92dB @ 100kHz | -55°C ~ 125°C (TA) | - | - | Surface Mount | 16-SOIC |
|
|
LTC221CJIC ANLG SWITCH QUAD SPST 16CDIP |
1,380 |
|
数据手册 |
- | Tube | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Through Hole | 16-CERDIP |
|
MAX4558CEE+TIC MUX 8:1 160OHM 16QSOP |
2,936 |
|
数据手册 |
- | Tape & Reel (TR) | Active | - | 8:1 | 1 | 160Ohm | 2Ohm | 2V ~ 12V | ±2V ~ 6V | 150ns, 120ns | - | 2.4pC | 2.5pF, 10pF | 1nA | -93dB @ 100kHz | 0°C ~ 70°C (TA) | - | - | Surface Mount | 16-QSOP |
