模拟开关、复用器、解复用器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 开关电路 | 多路复用器/解复用器电路 | 电路数量 | 导通状态电阻（最大） | 通道与通道匹配（ΔRon） | 电压 - 供应，单（V+） | 电压 - 供应，双（V±） | 开关时间（Ton, Toff）（最大） | -3db 带宽 | 电荷注入 | 通道电容（CS(off), CD(off)） | 漏电流（IS(off)）（最大） | 串扰 | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAX4583LEEE+TIC SWITCH SPDT X 3 80OHM 16QSOP |
1,086 |
|
数据手册 |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 3 | 80Ohm | 1Ohm | 2V ~ 12V | - | 200ns, 100ns | - | 0.5pC | 4pF, 6pF | 2nA | -96dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-QSOP |
|
MAX4528ESA+TIC SWITCH SPDT X 2 110OHM 8SOIC |
4,344 |
|
数据手册 |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 2 | 110Ohm | 3Ohm | 2.7V ~ 12V | ±2.7V ~ 6V | - | - | 1pC | 13pF | 500pA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
MAX4575ESA+IC SWITCH SPST-NOX2 70OHM 8SOIC |
1,462 |
|
数据手册 |
- | Tube | Obsolete | SPST - NO | 1:1 | 2 | 70Ohm | 500mOhm | 2V ~ 12V | - | 150ns, 80ns | 300MHz | 5pC | 20pF, 12pF | 500pA | -90dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
DG200ADYIC SWITCH SPST-NCX2 80OHM 14SOIC |
1,278 |
|
数据手册 |
- | Tube | Obsolete | SPST - NC | 1:1 | 2 | 80Ohm | - | - | ±4.5V ~ 18V | 1µs, 500ns | - | 10pC | 9pF, 9pF | 2nA | -90dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 14-SOIC |
|
MAX4593CSEIC SW SPST-NO/NCX4 20OHM 16SOIC |
1,005 |
|
数据手册 |
- | Tube | Obsolete | SPST - NO/NC | 1:1 | 4 | 20Ohm | 500mOhm | 3V ~ 16V | - | 80ns, 45ns | - | 2pC | 9pF, 9pF | 100pA | -85dB @ 10MHz | 0°C ~ 70°C (TA) | - | - | Surface Mount | 16-SOIC |
|
|
MAX4619CSE+TIC SWITCH SPDT X 3 10OHM 16SOIC |
4,193 |
|
数据手册 |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 3 | 10Ohm | 200mOhm | 2V ~ 5.5V | - | 15ns, 10ns | - | 3pC | 5pF, 8.5pF | 1nA | -96dB @ 100kHz | 0°C ~ 70°C (TA) | - | - | Surface Mount | 16-SOIC |
|
|
DG221BDY-E3IC SWITCH SPST-NCX4 90OHM 16SOIC |
4,948 |
|
数据手册 |
- | Tube | Last Time Buy | SPST - NC | 1:1 | 4 | 90Ohm | - | 13V ~ 18V | ±7V ~ 18V | 550ns, 340ns | - | 20pC | 8pF, 9pF | 5nA | -90dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
.jpg)
|

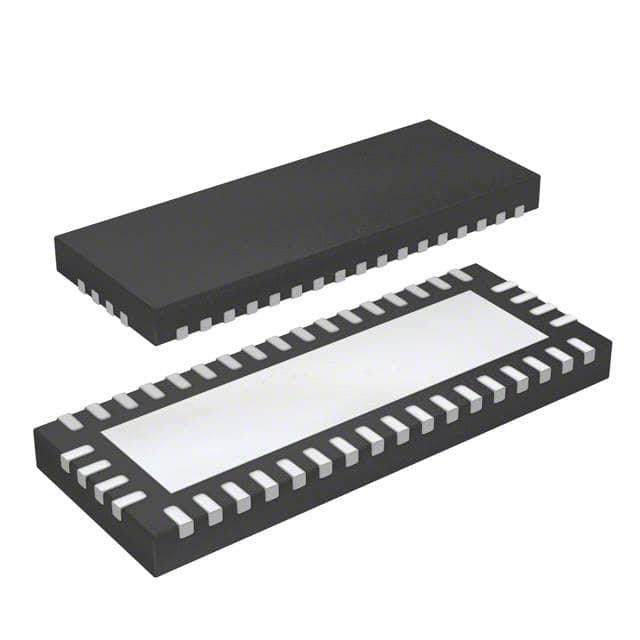

STMUX3040QTTRIC SWITCH SPDT X 8 8OHM 42TQFN |
3,162 |
|
数据手册 |
- | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 8 | 8Ohm | 500mOhm | 1.65V ~ 3.6V | - | 9ns, 8.5ns | 1.3GHz | - | 4pF | - | -30dB @ 300MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 42-TQFN-EP (3.5x9) |
|
|
DG401BDY-T1IC SWITCH SPST-NOX2 45OHM 16SOIC |
3,968 |
|
数据手册 |
- | Tape & Reel (TR) | Obsolete | SPST - NO | 1:1 | 2 | 45Ohm | - | 13V ~ 36V | ±7V ~ 22V | 150ns, 100ns | - | 60pC | 12pF, 12pF | 500pA | -94.8dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|
MAX4752EGE+TIC SW SPST-NOX4 900MOHM 16QFN |
1,355 |
|
数据手册 |
- | Tape & Reel (TR) | Obsolete | SPST - NO | 1:1 | 4 | 900mOhm | 30mOhm | 1.6V ~ 3.6V | - | 30ns, 25ns | - | 21pC | 31pF, 30pF | 2.5nA | -80dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-QFN (3x3) |
|
MAX4520EUA+TIC SWITCH SPST-NOX1 160OHM 8UMAX |
1,872 |
|
数据手册 |
- | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 1 | 160Ohm | - | 9V ~ 36V | ±4.5V ~ 20V | 500ns, 175ns | - | 1.5pC | 10pF, 5pF | 500pA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-uMAX/uSOP |
|
AS1746-BTDTIC SWITCH SPDTX2 550MOHM 10TDFN |
4,296 |
|
数据手册 |
- | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 2 | 550mOhm | 20mOhm | 1.8V ~ 5.5V | - | 50ns, 30ns | - | 200pC | 84pF, 37pF | 10nA | -60dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-TDFN (3x3) |
|
|
DG641DY-T1IC SWITCH SPST-NOX4 15OHM 16SOIC |
2,864 |
|
数据手册 |
- | Tape & Reel (TR) | Obsolete | SPST - NO | 1:1 | 4 | 15Ohm | 1Ohm | 3V ~ 15V | ±3V ~ 15V | 70ns, 50ns | 500MHz | 19pC | 12pF, 12pF | 10nA | -87dB @ 5MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|
|
MAX319ESAIC SWITCH SPDT X 1 35OHM 8SOIC |
4,431 |
|
数据手册 |
- | Tube | Obsolete | SPDT | 2:1 | 1 | 35Ohm | 2Ohm (Max) | 10V ~ 30V | ±4.5V ~ 20V | 175ns, 145ns | - | 3pC | 8pF, 8pF | 250pA | -85dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
MAX4620EUD+TIC SW SPST-NOX4 70OHM 14TSSOP |
4,564 |
|
数据手册 |
- | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 4 | 70Ohm | 500mOhm | 2V ~ 12V | - | 15ns, 10ns | - | 3pC | 5pF, 8.5pF | 1nA | -96dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 14-TSSOP |
|
PS392CPEIC SWITCH SPST-NOX4 45OHM 16DIP |
4,528 |
|
数据手册 |
- | Tray | Obsolete | SPST - NO | 1:1 | 4 | 45Ohm | 500mOhm | 3V ~ 15V | ±3V ~ 8V | 130ns, 75ns | 100MHz | 3pC | 12pF, 12pF | 100pA | -90dB @ 1MHz | 0°C ~ 70°C (TA) | - | - | Through Hole | 16-PDIP |
|
|
MAX4558CEEIC MUX 8:1 160OHM 16QSOP |
3,949 |
|
数据手册 |
- | Tube | Obsolete | - | 8:1 | 1 | 160Ohm | 2Ohm | 2V ~ 12V | ±2V ~ 6V | 150ns, 120ns | - | 2.4pC | 2.5pF, 10pF | 1nA | -93dB @ 100kHz | 0°C ~ 70°C (TA) | - | - | Surface Mount | 16-QSOP |
|
MAX4558EPEIC MUX 8:1 160OHM 16DIP |
1,163 |
|
数据手册 |
- | Tube | Obsolete | - | 8:1 | 1 | 160Ohm | 2Ohm | 2V ~ 12V | ±2V ~ 6V | 150ns, 120ns | - | 2.4pC | 2.5pF, 10pF | 1nA | -93dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Through Hole | 16-PDIP |
|
|
MAX4560CEEIC SWITCH SPDT X 3 160OHM 16QSOP |
4,965 |
|
数据手册 |
- | Tube | Obsolete | SPDT | 2:1 | 3 | 160Ohm | 2Ohm | 2V ~ 12V | ±2V ~ 6V | 150ns, 120ns | - | 2.4pC | 2pF, 4pF | 1nA | -93dB @ 100kHz | 0°C ~ 70°C (TA) | - | - | Surface Mount | 16-QSOP |
|
|
MAX4560ESEIC SWITCH SPDT X 3 160OHM 16SOIC |
4,338 |
|
数据手册 |
- | Tube | Obsolete | SPDT | 2:1 | 3 | 160Ohm | 2Ohm | 2V ~ 12V | ±2V ~ 6V | 150ns, 120ns | - | 2.4pC | 2pF, 4pF | 1nA | -93dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
