模拟开关、复用器、解复用器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 开关电路 | 多路复用器/解复用器电路 | 电路数量 | 导通状态电阻（最大） | 通道与通道匹配（ΔRon） | 电压 - 供应，单（V+） | 电压 - 供应，双（V±） | 开关时间（Ton, Toff）（最大） | -3db 带宽 | 电荷注入 | 通道电容（CS(off), CD(off)） | 漏电流（IS(off)）（最大） | 串扰 | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
STG3159DTRIC SWITCH SPDT X 1 1.1OHM 6DFN |
1,554 |
|
数据手册 |
- | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 1 | 1.1Ohm | 50mOhm | 1.65V ~ 4.3V | - | 23ns, 21ns | 150MHz | 33pC | 6pF | 20nA | -80dB @ 100kHz | -55°C ~ 125°C (TA) | - | - | Surface Mount | 6-DFN (1.2x1) |
|
DG2518DQ-T1-E3IC SWITCH SPDT X 2 4OHM 10MSOP |
3,050 |
|
数据手册 |
- | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 2 | 4Ohm | 100mOhm | 1.8V ~ 5.5V | - | 25ns, 20ns | 242MHz | 2pC | 8pF | 1nA | -73dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-MSOP |
|
DG9232DY-T1-E3IC SWITCH SPST-NCX2 30OHM 8SOIC |
1,589 |
|
数据手册 |
- | Tape & Reel (TR) | Obsolete | SPST - NC | 1:1 | 2 | 30Ohm | 400mOhm | 2.7V ~ 12V | - | 75ns, 50ns | - | 2pC | 7pF, 13pF | 100pA | -90dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
FSA1258L8XIC SWITCH SPST 1.15OHM 8MICROPAK |
1,796 |
|
数据手册 |
- | Tape & Reel (TR) | Obsolete | SPST - NO/NC | 1:1 | 2 | 1.15Ohm | 60mOhm | 1.65V ~ 5.5V | - | 35ns, 15ns | 300MHz | 20pC | 11.5pF | 2nA (Typ) | -100dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-MicroPak™ |
|
FSA4157AP6XIC SWITCH SPDT X 1 1.15OHM SC88 |
3,211 |
|
数据手册 |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 1.15Ohm | 60mOhm | 2.7V ~ 5.5V | - | 35ns, 15ns | 300MHz | 20pC | 12pF | 2nA (Typ) | -70dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | SC-88 (SC-70-6) |
|
74HC4067DB,118IC MUX 16:1 120OHM 24SSOP |
1,669 |
|
数据手册 |
- | Tape & Reel (TR) | Obsolete | - | 16:1 | 1 | 120Ohm | 6Ohm | 2V ~ 10V | - | 45ns, 45ns | 100MHz | - | 3.5pF | 100nA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | 24-SSOP |
|
|
NLV74VHC4066DTRGIC SW SPST-NOX4 70OHM 14TSSOP |
1,711 |
|
数据手册 |
- | Tape & Reel (TR) | Obsolete | SPST - NO | 1:1 | 4 | 70Ohm | 15Ohm | 2V ~ 12V | - | - | 160MHz | - | 10pF | 100nA | -80dB @ 1MHz | -55°C ~ 125°C (TA) | - | - | Surface Mount | 14-TSSOP |
|
FSA4157AL6XIC SW SPDTX1 1.15OHM 6MICROPAK |
2,547 |
|
数据手册 |
- | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 1 | 1.15Ohm | 60mOhm | 2.7V ~ 5.5V | - | 35ns, 15ns | 300MHz | 20pC | 12pF | 2nA (Typ) | -70dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-MicroPak |
|
NLAST4051DTR2GIC MUX 8:1 26OHM 16TSSOP |
2,606 |
|
数据手册 |
- | Tape & Reel (TR) | Obsolete | - | 8:1 | 1 | 26Ohm | 10Ohm | 3V ~ 5V | ±3V | 23ns, 23ns | 95MHz | 12pC | 10pF, 10pF | 100pA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | 16-TSSOP |
|

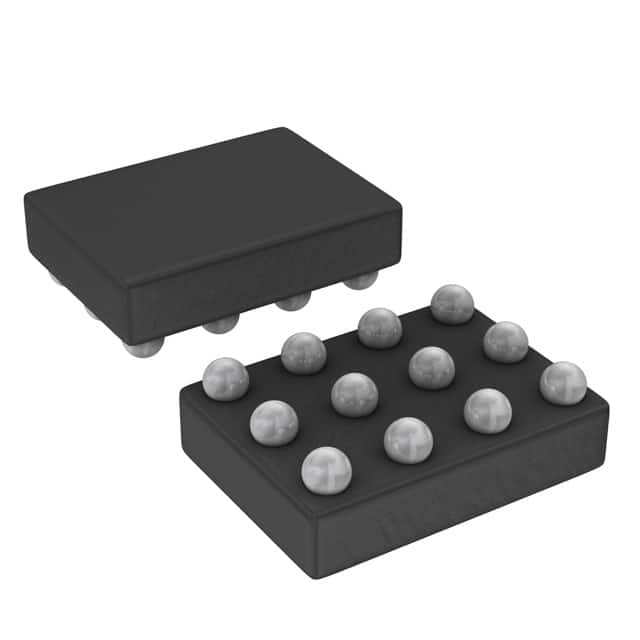

TS5A26542YZTRIC SWITCH SPDTX2 750MOHM 12DSBGA |
4,386 |
|
数据手册 |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 2 | 750mOhm | 50mOhm | 2.25V ~ 5.5V | - | 25ns, 20ns | 43MHz | 15pC | 37pF | 20nA | -63dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 12-DSBGA (1.9x1.4) |
|
DG9411DL-T1-E3IC SWITCH SPDT X 1 12OHM SC70-6 |
1,115 |
|
数据手册 |
- | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 1 | 12Ohm | - | 2.25V ~ 5.5V | - | 11ns, 7ns | - | 10pC | 7pF, 20pF | 1nA | -70dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | SC-70-6 |
|
MAX4582EEEIC SWITCH SP4T X 2 80OHM 16QSOP |
3,416 |
|
数据手册 |
- | Tube | Obsolete | SP4T | 4:1 | 2 | 80Ohm | 1Ohm | 2V ~ 12V | ±2V ~ 6V | 200ns, 100ns | - | 0.5pC | 4pF, 10pF | 1nA | -96dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-QSOP |
|
MAX4641EUAIC SWITCH SPST-NO X 2 4OHM 8UMAX |
4,735 |
|
数据手册 |
- | Tube | Obsolete | SPST - NO | 1:1 | 2 | 4Ohm | 200mOhm | 1.8V ~ 5.5V | - | 15ns, 8ns | - | 2pC | 7pF, 7pF | 250pA | -97dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-uMAX/uSOP |
|
|
MAX4644EUAIC SWITCH SPDT X 1 4OHM 8UMAX |
4,430 |
|
数据手册 |
- | Tube | Obsolete | SPDT | 2:1 | 1 | 4Ohm | 100mOhm | 1.8V ~ 5.5V | - | 15ns, 5ns | - | 5pC | 12pF | 250pA | -82dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-uMAX/uSOP |
|
DG412LDYIC SWITCH SPST-NOX4 17OHM 16SOIC |
2,944 |
|
数据手册 |
- | Tube | Obsolete | SPST - NO | 1:1 | 4 | 17Ohm | - | 2.7V ~ 12V | ±3V ~ 6V | 19ns, 12ns | 280MHz | 5pC | 5pF, 6pF | 250pA | -95dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|
|
DG413LDYIC SW SPST-NO/NCX4 17OHM 16SOIC |
4,433 |
|
数据手册 |
- | Tube | Obsolete | SPST - NO/NC | 1:1 | 4 | 17Ohm | - | 2.7V ~ 12V | ±3V ~ 6V | 19ns, 12ns | 280MHz | 5pC | 5pF, 6pF | 250pA | -95dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|
DG9232DQ-T1-E3IC SWITCH SPST-NCX2 30OHM 8MSOP |
4,331 |
|
数据手册 |
- | Tape & Reel (TR) | Obsolete | SPST - NC | 1:1 | 2 | 30Ohm | 400mOhm | 2.7V ~ 12V | - | 75ns, 50ns | - | 2pC | 7pF, 13pF | 100pA | -90dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-MSOP |
|
MAX4521EPEIC SWITCH SPST-NCX4 100OHM 16DIP |
3,356 |
|
数据手册 |
- | Tube | Obsolete | SPST - NC | 1:1 | 4 | 100Ohm | 1Ohm | 2V ~ 12V | ±2V ~ 6V | 80ns, 30ns | - | 1pC | 2pF, 2pF | 1nA | -90dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Through Hole | 16-PDIP |
|
|
MAX4521ESEIC SW SPST-NCX4 100OHM 16SOIC |
2,788 |
|
数据手册 |
- | Tube | Obsolete | SPST - NC | 1:1 | 4 | 100Ohm | 1Ohm | 2V ~ 12V | ±2V ~ 6V | 80ns, 30ns | - | 1pC | 2pF, 2pF | 1nA | -90dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|
|
MAX4522ESEIC SW SPST-NOX4 100OHM 16SOIC |
2,874 |
|
数据手册 |
- | Tube | Obsolete | SPST - NO | 1:1 | 4 | 100Ohm | 1Ohm | 2V ~ 12V | ±2V ~ 6V | 80ns, 30ns | - | 1pC | 2pF, 2pF | 1nA | -90dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
