高频（RF）继电器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 线圈类型 | 线圈电流 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 特性 | 安装类型 | 端接样式 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2904-05-421RELAY RF SPST-NO 500MA 5V |
691 |
|
数据手册 |
2900 | Tube | Active | Non Latching | 13.5 mA | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 3.8 VDC | 0.4 VDC | 0.5 ms | 0.1 ms | - | Through Hole | PC Pin | -20°C ~ 85°C |
|
1462050-9RELAY RF SPDT 2A 12V |
400 |
|
数据手册 |
HF3, AXICOM | Tape & Reel (TR) | Active | Latching, Single Coil | 5.8 mA | 12VDC | SPDT (1 Form C) | 2 A | 250VAC, 220VDC - Max | 9 VDC | - | 5 ms | 5 ms | - | Surface Mount | Gull Wing | -55°C ~ 85°C |
|
|
9853-05-20TRRELAY RF SPDT 100MA 5V |
965 |
|
数据手册 |
9853 | Tape & Reel (TR) | Active | Non Latching | 45.5 mA | 5VDC | SPDT (1 Form C) | 100 mA | 50VAC, 50VDC - Max | 3.8 VDC | 0.4 VDC | 1 ms | 1 ms | Magnetic Shield | Surface Mount | J Lead | -20°C ~ 85°C |
|

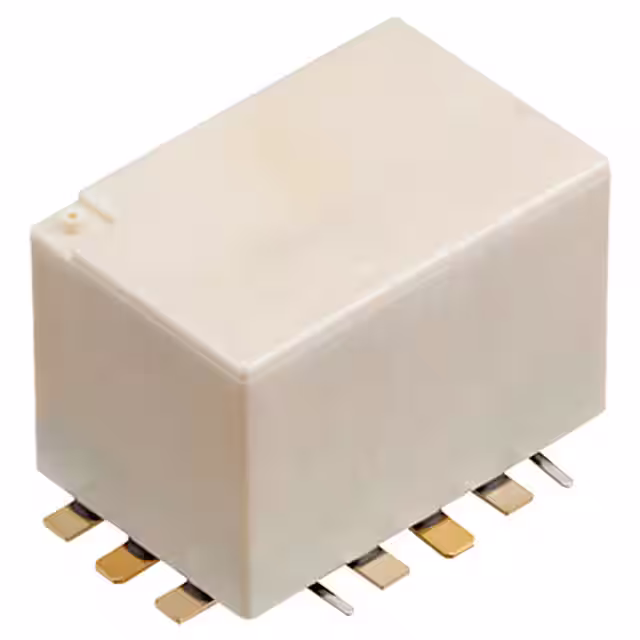

ARN10A12RELAY RF SPDT 12V |
507 |
|
数据手册 |
ARN | Tray | Active | Non Latching | 26.7 mA | 12VDC | SPDT (1 Form C) | - | - | 9 VDC | 1.2 VDC | 5 ms | 5 ms | Sealed - Flux Protection | Surface Mount | Gull Wing | -40°C ~ 85°C |
|
|
IM03DGRRF Relay, 2 Form C, DPDT, Moment |
44,400 |
|
数据手册 |
* | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
IM26TSRF Relay, 2 Form C, DPDT, Moment |
4,557 |
|
数据手册 |
* | Tube | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

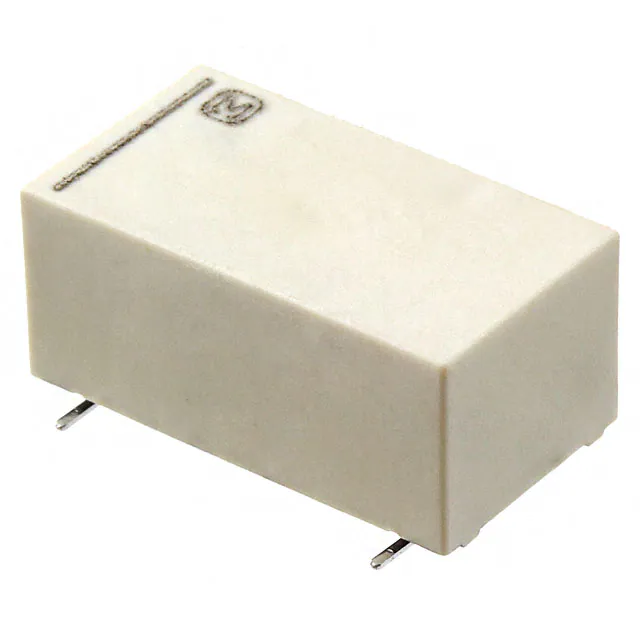

ARE10A4HZRELAY RF SPDT 500MA 4.5V |
133 |
|
数据手册 |
ARE | Tape & Reel (TR) | Obsolete | Non Latching | 44.4 mA | 4.5VDC | SPDT (1 Form C) | 500 mA | 30VDC - Max | 3.38 VDC | 0.45 VDC | 10 ms | 5 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
|
ARE10A03RELAY RF SPDT 500MA 3V |
264 |
|
数据手册 |
ARE | Tube | Obsolete | Non Latching | 66.7 mA | 3VDC | SPDT (1 Form C) | 500 mA | 30VDC - Max | 2.25 VDC | 0.3 VDC | 10 ms | 5 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
|
ARE10A24RELAY RF SPDT 500MA 24V |
426 |
|
数据手册 |
ARE | Tube | Obsolete | Non Latching | 8.3 mA | 24VDC | SPDT (1 Form C) | 500 mA | 30VDC - Max | 18 VDC | 2.4 VDC | 10 ms | 5 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
9202-05-20TRRELAY RF SPST-NO 500MA 5V |
1,415 |
|
数据手册 |
9200 | Tape & Reel (TR) | Active | Non Latching | 33.3 mA | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 3.75 VDC | 0.4 VDC | 0.4 ms | 0.1 ms | Sealed - Hermetically | Surface Mount | J Lead | -20°C ~ 85°C |
|
|
1462050-6RELAY RF SPDT 2A 3V |
2,563 |
|
数据手册 |
HF3, AXICOM | Tape & Reel (TR) | Active | Latching, Single Coil | 23.4 mA | 3VDC | SPDT (1 Form C) | 2 A | 250VAC, 220VDC - Max | 2.25 VDC | - | 5 ms | 5 ms | - | Surface Mount | Gull Wing | -55°C ~ 85°C |
|
1-1462051-5RELAY RF SPDT 2A 24V |
3,653 |
|
数据手册 |
HF3, AXICOM | Tape & Reel (TR) | Discontinued at Digi-Key | Latching, Dual Coil | 5.8 mA | 24VDC | SPDT (1 Form C) | 2 A | 250VAC, 220VDC - Max | 18 VDC | - | 5 ms | 5 ms | - | Surface Mount | Gull Wing | -55°C ~ 85°C |
|
G6K-2F-RF DC9RELAY RF DPDT 1A 9V |
300 |
|
数据手册 |
G6K-RF | Tray | Active | Non Latching | 11.3 mA | 9VDC | DPDT (2 Form C) | 1 A | 125VAC, 60VDC - Max | 7.2 VDC | 0.9 VDC | 3 ms | 3 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
|
G6K-2F-RF-T-TR03-DC5SIGNAL RELAYS - SMT TAPE & REEL |
9,300 |
|
数据手册 |
G6K-RF | Box | Active | Non Latching | 21.1 mA | 5VDC | DPDT (2 Form C) | 1 A | 125VAC, 60VDC - Max | 4 VDC | 0.5 VDC | 3 ms | 3 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
ARJ20A12ZRELAY RF DPDT 300MA 12V |
866 |
|
数据手册 |
ARJ | Tape & Reel (TR) | Active | Non Latching | 16.7 mA | 12VDC | DPDT (2 Form C) | 300 mA | 30VDC - Max | 9 VDC | 1.2 VDC | 5 ms | 5 ms | - | Surface Mount | Gull Wing | -30°C ~ 70°C |
|
|
G6K 1387HRELAY RF DPDT 1A 5V T&R |
9,300 |
|
数据手册 |
G6K-RF | Box | Active | Non Latching | 21.1 mA | 5VDC | DPDT (2 Form C) | 1 A | 125VAC, 60VDC - Max | 4 VDC | 0.5 VDC | 3 ms | 3 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
|
G6K-2P-RF-DC24RF Relay, 2 Form C, DPDT, Moment |
269 |
|
数据手册 |
G6K-RF | Bulk | Active | Non Latching | 4.6 mA | 24VDC | DPDT (2 Form C) | 1 A | 125VAC, 60VDC - Max | 19.2 VDC | 2.4 VDC | 3 ms | 3 ms | - | Through Hole | PC Pin | -40°C ~ 70°C |
|
|
G6K 1486FLOW SIGNAL RELAY |
269 |
|
数据手册 |
G6K-RF | Bulk | Active | Non Latching | 4.6 mA | 24VDC | DPDT (2 Form C) | 1 A | 125VAC, 60VDC - Max | 19.2 VDC | 2.4 VDC | 3 ms | 3 ms | - | Through Hole | PC Pin | -40°C ~ 70°C |
|
|
G6K 1219GRELAY RF DPDT 1A 5V |
362 |
|
数据手册 |
G6K-RF | Bulk | Active | Latching, Single Coil | 21.1 mA | 5VDC | DPDT (2 Form C) | 1 A | 125VAC, 60VDC - Max | 3.75 VDC | - | 3 ms | 3 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
|
G6KU-2F-RF-DC5RELAY |
362 |
|
数据手册 |
G6K-RF | - | Active | Latching, Single Coil | 21.1 mA | 5VDC | DPDT (2 Form C) | 1 A | 125VAC, 60VDC - Max | 3.75 VDC | - | 3 ms | 3 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
