高频（RF）继电器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 线圈类型 | 线圈电流 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 特性 | 安装类型 | 端接样式 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1617104-9RELAY RF DPDT 1A 5V |
4,401 |
|
数据手册 |
MW6, CII | Bulk | Obsolete | Non Latching | 100 mA | 5VDC | DPDT (2 Form C) | 1 A | 28VDC - Nom | 3.6 VDC | - | 4 ms | 3 ms | - | Through Hole | PC Pin | -55°C ~ 85°C |
|
|
1-1617100-2RELAY RF DPDT 1A 18V |
4,468 |
|
数据手册 |
MW4HP, CII | Bulk | Obsolete | Non Latching | 20 mA | 18VDC | DPDT (2 Form C) | 1 A | 28VDC - Nom | 10.5 VDC | 0.9 VDC | 2 ms | 1.5 ms | - | Through Hole | PC Pin | -65°C ~ 125°C |
|
|
1617107-2RELAY RF DPDT 1A 12V |
4,138 |
|
数据手册 |
MW6S, CII | Bulk | Obsolete | Non Latching | 14 mA | 12VDC | DPDT (2 Form C) | 1 A | 28VDC - Nom | 9 VDC | - | 4 ms | 2 ms | - | Through Hole | PC Pin | -65°C ~ 125°C |
|
|
MW6HP-18PRELAY RF DPDT 1A 18V |
2,284 |
|
数据手册 |
MW6HP, CII | Bulk | Active | Non Latching | 20 mA | 18VDC | DPDT (2 Form C) | 1 A | 28VDC - Nom | 10.5 VDC | 0.9 VDC | 2 ms | 1.5 ms | - | Through Hole | PC Pin | -65°C ~ 125°C |
|
|
MW6HP-5PRELAY RF DPDT 1A 5V |
2,006 |
|
数据手册 |
MW6HP, CII | Bulk | Active | Non Latching | 100 mA | 5VDC | DPDT (2 Form C) | 1 A | 28VDC - Nom | 2.7 VDC | 0.22 VDC | 2 ms | 1.5 ms | - | Through Hole | PC Pin | -65°C ~ 125°C |
|
RK1-5VRELAY RF SPDT 10MA 5V |
2,178 |
|
数据手册 |
RK | Tube | Obsolete | Non Latching | 40 mA | 5VDC | SPDT (1 Form C) | 10 mA | 30VDC - Max | 3.75 VDC | 0.5 VDC | 10 ms | 6 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 70°C |
|
|
RK1-12VRELAY RF SPDT 10MA 12V |
3,875 |
|
数据手册 |
RK | Tube | Obsolete | Non Latching | 16.7 mA | 12VDC | SPDT (1 Form C) | 10 mA | 30VDC - Max | 9 VDC | 1.2 VDC | 10 ms | 6 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 70°C |
|
|
RK1-24VRELAY RF SPDT 10MA 24V |
3,843 |
|
数据手册 |
RK | Tube | Obsolete | Non Latching | 8.3 mA | 24VDC | SPDT (1 Form C) | 10 mA | 30VDC - Max | 18 VDC | 2.4 VDC | 10 ms | 6 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 70°C |
|

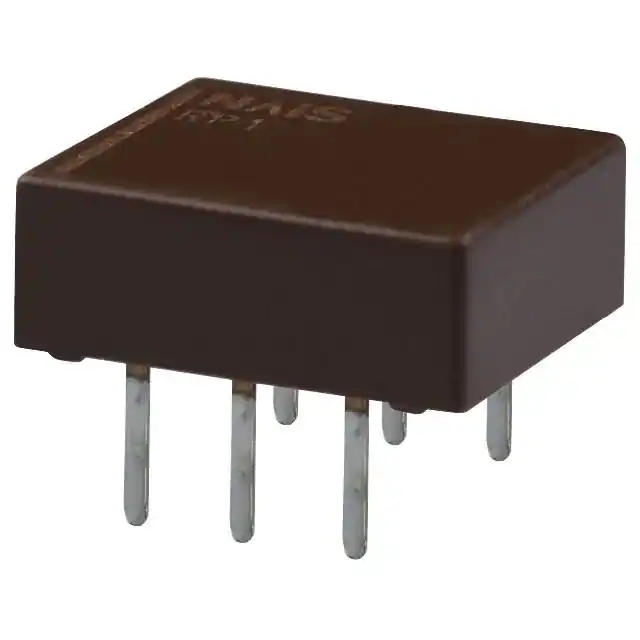

RP1-5VRELAY RF SPDT 100MA 5V |
2,587 |
|
数据手册 |
RP | Tube | Obsolete | Non Latching | 28.1 mA | 5VDC | SPDT (1 Form C) | 100 mA | 30VDC - Nom | 3.75 VDC | 0.5 VDC | 3 ms | 2 ms | - | Through Hole | PC Pin | -40°C ~ 70°C |
|
|
RP1-12VRELAY RF SPDT 100MA 12V |
4,409 |
|
数据手册 |
RP | Tube | Obsolete | Non Latching | 11.7 mA | 12VDC | SPDT (1 Form C) | 100 mA | 30VDC - Nom | 9 VDC | 1.2 VDC | 3 ms | 2 ms | - | Through Hole | PC Pin | -40°C ~ 70°C |
|
|
RP1-24VRELAY RF SPDT 100MA 24V |
1,285 |
|
数据手册 |
RP | Tube | Obsolete | Non Latching | 11.3 mA | 24VDC | SPDT (1 Form C) | 100 mA | 30VDC - Nom | 18 VDC | 2.4 VDC | 3 ms | 2 ms | - | Through Hole | PC Pin | -40°C ~ 70°C |
|
9802-05-00RELAY RF SPST-NO 250MA 5V |
4,198 |
|
数据手册 |
9800 | Bulk | Obsolete | Non Latching | 33.3 mA | 5VDC | SPST-NO (1 Form A) | 250 mA | 100VAC, 100VDC - Max | 3.8 VDC | 0.4 VDC | 0.25 ms | 0.05 ms | Magnetic Shield | Surface Mount | Gull Wing | -20°C ~ 85°C |
|

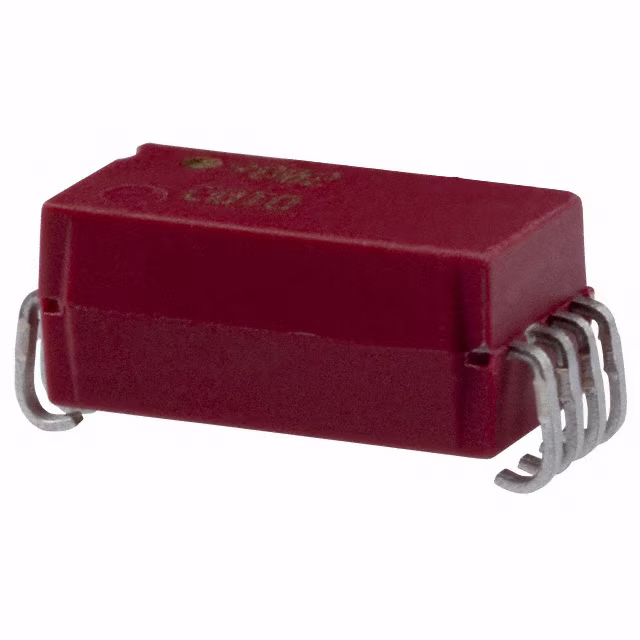

9802-05-20RELAY RF SPST-NO 250MA 5V |
4,136 |
|
数据手册 |
9800 | Tube | Obsolete | Non Latching | 33.3 mA | 5VDC | SPST-NO (1 Form A) | 250 mA | 100VAC, 100VDC - Max | 3.8 VDC | 0.4 VDC | 0.25 ms | 0.05 ms | Magnetic Shield | Surface Mount | J Lead | -20°C ~ 85°C |
|
9290-12-00RELAY RF SPST-NO 500MA 12V |
3,086 |
|
数据手册 |
9290 | Bulk | Active | Non Latching | 20 mA | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 9 VDC | 1 VDC | 0.4 ms | 0.1 ms | Magnetic Shield | Surface Mount | Gull Wing | -20°C ~ 85°C |
|
9802-05-10RELAY RF SPST-NO 250MA 5V |
2,021 |
|
数据手册 |
9800 | Tube | Obsolete | Non Latching | 33.3 mA | 5VDC | SPST-NO (1 Form A) | 250 mA | 100VAC, 100VDC - Max | 3.8 VDC | 0.4 VDC | 0.25 ms | 0.05 ms | Magnetic Shield | Surface Mount | Axial | -20°C ~ 85°C |
|
G6W-1F DC12RELAY RF SPDT 10MA 12V |
3,847 |
|
数据手册 |
G6W | Bulk | Obsolete | Non Latching | 16.7 mA | 12VDC | SPDT (1 Form C) | 10 mA | 30VAC, 30VDC - Max | 9.6 VDC | 1.2 VDC | 10 ms | 10 ms | Sealed - Fully | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
|
G6W-1F DC24RELAY RF SPDT 10MA 24V |
4,174 |
|
数据手册 |
G6W | Bulk | Obsolete | Non Latching | 8.3 mA | 24VDC | SPDT (1 Form C) | 10 mA | 30VAC, 30VDC - Max | 19.2 VDC | 2.4 VDC | 10 ms | 10 ms | Sealed - Fully | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
|
G6W-1F DC4.5RELAY RF SPDT 10MA 4.5V |
4,331 |
|
数据手册 |
G6W | Bulk | Obsolete | Non Latching | 44.4 mA | 4.5VDC | SPDT (1 Form C) | 10 mA | 30VAC, 30VDC - Max | 3.6 VDC | 0.45 VDC | 10 ms | 10 ms | Sealed - Fully | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
G6W-1P DC24RELAY RF SPDT 10MA 24V |
4,131 |
|
数据手册 |
G6W | Bulk | Obsolete | Non Latching | 8.3 mA | 24VDC | SPDT (1 Form C) | 10 mA | 30VAC, 30VDC - Max | 19.2 VDC | 2.4 VDC | 10 ms | 10 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 70°C |
|
ARE1312RELAY RF SPDT 500MA 12V |
2,664 |
|
数据手册 |
ARE | Bulk | Obsolete | Non Latching | 16.7 mA | 12VDC | SPDT (1 Form C) | 500 mA | 30VDC - Max | 9 VDC | 1.2 VDC | 10 ms | 5 ms | - | Through Hole | PC Pin | -40°C ~ 70°C |
