高频（RF）继电器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 线圈类型 | 线圈电流 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 特性 | 安装类型 | 端接样式 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9002-05-00RELAY RF SPST-NO 500MA 5V |
12,359 |
|
数据手册 |
9000 | Tube | Active | Non Latching | 14.3 mA | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 3.75 VDC | 0.4 VDC | 0.35 ms | 0.1 ms | - | Through Hole | PC Pin | -20°C ~ 85°C |
|
|
9002-05-01RELAY RF SPST-NO 500MA 5V |
9,254 |
|
数据手册 |
9000 | Tube | Active | Non Latching | 14.3 mA | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 3.75 VDC | 0.4 VDC | 0.35 ms | 0.1 ms | Diode | Through Hole | PC Pin | -20°C ~ 85°C |
|
9002-05-10RELAY RF SPST-NO 500MA 5V |
1,680 |
|
数据手册 |
9000 | Tube | Active | Non Latching | 14.3 mA | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 3.75 VDC | 0.4 VDC | 0.35 ms | 0.1 ms | Magnetic Shield | Through Hole | PC Pin | -20°C ~ 85°C |
|
9202-05-20RELAY RF SPST-NO 500MA 5V |
7,192 |
|
数据手册 |
9200 | Tube | Active | Non Latching | 33.3 mA | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 3.75 VDC | 0.4 VDC | 0.4 ms | 0.1 ms | Sealed - Hermetically | Surface Mount | J Lead | -20°C ~ 85°C |
|
9002-05-11RELAY RF SPST-NO 500MA 5V |
5,397 |
|
数据手册 |
9000 | Tube | Active | Non Latching | 14.3 mA | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 3.75 VDC | 0.4 VDC | 0.35 ms | 0.1 ms | Diode, Magnetic Shield | Through Hole | PC Pin | -20°C ~ 85°C |
|
9402-05-20RELAY RF SPST-NO 500MA 5V |
9,130 |
|
数据手册 |
9400 | Tube | Active | Non Latching | 25 mA | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 3.75 VDC | 0.4 VDC | 0.4 ms | 0.2 ms | - | Surface Mount | J Lead | -20°C ~ 85°C |
|
9814-05-20RELAY RF SPST-NO 250MA 5V |
26,084 |
|
数据手册 |
9800 | Tube | Active | Non Latching | 33.3 mA | 5VDC | SPST-NO (1 Form A) | 250 mA | 100VAC, 100VDC - Max | 3.8 VDC | 0.4 VDC | 0.25 ms | 0.05 ms | Magnetic Shield | Surface Mount | J Lead | -20°C ~ 85°C |
|
9814-05-00TRRELAY RF SPST-NO 250MA 5V |
8,706 |
|
数据手册 |
9800 | Tape & Reel (TR) | Active | Non Latching | 33.3 mA | 5VDC | SPST-NO (1 Form A) | 250 mA | 100VAC, 100VDC - Max | 3.8 VDC | 0.4 VDC | 0.25 ms | 0.05 ms | Magnetic Shield | Surface Mount | Gull Wing | -20°C ~ 85°C |
|
9290-05-00TRRELAY RF SPST-NO 500MA 5V |
2,654 |
|
数据手册 |
9290 | Tape & Reel (TR) | Active | Non Latching | 31.3 mA | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 3.75 VDC | 0.4 VDC | 0.4 ms | 0.1 ms | Magnetic Shield | Surface Mount | Gull Wing | -20°C ~ 85°C |
|
CRF05-1ARELAY RF SPST-NO 500MA 5V |
6,781 |
|
数据手册 |
CRF | Tape & Reel (TR) | Active | Non Latching | 33.3 mA | 5VDC | SPST-NO (1 Form A) | 500 mA | 170VAC, 170VDC - Max | 3.75 VDC | 0.75 VDC | 0.1 ms | 0.02 ms | - | Surface Mount | SMD (SMT) Tab | -40°C ~ 125°C |
|
|
9814-05-00RELAY RF SPST-NO 250MA 5V |
31,123 |
|
数据手册 |
9800 | Tube | Active | Non Latching | 33.3 mA | 5VDC | SPST-NO (1 Form A) | 250 mA | 100VAC, 100VDC - Max | 3.8 VDC | 0.4 VDC | 0.25 ms | 0.05 ms | Magnetic Shield | Surface Mount | Gull Wing | -20°C ~ 85°C |
|
|
9270-05-00TRRELAY RF SPST-NO 500MA 5V |
17,769 |
|
数据手册 |
9270 | Tape & Reel (TR) | Active | Non Latching | 50 mA | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 2.5 VDC | 0.4 VDC | 0.4 ms | 0.1 ms | Magnetic Shield | Surface Mount | Gull Wing | -20°C ~ 125°C |
|
9402-05-00TRRELAY RF SPST-NO 500MA 5V |
4,015 |
|
数据手册 |
9400 | Tape & Reel (TR) | Active | Non Latching | 25 mA | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 3.75 VDC | 0.4 VDC | 0.4 ms | 0.2 ms | - | Surface Mount | Gull Wing | -20°C ~ 85°C |
|
ARS144HRELAY RF SPDT 500MA 4.5V |
205 |
|
数据手册 |
ARS | Box | Active | Non Latching | 44.4 mA | 4.5VDC | SPDT (1 Form C) | 500 mA | 30VDC - Max | 3.38 VDC | 0.45 VDC | 10 ms | 6 ms | - | Through Hole | PC Pin | -40°C ~ 70°C |
|
CRF05-1ASRELAY RF SPST-NO 500MA 5V |
4,127 |
|
数据手册 |
CRF | Tape & Reel (TR) | Active | Non Latching | 33.3 mA | 5VDC | SPST-NO (1 Form A) | 500 mA | 170VAC, 170VDC - Max | 3.75 VDC | 0.75 VDC | 0.1 ms | 0.02 ms | - | Surface Mount | BGA | -40°C ~ 125°C |
|
ARS1412RELAY RF SPDT 500MA 12V |
993 |
|
数据手册 |
ARS | Tube | Active | Non Latching | 16.7 mA | 12VDC | SPDT (1 Form C) | 500 mA | 30VDC - Max | 9 VDC | 1.2 VDC | 10 ms | 6 ms | - | Through Hole | PC Pin | -40°C ~ 70°C |
|
1462051-1RELAY RF SPDT 2A 3V |
3,714 |
|
数据手册 |
HF3, AXICOM | Tape & Reel (TR) | Active | Non Latching | 46.7 mA | 3VDC | SPDT (1 Form C) | 2 A | 250VAC, 220VDC - Max | 2.25 VDC | 0.3 VDC | 5 ms | 4 ms | - | Surface Mount | Gull Wing | -55°C ~ 85°C |
|

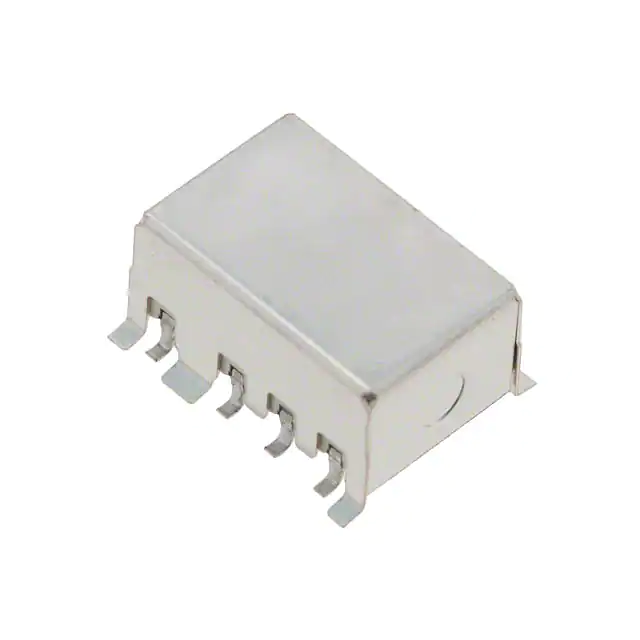

G6K-2F-RF-S DC4.5RELAY RF DPDT 1A 4.5V |
4,218 |
|
数据手册 |
G6K-RF | Tray | Active | Non Latching | 23.2 mA | 4.5VDC | DPDT (2 Form C) | 1 A | 125VAC, 60VDC - Max | 3.6 VDC | 0.45 VDC | 3 ms | 3 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
G6K-2F-RF-TR03 DC5RELAY RF DPDT 1A 5V |
10,006 |
|
数据手册 |
G6K-RF | Tape & Reel (TR) | Active | Non Latching | 21.1 mA | 5VDC | DPDT (2 Form C) | 1 A | 125VAC, 60VDC - Max | 4 VDC | 0.5 VDC | 3 ms | 3 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
|
G6K-2F-RF-TR03 DC12RELAY RF DPDT 1A 12V |
1,518 |
|
数据手册 |
G6K-RF | Tape & Reel (TR) | Active | Non Latching | 9.1 mA | 12VDC | DPDT (2 Form C) | 1 A | 125VAC, 60VDC - Max | 9.6 VDC | 1.2 VDC | 3 ms | 3 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
