加热带、加热毯和加热器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 温度额定值 | 功率密度 @ 12V | 功率（瓦特） | 电压 | 电阻 | 形状 | 长度 | 宽度 | 直径 | 厚度 | 材质 | 附件方式 | 端接方式 | 导线长度 | 材料 - 绝缘 | 线规 | 颜色 | 认证机构 | 特性 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DK1014-2.5FLEX HEATER POLYIMIDE 18" WIRE |
220 |
|
数据手册 |
DK | Box | Active | Flexible Heater, Foil | 302°F (150°C) | - | - | - | - | Square | 1.500" (38.10mm) | 1.500" (38.10mm) | - | - | Polyimide | Pressure Sensitive Adhesive (PSA) | Wire Leads | 18.000" (457.20mm) | - | 30 AWG | Red | - | |
|
DR1014-5FLEX HEATER SIL RUBBER 18" WIRE |
220 |
|
数据手册 |
DR | Box | Active | Flexible Heater, Foil | 302°F (150°C) | - | - | - | - | Square | 1.500" (38.10mm) | 1.500" (38.10mm) | - | - | Silicone Rubber | Pressure Sensitive Adhesive (PSA) | Wire Leads | 18.000" (457.20mm) | - | 30 AWG | Red | - | |
|
|
DK1014-5FLEX HEATER POLYIMIDE 18" WIRE |
210 |
|
数据手册 |
DK | Box | Active | Flexible Heater, Foil | 302°F (150°C) | - | - | - | - | Square | 1.500" (38.10mm) | 1.500" (38.10mm) | - | - | Polyimide | Pressure Sensitive Adhesive (PSA) | Wire Leads | 18.000" (457.20mm) | - | 30 AWG | Red | - | |
|
|
DR1008-2.5FLEX HEATER SIL RUBBER 18" WIRE |
240 |
|
数据手册 |
DR | Box | Active | Flexible Heater, Foil | 302°F (150°C) | - | - | - | - | Rectangular | 5.000" (127.00mm) | 0.500" (12.70mm) | - | - | Silicone Rubber | Pressure Sensitive Adhesive (PSA) | Wire Leads | 18.000" (457.20mm) | - | 30 AWG | Red | - | |
|
|
DR1008-5FLEX HEATER SIL RUBBER 18" WIRE |
240 |
|
数据手册 |
DR | Box | Active | Flexible Heater, Foil | 302°F (150°C) | - | - | - | - | Rectangular | 5.000" (127.00mm) | 0.500" (12.70mm) | - | - | Silicone Rubber | Pressure Sensitive Adhesive (PSA) | Wire Leads | 18.000" (457.20mm) | - | 30 AWG | Red | - | |
|
|
DK1008-2.5FLEX HEATER POLYIMIDE 18" WIRE |
240 |
|
数据手册 |
DK | Box | Active | Flexible Heater, Foil | 302°F (150°C) | - | - | - | - | Rectangular | 5.000" (127.00mm) | 0.500" (12.70mm) | - | - | Polyimide | Pressure Sensitive Adhesive (PSA) | Wire Leads | 18.000" (457.20mm) | - | 30 AWG | Red | - | |
|
|
DK1008-5FLEX HEATER POLYIMIDE 18" WIRE |
210 |
|
数据手册 |
DK | Box | Active | Flexible Heater, Foil | 302°F (150°C) | - | - | - | - | Rectangular | 5.000" (127.00mm) | 0.500" (12.70mm) | - | - | Polyimide | Pressure Sensitive Adhesive (PSA) | Wire Leads | 18.000" (457.20mm) | - | 30 AWG | Red | - | |
|
45-151234FLEX HEATER POLYIMIDE 12" WIRE |
100 |
|
数据手册 |
45 | Bulk | Active | Flexible Heater, Foil | 365°F (185°C) | 1 W/in² | 136 W | - | 1.06 Ohms | Rectangular | 17.000" (431.80mm) | 8.000" (203.20mm) | - | - | Polyimide | Pressure Sensitive Adhesive (PSA) | Wire Leads | 12.000" (304.80mm) | Polytetrafluoroethylene (PTFE) | 20 AWG | Amber | Leads Potted, User Selectable Voltage | |
|
45-333458FLEX HEATER POLYIMIDE 12" WIRE |
100 |
|
数据手册 |
45 | Bulk | Active | Flexible Heater, Foil | 365°F (185°C) | 5 W/in² | 375 W | - | 0.4 Ohms | Rectangular | 15.000" (381.00mm) | 5.000" (127.00mm) | - | - | Polyimide | Pressure Sensitive Adhesive (PSA) | Wire Leads | 12.000" (304.80mm) | Polytetrafluoroethylene (PTFE) | 18 AWG | Amber | Leads Potted, User Selectable Voltage | |
|

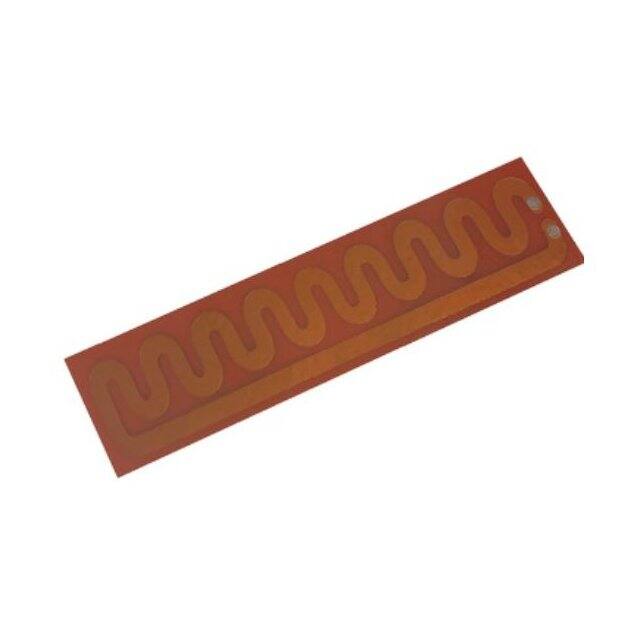

45-882345FLEX HEATER POLYIMIDE 12" WIRE |
100 |
|
数据手册 |
45 | Bulk | Active | Flexible Heater, Foil | 365°F (185°C) | 1 W/in² | 108 W | - | 1.3 Ohms | Rectangular | 18.000" (457.20mm) | 6.000" (152.40mm) | - | - | Polyimide | Pressure Sensitive Adhesive (PSA) | Wire Leads | 12.000" (304.80mm) | Polytetrafluoroethylene (PTFE) | 20 AWG | Amber | Leads Potted, User Selectable Voltage | |
|
45-771234FLEX HEATER POLYIMIDE 12" WIRE |
100 |
|
数据手册 |
45 | Bulk | Active | Flexible Heater, Foil | 365°F (185°C) | 1 W/in² | 102 W | - | 1.4 Ohms | Rectangular | 17.000" (431.80mm) | 6.000" (152.40mm) | - | - | Polyimide | Pressure Sensitive Adhesive (PSA) | Wire Leads | 12.000" (304.80mm) | Polytetrafluoroethylene (PTFE) | 20 AWG | Amber | Leads Potted, User Selectable Voltage | |
|
45-771236FLEX HEATER POLYIMIDE 12" WIRE |
100 |
|
数据手册 |
45 | Bulk | Active | Flexible Heater, Foil | 365°F (185°C) | 5 W/in² | 510 W | - | 0.3 Ohms | Rectangular | 17.000" (431.80mm) | 6.000" (152.40mm) | - | - | Polyimide | Pressure Sensitive Adhesive (PSA) | Wire Leads | 12.000" (304.80mm) | Polytetrafluoroethylene (PTFE) | 18 AWG | Amber | Leads Potted, User Selectable Voltage | |
|
45-882349FLEX HEATER POLYIMIDE 12" WIRE |
100 |
|
数据手册 |
45 | Bulk | Active | Flexible Heater, Foil | 365°F (185°C) | 10 W/in² | 1080 W | - | 0.1 Ohms | Rectangular | 18.000" (457.20mm) | 6.000" (152.40mm) | - | - | Polyimide | Pressure Sensitive Adhesive (PSA) | Wire Leads | 12.000" (304.80mm) | Polytetrafluoroethylene (PTFE) | 18 AWG | Amber | Leads Potted, User Selectable Voltage | |
|
45-333456FLEX HEATER POLYIMIDE 12" WIRE |
100 |
|
数据手册 |
45 | Bulk | Active | Flexible Heater, Foil | 365°F (185°C) | 1 W/in² | 75 W | - | 1.9 Ohms | Rectangular | 15.000" (381.00mm) | 5.000" (127.00mm) | - | - | Polyimide | Pressure Sensitive Adhesive (PSA) | Wire Leads | 12.000" (304.80mm) | Polytetrafluoroethylene (PTFE) | 20 AWG | Amber | Leads Potted, User Selectable Voltage | |
|
45-151236FLEX HEATER POLYIMIDE 12" WIRE |
100 |
|
数据手册 |
45 | Bulk | Active | Flexible Heater, Foil | 365°F (185°C) | 5 W/in² | 680 W | - | 0.21 Ohms | Rectangular | 17.000" (431.80mm) | 8.000" (203.20mm) | - | - | Polyimide | Pressure Sensitive Adhesive (PSA) | Wire Leads | 12.000" (304.80mm) | Polytetrafluoroethylene (PTFE) | 18 AWG | Amber | Leads Potted, User Selectable Voltage | |
|
45-151238FLEX HEATER POLYIMIDE 12" WIRE |
100 |
|
数据手册 |
45 | Bulk | Active | Flexible Heater, Foil | 365°F (185°C) | 10 W/in² | 1360 W | - | 0.11 Ohms | Rectangular | 17.000" (431.80mm) | 8.000" (203.20mm) | - | - | Polyimide | Pressure Sensitive Adhesive (PSA) | Wire Leads | 12.000" (304.80mm) | Polytetrafluoroethylene (PTFE) | 18 AWG | Amber | Leads Potted, User Selectable Voltage | |
|
45-333460FLEX HEATER POLYIMIDE 12" WIRE |
100 |
|
数据手册 |
45 | Bulk | Active | Flexible Heater, Foil | 365°F (185°C) | 10 W/in² | 750 W | - | 0.2 Ohms | Rectangular | 15.000" (381.00mm) | 5.000" (127.00mm) | - | - | Polyimide | Pressure Sensitive Adhesive (PSA) | Wire Leads | 12.000" (304.80mm) | Polytetrafluoroethylene (PTFE) | 18 AWG | Amber | Leads Potted, User Selectable Voltage | |
|
45-441238FLEX HEATER POLYIMIDE 12" WIRE |
1,791 |
|
数据手册 |
45 | Bulk | Active | Flexible Heater, Foil | 365°F (185°C) | 10 W/in² | 785.4 W | - | 0.18 Ohms | Circular | - | - | 10.000" (254.00mm) | - | Polyimide | Pressure Sensitive Adhesive (PSA) | Wire Leads | 12.000" (304.80mm) | Polytetrafluoroethylene (PTFE) | 18 AWG | Amber | Leads Potted, User Selectable Voltage | |
|
45-882347FLEX HEATER POLYIMIDE 12" WIRE |
1,688 |
|
数据手册 |
45 | Bulk | Active | Flexible Heater, Foil | 365°F (185°C) | 5 W/in² | 540 W | - | 0.3 Ohms | Rectangular | 18.000" (457.20mm) | 6.000" (152.40mm) | - | - | Polyimide | Pressure Sensitive Adhesive (PSA) | Wire Leads | 12.000" (304.80mm) | Polytetrafluoroethylene (PTFE) | 18 AWG | Amber | Leads Potted, User Selectable Voltage | |
|
45-441234FLEX HEATER POLYIMIDE 12" WIRE |
2,068 |
|
数据手册 |
45 | Bulk | Active | Flexible Heater, Foil | 365°F (185°C) | 1 W/in² | 78.54 W | - | 1.83 Ohms | Circular | - | - | 10.000" (254.00mm) | - | Polyimide | Pressure Sensitive Adhesive (PSA) | Wire Leads | 12.000" (304.80mm) | Polytetrafluoroethylene (PTFE) | 20 AWG | Amber | Leads Potted, User Selectable Voltage |
