加热带、加热毯和加热器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 温度额定值 | 功率密度 @ 12V | 功率（瓦特） | 电压 | 电阻 | 形状 | 长度 | 宽度 | 直径 | 厚度 | 材质 | 附件方式 | 端接方式 | 导线长度 | 材料 - 绝缘 | 线规 | 颜色 | 认证机构 | 特性 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
53-315678FLEX HEATER POLYESTER 12" WIRE |
100 |
|
数据手册 |
53 | Bulk | Active | Flexible Heater, Foil | 250°F (121°C) | 1 W/in² | 375 W | - | 0.38 Ohms | Rectangular | 2.08' (63.50mm) | 15.000" (381.00mm) | - | - | Polyester | Pressure Sensitive Adhesive (PSA) | Wire Leads | 12.000" (304.80mm) | Polytetrafluoroethylene (PTFE) | 18 AWG | Off-White | Leads Potted, User Selectable Voltage | |
|
53-353456FLEX HEATER POLYESTER 12" WIRE |
100 |
|
数据手册 |
53 | Bulk | Active | Flexible Heater, Foil | 250°F (121°C) | 1 W/in² | 408 W | - | 0.35 Ohms | Rectangular | 2' (0.61m) | 17.000" (431.80mm) | - | - | Polyester | Pressure Sensitive Adhesive (PSA) | Wire Leads | 12.000" (304.80mm) | Polytetrafluoroethylene (PTFE) | 18 AWG | Off-White | Leads Potted, User Selectable Voltage | |
|
53-315680FLEX HEATER POLYESTER 12" WIRE |
100 |
|
数据手册 |
53 | Bulk | Active | Flexible Heater, Foil | 250°F (121°C) | 10 W/in² | 3750 W | - | 0.04 Ohms | Rectangular | 2.08' (63.50mm) | 15.000" (381.00mm) | - | - | Polyester | Pressure Sensitive Adhesive (PSA) | Wire Leads | 12.000" (304.80mm) | Polytetrafluoroethylene (PTFE) | 18 AWG | Off-White | Leads Potted, User Selectable Voltage | |
|
53-315679FLEX HEATER POLYESTER 12" WIRE |
100 |
|
数据手册 |
53 | Bulk | Active | Flexible Heater, Foil | 250°F (121°C) | 5 W/in² | 1875 W | - | 0.08 Ohms | Rectangular | 2.08' (63.50mm) | 15.000" (381.00mm) | - | - | Polyester | Pressure Sensitive Adhesive (PSA) | Wire Leads | 12.000" (304.80mm) | Polytetrafluoroethylene (PTFE) | 18 AWG | Off-White | Leads Potted, User Selectable Voltage | |
|
53-391236FLEX HEATER POLYESTER 12" WIRE |
4,771 |
|
数据手册 |
53 | Bulk | Active | Flexible Heater, Foil | 250°F (121°C) | 10 W/in² | 4320 W | - | 0.03 Ohms | Rectangular | 2' (0.61m) | 18.000" (457.20mm) | - | - | Polyester | Pressure Sensitive Adhesive (PSA) | Wire Leads | 12.000" (304.80mm) | Polytetrafluoroethylene (PTFE) | 18 AWG | Off-White | Leads Potted, User Selectable Voltage | |
|
BS0101040LSILICONE RUBBER HEATING TAPES (B |
3,791 |
|
数据手册 |
BS0 | Bulk | Active | Heat Tape | 450°F (232°C) | 4.3 W/in² | 209 W | 120V | - | Rectangular | 4' (1.22m) | 1.000" (25.40mm) | - | - | Silicone Rubber | No Pressure Sensitive Adhesive (PSA) | Wire Leads | 10.000" (254.00mm) | - | - | Brown | Leads Potted, User Selectable Voltage | |
|
|
BS0051120LSILICONE RUBBER HEATING TAPES (B |
2,529 |
|
数据手册 |
BS0 | Bulk | Active | Heat Tape | 450°F (232°C) | 4.3 W/in² | 313 W | 120V | - | Rectangular | 12' (3.66m) | 0.500" (12.70mm) | - | - | Silicone Rubber | No Pressure Sensitive Adhesive (PSA) | Wire Leads | 10.000" (254.00mm) | - | - | Brown | Leads Potted, User Selectable Voltage | |
|
DK1022-2.5FLEX HEATER POLYIMIDE 18" WIRE |
250 |
|
数据手册 |
DK | Box | Active | Flexible Heater, Foil | 302°F (150°C) | - | - | - | - | Rectangular | 8.000" (203.20mm) | 4.000" (101.60mm) | - | - | Polyimide | Pressure Sensitive Adhesive (PSA) | Wire Leads | 18.000" (457.20mm) | - | 28 AWG | Red | - | |
|
DR1022-5FLEX HEATER SIL RUBBER 18" WIRE |
250 |
|
数据手册 |
DR | Box | Active | Flexible Heater, Foil | 302°F (150°C) | - | - | - | - | Rectangular | 8.000" (203.20mm) | 4.000" (101.60mm) | - | - | Silicone Rubber | Pressure Sensitive Adhesive (PSA) | Wire Leads | 18.000" (457.20mm) | - | 28 AWG | Red | - | |
|
|
DR1022-2.5FLEX HEATER SIL RUBBER 18" WIRE |
250 |
|
数据手册 |
DR | Box | Active | Flexible Heater, Foil | 302°F (150°C) | - | - | - | - | Rectangular | 8.000" (203.20mm) | 4.000" (101.60mm) | - | - | Silicone Rubber | Pressure Sensitive Adhesive (PSA) | Wire Leads | 18.000" (457.20mm) | - | 28 AWG | Red | - | |
|
|
DK1022-5FLEX HEATER POLYIMIDE 18" WIRE |
240 |
|
数据手册 |
DK | Box | Active | Flexible Heater, Foil | 302°F (150°C) | - | - | - | - | Rectangular | 8.000" (203.20mm) | 4.000" (101.60mm) | - | - | Polyimide | Pressure Sensitive Adhesive (PSA) | Wire Leads | 18.000" (457.20mm) | - | 28 AWG | Red | - | |
|
53-326791FLEX HEATER POLYESTER 12" WIRE |
100 |
|
数据手册 |
53 | Bulk | Active | Flexible Heater, Foil | 250°F (121°C) | 10 W/in² | 4500 W | - | 0.03 Ohms | Rectangular | 2.5' (76.20mm) | 15.000" (381.00mm) | - | - | Polyester | Pressure Sensitive Adhesive (PSA) | Wire Leads | 12.000" (304.80mm) | Polytetrafluoroethylene (PTFE) | 18 AWG | Off-White | Leads Potted, User Selectable Voltage | |
|

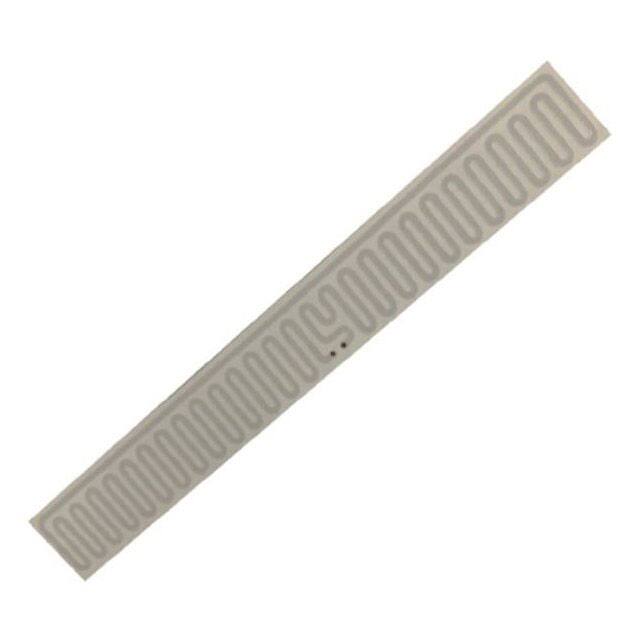

53-326789FLEX HEATER POLYESTER 12" WIRE |
100 |
|
数据手册 |
53 | Bulk | Active | Flexible Heater, Foil | 250°F (121°C) | 1 W/in² | 450 W | - | 0.32 Ohms | Rectangular | 2.5' (76.20mm) | 15.000" (381.00mm) | - | - | Polyester | Pressure Sensitive Adhesive (PSA) | Wire Leads | 12.000" (304.80mm) | Polytetrafluoroethylene (PTFE) | 18 AWG | Off-White | Leads Potted, User Selectable Voltage | |
|
53-326790FLEX HEATER POLYESTER 12" WIRE |
100 |
|
数据手册 |
53 | Bulk | Active | Flexible Heater, Foil | 250°F (121°C) | 5 W/in² | 2250 W | - | 0.06 Ohms | Rectangular | 2.5' (76.20mm) | 15.000" (381.00mm) | - | - | Polyester | Pressure Sensitive Adhesive (PSA) | Wire Leads | 12.000" (304.80mm) | Polytetrafluoroethylene (PTFE) | 18 AWG | Off-White | Leads Potted, User Selectable Voltage | |
|
|
DK1025-2.5FLEX HEATER POLYIMIDE 18" WIRE |
250 |
|
数据手册 |
DK | Box | Active | Flexible Heater, Foil | 302°F (150°C) | - | - | - | - | Square | 6.000" (152.40mm) | 6.000" (152.40mm) | - | - | Polyimide | Pressure Sensitive Adhesive (PSA) | Wire Leads | 18.000" (457.20mm) | - | 28 AWG | Red | - | |
|
|
DR1025-5FLEX HEATER SIL RUBBER 18" WIRE |
250 |
|
数据手册 |
DR | Box | Active | Flexible Heater, Foil | 302°F (150°C) | - | - | - | - | Square | 6.000" (152.40mm) | 6.000" (152.40mm) | - | - | Silicone Rubber | Pressure Sensitive Adhesive (PSA) | Wire Leads | 18.000" (457.20mm) | - | 28 AWG | Red | - | |
|
|
DK1025-5FLEX HEATER POLYIMIDE 18" WIRE |
250 |
|
数据手册 |
DK | Box | Active | Flexible Heater, Foil | 302°F (150°C) | - | - | - | - | Square | 6.000" (152.40mm) | 6.000" (152.40mm) | - | - | Polyimide | Pressure Sensitive Adhesive (PSA) | Wire Leads | 18.000" (457.20mm) | - | 28 AWG | Red | - | |
|
|
DR1025-2.5FLEX HEATER SIL RUBBER 18" WIRE |
250 |
|
数据手册 |
DR | Box | Active | Flexible Heater, Foil | 302°F (150°C) | - | - | - | - | Square | 6.000" (152.40mm) | 6.000" (152.40mm) | - | - | Silicone Rubber | Pressure Sensitive Adhesive (PSA) | Wire Leads | 18.000" (457.20mm) | - | 28 AWG | Red | - | |
|
45-293456FLEX HEATER POLYIMIDE 12" WIRE |
4,759 |
|
数据手册 |
45 | Bulk | Active | Flexible Heater, Foil | 365°F (185°C) | 1 W/in² | 225 W | - | 0.64 Ohms | Square | 15.000" (381.00mm) | 15.000" (381.00mm) | - | - | Polyimide | Pressure Sensitive Adhesive (PSA) | Wire Leads | 12.000" (304.80mm) | Polytetrafluoroethylene (PTFE) | 18 AWG | Amber | Leads Potted, User Selectable Voltage | |
|
53-364568FLEX HEATER POLYESTER 12" WIRE |
100 |
|
数据手册 |
53 | Bulk | Active | Flexible Heater, Foil | 250°F (121°C) | 5 W/in² | 2550 W | - | 0.06 Ohms | Rectangular | 2.5' (76.20mm) | 17.000" (431.80mm) | - | - | Polyester | Pressure Sensitive Adhesive (PSA) | Wire Leads | 12.000" (304.80mm) | Polytetrafluoroethylene (PTFE) | 18 AWG | Off-White | Leads Potted, User Selectable Voltage |
