加热带、加热毯和加热器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 温度额定值 | 功率密度 @ 12V | 功率（瓦特） | 电压 | 电阻 | 形状 | 长度 | 宽度 | 直径 | 厚度 | 材质 | 附件方式 | 端接方式 | 导线长度 | 材料 - 绝缘 | 线规 | 颜色 | 认证机构 | 特性 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
444568FLEX HEATER 12" WIRE |
100 |
|
数据手册 |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
45-666791FLEX HEATER POLYIMIDE 12" WIRE |
1,060 |
|
数据手册 |
45 | Bulk | Active | Flexible Heater, Foil | 365°F (185°C) | 5 W/in² | 360 W | - | 0.4 Ohms | Rectangular | 12.000" (304.80mm) | 6.000" (152.40mm) | - | - | Polyimide | Pressure Sensitive Adhesive (PSA) | Wire Leads | 12.000" (304.80mm) | Polytetrafluoroethylene (PTFE) | 18 AWG | Amber | Leads Potted, User Selectable Voltage | |
|
45-222349FLEX HEATER POLYIMIDE 12" WIRE |
1,372 |
|
数据手册 |
45 | Bulk | Active | Flexible Heater, Foil | 365°F (185°C) | 10 W/in² | 500 W | - | 0.3 Ohms | Rectangular | 10.000" (254.00mm) | 5.000" (127.00mm) | - | - | Polyimide | Pressure Sensitive Adhesive (PSA) | Wire Leads | 12.000" (304.80mm) | Polytetrafluoroethylene (PTFE) | 18 AWG | Amber | Leads Potted, User Selectable Voltage | |
|
45-421236FLEX HEATER POLYIMIDE 12" WIRE |
3,627 |
|
数据手册 |
45 | Bulk | Active | Flexible Heater, Foil | 365°F (185°C) | 5 W/in² | 251.35 W | - | 0.57 Ohms | Circular | - | - | 8.000" (203.20mm) | - | Polyimide | Pressure Sensitive Adhesive (PSA) | Wire Leads | 12.000" (304.80mm) | Polytetrafluoroethylene (PTFE) | 18 AWG | Amber | Leads Potted, User Selectable Voltage | |
|
45-555682FLEX HEATER POLYIMIDE 12" WIRE |
1,687 |
|
数据手册 |
45 | Bulk | Active | Flexible Heater, Foil | 365°F (185°C) | 10 W/in² | 600 W | - | 0.2 Ohms | Rectangular | 10.000" (254.00mm) | 6.000" (152.40mm) | - | - | Polyimide | Pressure Sensitive Adhesive (PSA) | Wire Leads | 12.000" (304.80mm) | Polytetrafluoroethylene (PTFE) | 18 AWG | Amber | Leads Potted, User Selectable Voltage | |
|
45-111236FLEX HEATER POLYIMIDE 12" WIRE |
4,364 |
|
数据手册 |
45 | Bulk | Active | Flexible Heater, Foil | 365°F (185°C) | 5 W/in² | 200 W | - | 0.7 Ohms | Rectangular | 10.000" (254.00mm) | 4.000" (101.60mm) | - | - | Polyimide | Pressure Sensitive Adhesive (PSA) | Wire Leads | 12.000" (304.80mm) | Polytetrafluoroethylene (PTFE) | 18 AWG | Amber | Leads Potted, User Selectable Voltage | |
|
45-111238FLEX HEATER POLYIMIDE 12" WIRE |
3,754 |
|
数据手册 |
45 | Bulk | Active | Flexible Heater, Foil | 365°F (185°C) | 10 W/in² | 400 W | - | 0.4 Ohms | Rectangular | 10.000" (254.00mm) | 4.000" (101.60mm) | - | - | Polyimide | Pressure Sensitive Adhesive (PSA) | Wire Leads | 12.000" (304.80mm) | Polytetrafluoroethylene (PTFE) | 18 AWG | Amber | Leads Potted, User Selectable Voltage | |
|
45-666789FLEX HEATER POLYIMIDE 12" WIRE |
4,679 |
|
数据手册 |
45 | Bulk | Active | Flexible Heater, Foil | 365°F (185°C) | 1 W/in² | 72 W | - | 2 Ohms | Rectangular | 12.000" (304.80mm) | 6.000" (152.40mm) | - | - | Polyimide | Pressure Sensitive Adhesive (PSA) | Wire Leads | 12.000" (304.80mm) | Polytetrafluoroethylene (PTFE) | 20 AWG | Amber | Leads Potted, User Selectable Voltage | |
|
45-555678FLEX HEATER POLYIMIDE 12" WIRE |
3,214 |
|
数据手册 |
45 | Bulk | Active | Flexible Heater, Foil | 365°F (185°C) | 1 W/in² | 60 W | - | 2.4 Ohms | Rectangular | 10.000" (254.00mm) | 6.000" (152.40mm) | - | - | Polyimide | Pressure Sensitive Adhesive (PSA) | Wire Leads | 12.000" (304.80mm) | Polytetrafluoroethylene (PTFE) | 20 AWG | Amber | Leads Potted, User Selectable Voltage | |
|
45-222347FLEX HEATER POLYIMIDE 12" WIRE |
4,937 |
|
数据手册 |
45 | Bulk | Active | Flexible Heater, Foil | 365°F (185°C) | 5 W/in² | 250 W | - | 0.6 Ohms | Rectangular | 10.000" (254.00mm) | 5.000" (127.00mm) | - | - | Polyimide | Pressure Sensitive Adhesive (PSA) | Wire Leads | 12.000" (304.80mm) | Polytetrafluoroethylene (PTFE) | 18 AWG | Amber | Leads Potted, User Selectable Voltage | |
|
45-555680FLEX HEATER POLYIMIDE 12" WIRE |
1,474 |
|
数据手册 |
45 | Bulk | Active | Flexible Heater, Foil | 365°F (185°C) | 5 W/in² | 300 W | - | 0.5 Ohms | Rectangular | 10.000" (254.00mm) | 6.000" (152.40mm) | - | - | Polyimide | Pressure Sensitive Adhesive (PSA) | Wire Leads | 12.000" (304.80mm) | Polytetrafluoroethylene (PTFE) | 18 AWG | Amber | Leads Potted, User Selectable Voltage | |
|
45-666793FLEX HEATER POLYIMIDE 12" WIRE |
1,336 |
|
数据手册 |
45 | Bulk | Active | Flexible Heater, Foil | 365°F (185°C) | 10 W/in² | 720 W | - | 0.2 Ohms | Rectangular | 12.000" (304.80mm) | 6.000" (152.40mm) | - | - | Polyimide | Pressure Sensitive Adhesive (PSA) | Wire Leads | 12.000" (304.80mm) | Polytetrafluoroethylene (PTFE) | 18 AWG | Amber | Leads Potted, User Selectable Voltage | |
|
45-135680FLEX HEATER POLYIMIDE 12" WIRE |
3,764 |
|
数据手册 |
45 | Bulk | Active | Flexible Heater, Foil | 365°F (185°C) | 5 W/in² | 320 W | - | 0.45 Ohms | Square | 8.000" (203.20mm) | 8.000" (203.20mm) | - | - | Polyimide | Pressure Sensitive Adhesive (PSA) | Wire Leads | 12.000" (304.80mm) | Polytetrafluoroethylene (PTFE) | 18 AWG | Amber | Leads Potted, User Selectable Voltage | |
|
45-222345FLEX HEATER POLYIMIDE 12" WIRE |
1,699 |
|
数据手册 |
45 | Bulk | Active | Flexible Heater, Foil | 365°F (185°C) | 1 W/in² | 50 W | - | - | Rectangular | 10.000" (254.00mm) | 5.000" (127.00mm) | - | - | Polyimide | Pressure Sensitive Adhesive (PSA) | Wire Leads | 12.000" (304.80mm) | Polytetrafluoroethylene (PTFE) | 20 AWG | Amber | Leads Potted, User Selectable Voltage | |
|
45-421234FLEX HEATER POLYIMIDE 12" WIRE |
1,985 |
|
数据手册 |
45 | Bulk | Active | Flexible Heater, Foil | 365°F (185°C) | 1 W/in² | 50.27 W | - | - | Circular | - | - | 8.000" (203.20mm) | - | Polyimide | Pressure Sensitive Adhesive (PSA) | Wire Leads | 12.000" (304.80mm) | Polytetrafluoroethylene (PTFE) | 20 AWG | Amber | Leads Potted, User Selectable Voltage | |
|
45-444571FLEX HEATER POLYIMIDE 12" WIRE |
3,320 |
|
数据手册 |
45 | Bulk | Active | Flexible Heater, Foil | 365°F (185°C) | 10 W/in² | 360 W | - | 0.4 Ohms | Square | 6.000" (152.40mm) | 6.000" (152.40mm) | - | - | Polyimide | Pressure Sensitive Adhesive (PSA) | Wire Leads | 12.000" (304.80mm) | Polytetrafluoroethylene (PTFE) | 18 AWG | Amber | Leads Potted, User Selectable Voltage | |
|

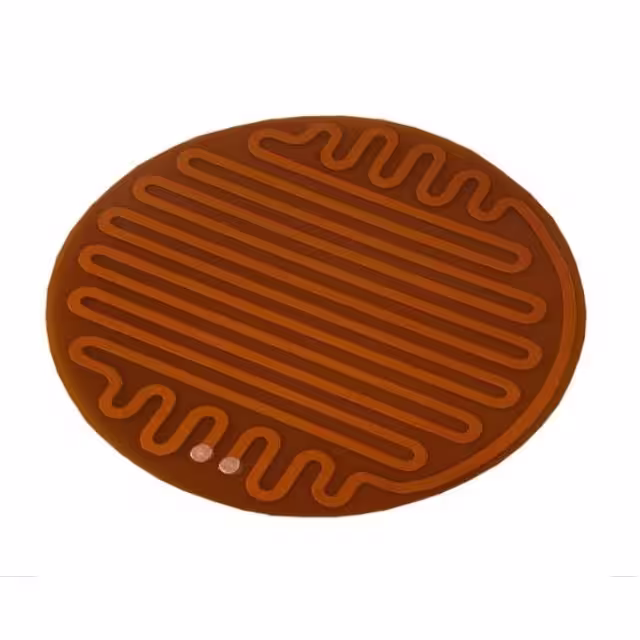

45-421238FLEX HEATER POLYIMIDE 12" WIRE |
4,510 |
|
数据手册 |
45 | Bulk | Active | Flexible Heater, Foil | 365°F (185°C) | 10 W/in² | 502.7 W | - | 0.29 Ohms | Circular | - | - | 8.000" (203.20mm) | - | Polyimide | Pressure Sensitive Adhesive (PSA) | Wire Leads | 12.000" (304.80mm) | Polytetrafluoroethylene (PTFE) | 18 AWG | Amber | Leads Potted, User Selectable Voltage | |
|
45-135682FLEX HEATER POLYIMIDE 12" WIRE |
1,557 |
|
数据手册 |
45 | Bulk | Active | Flexible Heater, Foil | 365°F (185°C) | 10 W/in² | 640 W | - | 0.23 Ohms | Square | 8.000" (203.20mm) | 8.000" (203.20mm) | - | - | Polyimide | Pressure Sensitive Adhesive (PSA) | Wire Leads | 12.000" (304.80mm) | Polytetrafluoroethylene (PTFE) | 18 AWG | Amber | Leads Potted, User Selectable Voltage | |
|
|
45-444569FLEX HEATER POLYIMIDE 12" WIRE |
4,154 |
|
数据手册 |
45 | Bulk | Active | Flexible Heater, Foil | 365°F (185°C) | 5 W/in² | 180 W | - | 0.8 Ohms | Square | 6.000" (152.40mm) | 6.000" (152.40mm) | - | - | Polyimide | Pressure Sensitive Adhesive (PSA) | Wire Leads | 12.000" (304.80mm) | Polytetrafluoroethylene (PTFE) | 20 AWG | Amber | Leads Potted, User Selectable Voltage | |
|
53-666790FLEX HEATER POLYESTER 12" WIRE |
4,466 |
|
数据手册 |
53 | Bulk | Active | Flexible Heater, Foil | 250°F (121°C) | 1 W/in² | 72 W | - | 2 Ohms | Rectangular | 12.000" (304.80mm) | 6.000" (152.40mm) | - | - | Polyester | Pressure Sensitive Adhesive (PSA) | Wire Leads | 12.000" (304.80mm) | Polytetrafluoroethylene (PTFE) | 20 AWG | Off-White | Leads Potted, User Selectable Voltage |
