接地编织带、接地带
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 材质 | 尺寸，供应时 | 厚度 | 载体数量 | 线规 - 末端 | 长度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1232 SV002GROUND BRAID FLAT 0.38" X 500' |
3,315 |
|
数据手册 |
FIT® | Spool | Active | Flat | Copper, Tinned | 0.375" (9.53mm, 3/8") - Width | 0.030" (0.76mm) | 24 | 36 AWG | 500.0' (152.40m) |
|
|
1234 SV001GROUND BRAID FLAT 0.75" X 1000' |
1,194 |
|
数据手册 |
FIT® | Spool | Active | Flat | Copper, Tinned | 0.750" (19.05mm, 3/4") - Width | 0.040" (1.02mm) | 48 | 36 AWG | 1000' (304.80m) |
|
L-1012-9GROUND BRAID FLAT 1" X 0.8' |
3,328 |
|
数据手册 |
CHO-STRAP® | Box | Active | Flat, Busbar | Copper, Tinned | 1.000" (25.40mm) - Width | 0.011" (0.28mm) | - | - | 0.8' (0.23m) |
|

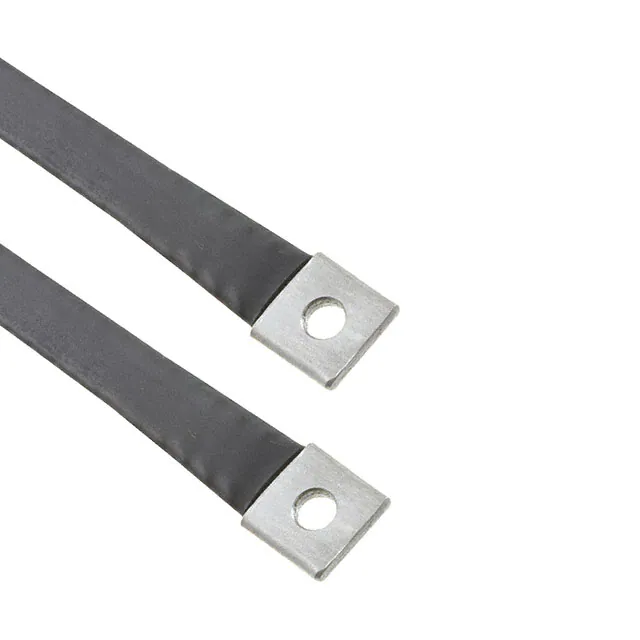

2076025018GROUND BRAID FLAT 0.54" X 1.5' |
4,058 |
|
数据手册 |
Triton 207602 | Bulk | Active | Flat, Busbar | Copper, Tin Plated | 0.540" (13.72mm) - Width | - | - | - | 1.5' (0.46m) |
|
2076025024GROUND BRAID FLAT 0.75" X 2' |
1,309 |
|
数据手册 |
Triton 207602 | Bulk | Active | Flat, Busbar | Copper, Tin Plated | 0.750" (19.05mm, 3/4") - Width | - | - | - | 2.0' (0.61m) |
|
MBB0.13BRS25GROUND BRAID TUBE 0.13"DIA X 25' |
1,917 |
|
数据手册 |
Brass Beauty | Spool | Active | Tubular | Brass | 0.125" (3.18mm, 1/8") - Outer Dia | 0.015" (0.38mm) | - | - | 25.0' (7.62m) |
|
MBB0.25BRS25GROUND BRAID TUBE 0.25"DIA X 25' |
2,638 |
|
数据手册 |
Brass Beauty | Spool | Active | Tubular | Brass | 0.250" (6.35mm, 1/4") - Outer Dia | 0.027" (0.69mm) | - | - | 25.0' (7.62m) |
|
2160 SV003GROUND BRAID TUBE 0.03"DIAX250' |
2,443 |
|
数据手册 |
FIT® | Spool | Active | Tubular | Copper, Tinned | 0.031" (0.79mm, 1/32") - Inner Dia | - | 24 | 36 AWG | 250.0' (76.20m) |
|
MBN1.38SV50GROUND BRAID TUBE 1.38"DIA X 50' |
1,369 |
|
数据手册 |
Metal Braid | Spool | Active | Tubular | Copper, Tinned | 1.375" (34.93mm, 1 3/8") - Outer Dia | 0.025" (0.64mm) | 48 | 30 AWG | 50.0' (15.24m) |
|
|
2162 SV003GROUND BRAID TUBE 0.06"DIAX250' |
3,300 |
|
数据手册 |
FIT® | Spool | Active | Tubular | Copper, Tinned | 0.062" (1.57mm, 1/16") - Inner Dia | - | 24 | 36 AWG | 250.0' (76.20m) |
|
|
2163 SV003GROUND BRAID TUBE 0.08"DIAX250' |
1,917 |
|
数据手册 |
FIT® | Spool | Active | Tubular | Copper, Tinned | 0.078" (1.98mm, 5/64") - Inner Dia | - | 24 | 36 AWG | 250.0' (76.20m) |
|
|
1222 SV002GROUND BRAID FLAT 0.03" X 500' |
4,171 |
|
数据手册 |
FIT® | Spool | Active | Flat | Copper, Tinned | 0.031" (0.79mm, 1/32") - Width | 0.020" (0.51mm) | 16 | 36 AWG | 500.0' (152.40m) |
|
MBS1.00SV50GROUND BRAID TUBULAR 1"DIA X 50' |
1,955 |
|
数据手册 |
Metal Braid | Spool | Active | Tubular | Copper, Silver Plated | 1.000" (25.40mm) - Outer Dia | - | 48 | 30 AWG | 50.0' (15.24m) |
|
|
2156 NA005GROUND BRAID TUBE 0.25"DIAX100' |
4,261 |
|
数据手册 |
FIT® | Bulk | Active | Tubular | Brass | 0.250" (6.35mm, 1/4") - Outer Dia | 0.027" (0.69mm) | - | - | 100.0' (30.48m) |
|
|
2132 SV001GROUND BRAID TUBE 0.06"DIAX1000' |
4,481 |
|
数据手册 |
FIT® | Spool | Active | Tubular | Copper, Tinned | 0.062" (1.57mm, 1/16") - Inner Dia | - | 16 | 34 AWG | 1000' (304.80m) |
|
|
1223 SV001GROUND BRAID FLAT 0.05" X 1000' |
2,444 |
|
数据手册 |
FIT® | Spool | Active | Flat | Copper, Tinned | 0.047" (1.19mm, 3/64") - Width | 0.020" (0.51mm) | 24 | 36 AWG | 1000' (304.80m) |
|
|
2152 SV005GROUND BRAID TUBE 0.78"DIAX100' |
2,436 |
|
数据手册 |
FIT® | Spool | Active | Tubular | Copper, Tinned | 0.781" (19.84mm, 25/32") - Inner Dia | - | 48 | 34 AWG | 100.0' (30.48m) |
|
|
2167 SV003GROUND BRAID TUBE 0.16"DIAX250' |
3,847 |
|
数据手册 |
FIT® | Spool | Active | Tubular | Copper, Tinned | 0.156" (3.96mm, 5/32") - Inner Dia | - | 24 | 36 AWG | 250.0' (76.20m) |
|
|
2195 SV005GROUND BRAID TUBE 0.16"DIAX100' |
2,929 |
|
数据手册 |
FIT® | Spool | Active | Tubular | Copper, Silver Plated | 0.156" (3.96mm, 5/32") - Inner Dia | - | 24 | 36 AWG | 100.0' (30.48m) |
|
|
2142 SV002GROUND BRAID TUBE 0.25"DIAX500' |
3,653 |
|
数据手册 |
FIT® | Spool | Active | Tubular | Copper, Tinned | 0.250" (6.35mm, 1/4") - Inner Dia | - | 24 | 34 AWG | 500.0' (152.40m) |
