保险丝座
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 安装类型 | 保险丝尺寸 | 电流额定值（安培） | 适用范围/相关产品 | 保险丝类型 | 保险丝座类型 | 电路数量 | 电压 | 方向 | 端接样式 | 触点材料 | 触点表面处理 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LFPSJ302.ZXIDFUSE HLDR CART 600V 30A DIN RAIL |
4,210 |
|
数据手册 |
LFPSJ | Box | Active | DIN Rail | 0.813" Dia x 2.25" L (20.65mm x 57.15mm) | 30 A | Class J Fuses | Cartridge | Holder | 2 | 600V | - | Screw Terminal, Pressure Plate | - | - | - |
|
LFT602001CSFUSE BLOCK CART 600V 200A DIN |
4,700 |
|
数据手册 |
LFT | Box | Active | DIN Rail | 1.063" Dia x 3.25" L (27mm x 82.55mm) | 200 A | Class T Fuses | Cartridge | Block | 1 | 600V | - | Box Lug | - | - | - |
|
OPM-NG-SC3FUSE HLDR CART 600V 30A DIN RAIL |
1,392 |
|
数据手册 |
OPTIMA® | Bulk | Active | DIN Rail | 0.394" Dia x 1.496" L (10mm x 38mm) | 30 A | Class CC Fuses, 13/32" x 1-1/2" | Cartridge | Holder | 3 | 600V | - | Screw Terminal, Pressure Plate | Copper Alloy | Tin | - |
|
LFR601003CIDFUSE BLOCK CART 600V 100A DIN |
3,799 |
|
数据手册 |
LFR | Box | Active | DIN Rail | 1.339" Dia x 7.874" L (34mm x 200mm) | 100 A | Class R Fuses | Cartridge | Block | 3 | 600V | - | Box Lug | - | - | - |
|

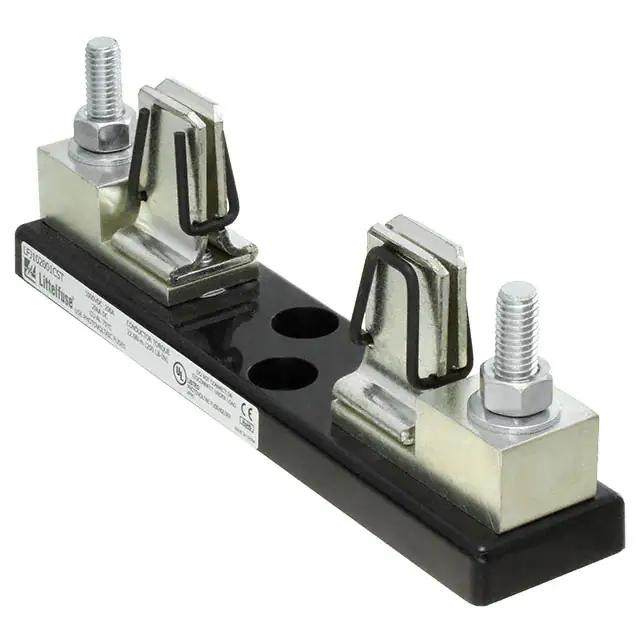

LFJ102001CST1000VDC 200A SPFJ HLDR 1PLE STD |
1,761 |
|
数据手册 |
LFJ1000 | Box | Active | Chassis Mount | 1.496" Dia x 5.75" L (38mm x 146.05mm) | 200 A | Blade Mount Cartridge Fuses | Bolt Down | Block | 1 | 1000V | Horizontal | Box Lug | - | - | - |
|
LFT304001CSFUSE BLOCK CART 300V 400A DIN |
2,855 |
|
数据手册 |
LFT | Box | Active | DIN Rail | 1.311" Dia x 2.75" L (33.3mm x 69.85mm) | 400 A | Class T Fuses | Cartridge | Block | 1 | 300V | - | Box Lug | - | - | - |
|
CH143DUFUSE HLDR 14X51 3POLE |
1,641 |
|
数据手册 |
CH | Bulk | Active | DIN Rail | 0.551" Dia x 2.008" L (14mm x 51mm) | 50 A | 14mm x 51mm | Cartridge | Holder | 3 | 700V | Vertical | Screw Terminal | Copper | - | - |
|
LFJ104001CFUSE BLOK BLT DWN 1000V 400A CHA |
4,726 |
|
数据手册 |
LFJ1000 | Box | Active | Chassis Mount | 2" Dia x 7.126" L (50.8mm x 181mm) | 400 A | Blade Mount Cartridge Fuses | Bolt Down | Block | 1 | 1000V | - | Box Lug | - | - | - |
|
LFJ104501STST1000VDC HLDR STUD TERMINAL 450A |
3,863 |
|
数据手册 |
LFJ1000 | Box | Active | Chassis Mount | 2.5" Dia x 8" L (63.5mm x 203.2mm) | 450 A | Bolt Mount Cartridge Fuses | Bolt Down | Block | 1 | 1000V | Horizontal | Bolt Down | - | - | - |
|
LFJ606003CFUSE BLOCK CART 600V 600A DIN |
3,401 |
|
数据手册 |
LF | Box | Active | DIN Rail | 2.5" Dia x 8" L (63.5mm x 203.2mm) | 600 A | Class J Fuses | Cartridge | Block | 3 | 600V | - | Box Lug | - | - | - |
|
01240060HFUSE CLIP RIVET/SMT 3AG/3AB 63A |
643 |
|
数据手册 |
124 | Bulk | Active | Chassis Mount | 0.394" Dia (10mm) | 40 A | 3AB, 3AG | Cartridge | Clip | 1 | - | Horizontal | PC Pin | Tin | Tin Nickel | - |
|
0752.1242FUSE CLIP CART 500V 10A PCB |
823 |
|
数据手册 |
CQM | Bulk | Active | Through Hole | 0.197" Dia (5mm) | 10 A | 5mm Dia Fuses | Cartridge | Clip | 1 | 500V | Horizontal | PC Pin | Bronze | Silver | - |
|
BK-6012FUSE CLIP BLADE PCB |
125 |
|
数据手册 |
- | Bulk | Active | Through Hole | - | - | ATC, ATO | Blade | Clip | 1 | - | Vertical | PC Pin | Brass | Nickel | - |
|
|
3564FUSE CLIP BLADE 500V 15A PCB |
976 |
|
数据手册 |
- | Bulk | Active | Through Hole | - | 15 A | Miniature (ATM) | Blade | Clip | 1 | 500V | Vertical | PC Pin | Brass | Tin | UL |
|
BK/1A1120-09-RFUSE CLIP CARTRIDGE PCB |
615 |
|
数据手册 |
1AXXXX | Bulk | Active | Through Hole | 0.25" Dia (6.35mm) | - | 1/4" Dia Fuses | Cartridge | Clip | 1 | - | Horizontal | PC Pin | Cartridge Brass | Tin | - |
|
BK/1A4534-06-RFUSE CLIP CARTRIDGE PCB |
794 |
|
数据手册 |
1AXXXX | Bulk | Active | Through Hole | 0.25" Dia (6.35mm) | - | 1/4" Dia Fuses | Cartridge | Clip | 1 | - | Horizontal | PC Pin | Cartridge Brass | Tin | - |
|
BK/1A3399-12-RFUSE CLIP CARTRIDGE PCB |
507 |
|
数据手册 |
1AXXXX | Bulk | Active | Through Hole | 0.197" Dia (5mm) | - | 5mm Dia Fuses | Cartridge | Clip | 1 | - | Horizontal | PC Pin | - | - | - |
|
01550106ZXUFUSE HOLDER CART 32V 6A IN LINE |
3,212 |
|
数据手册 |
155 | Bulk | Active | Free Hanging (In-Line) | 0.25" Dia x 0.75" L (6.35mm x 19.05mm) | 6 A | 1/4" x 3/4" (SFE-6) | Cartridge | Holder | 1 | 32V | - | Crimp | Brass | Nickel | - |
|
|
03450913HX040ACS SHOCK-SAFE FUSEHLDR BODY SUB |
3,666 |
|
数据手册 |
345 | Bulk | Active | Panel Mount | 0.25" Dia x 1.26" L (6.35mm x 32mm) | 20 A | 3AB, 3AG | Cartridge | Holder | 1 | 250V | Horizontal and Vertical | Solder Lug | Copper Alloy | Tin | - |
|
0031.1801FUSE HLDR CART 250V 20A PNL MNT |
3,835 |
|
数据手册 |
FEU | Box | Active | Panel Mount | 0.25" Dia x 1.26" L (6.35mm x 32mm), 5mm x 20mm | 20 A | 3AG, 1/4" x 1-1/4", 5mm x 20mm | Cartridge | Holder | 1 | 250V | - | Solder Lug | Copper Alloy | Tin | - |
