浮子、液位传感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 封装 | 产品状态 | 类型 | 输出类型 | 输出配置 | 电流 | 最小液体比重 | 开关动作水平 | 安装类型 | 材质 - 外壳和棱镜 | 工作温度 | 电压额定值 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

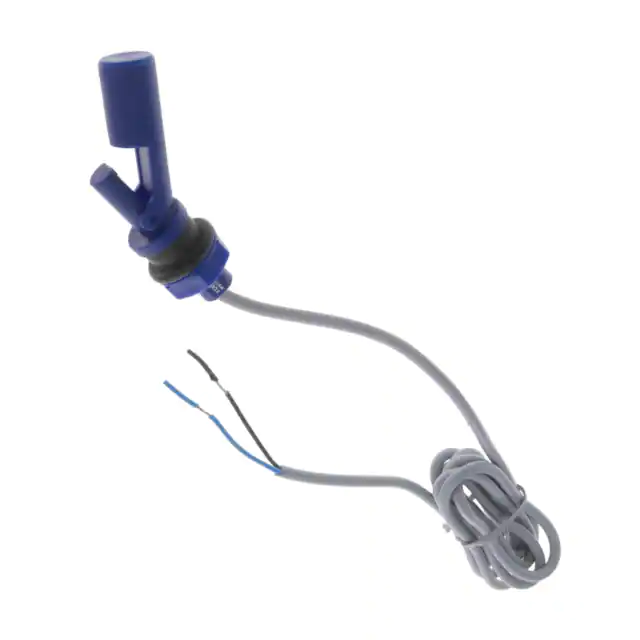

PTFA3415SENSOR LEVEL SWITCH SINGLE FLOAT |
3,920 |
|
数据手册 |
- | Box | Active | Liquid | Switch (Single Float) | NO | 500 mA | 0.6 | - | Panel Mount, M16x2 Thread | Polypropylene (PP) | -10°C ~ 100°C | 300VAC/DC | ||
|

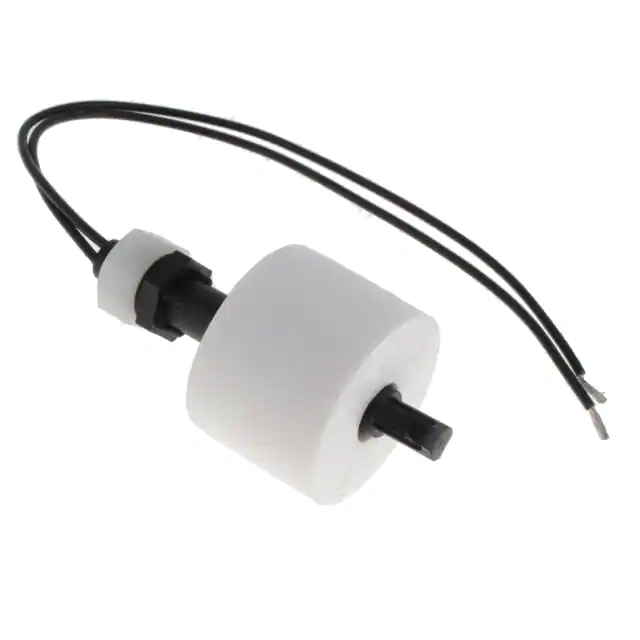

20017616-02SENSOR LEVEL SWITCH SINGLE FLOAT |
1,582 |
|
数据手册 |
- | Box | Active | Liquid | Switch (Single Float) | SPST-NC/NO | 1 A | - | - | Panel Mount, M8 Thread | Polypropylene (PP) | 0°C ~ 70°C | 100V | ||
|
RSF48YFPSENSOR LEVEL SWITCH SINGLE FLOAT |
4,180 |
|
数据手册 |
RSF40 | Bulk | Active | Liquid | Switch (Single Float) | SPST-NC/NO | 600 mA | 0.8 | 0.787" (20mm) | Panel Mount, M16x2 Thread | Polypropylene (PP) | -20°C ~ 100°C | 120VDC, 240VAC | ||
|
PLS-045A-6VAISENSOR LEVEL SWITCH |
4,938 |
|
数据手册 |
- | Bulk | Active | Liquid, Powder | Switch | SPST-NO | 1.5 A | - | 1.831" (46.5mm) | Panel Mount, M10 Thread | Stainless Steel | -40°C ~ 125°C | 250VAC | ||
|
|
PLS-045B-6VAISENSOR LEVEL SWITCH |
1,151 |
|
数据手册 |
- | Bulk | Active | Liquid, Powder | Switch | SPST-NC | 1.5 A | - | 1.831" (46.5mm) | Panel Mount, M10 Thread | Stainless Steel | -40°C ~ 125°C | 250VAC | ||
|
RSF88YPSENSOR LEVEL SWITCH SINGLE FLOAT |
1,492 |
|
数据手册 |
RSF80 | Bulk | Active | Liquid | Switch (Single Float) | SPST-NC/NO | 600 mA | 0.85 | 0.787" (20mm) | Male 1/2" (12.7mm) NPT | Polypropylene (PP) | -20°C ~ 100°C | 120VDC, 240VAC | ||
|
RSF74YNPSENSOR LEVEL SWITCH SINGLE FLOAT |
1,265 |
|
数据手册 |
RSF70 | Bulk | Active | Liquid | Switch (Single Float) | SPST-NC/NO | 600 mA | 0.85 | 0.787" (20mm) | Panel Mount, M16x2 Thread | Polypropylene (PP) | -20°C ~ 100°C | 120VDC, 240VAC | ||
|
PLS-080A-3VALSENSOR LEVEL SWITCH |
3,992 |
|
数据手册 |
- | Bulk | Active | Liquid, Powder | Switch | SPST-NO | 1 A | - | 1.417" (36mm) | Panel Mount, M10 Thread | Stainless Steel | -40°C ~ 125°C | 200V | ||
|
|
PLS-080B-3VALSENSOR LEVEL SWITCH |
3,583 |
|
数据手册 |
- | Bulk | Active | Liquid, Powder | Switch | SPST-NC | 1 A | - | 1.417" (36mm) | Panel Mount, M10 Thread | Stainless Steel | -40°C ~ 125°C | 200V | ||
|
20017786-00SENSOR LEVEL SWITCH SINGLE FLOAT |
3,542 |
|
数据手册 |
- | Box | Active | Liquid | Switch (Single Float) | SPST-NO | 1 A | - | - | Panel Mount, M16 Thread | Polyphenylene Sulfide (PPS) | -30°C ~ 110°C | 100V | ||
|
RSF78YNPSENSOR LEVEL SWITCH SINGLE FLOAT |
3,757 |
|
数据手册 |
RSF70 | Bulk | Active | Liquid | Switch (Single Float) | SPST-NC/NO | 600 mA | 0.8 | 0.787" (20mm) | Panel Mount, M16x2 Thread | Polypropylene (PP) | -20°C ~ 100°C | 120VDC, 240VAC | ||
|
RSF73Y100RNSENSOR LEVEL SWITCH SINGLE FLOAT |
1,256 |
|
数据手册 |
RSF70 | Bag | Active | Liquid | Switch (Single Float) | SPST-NC/NO | 600 mA | 0.85 | 0.787" (20mm) | Panel Mount, M16x2 Thread | Nylon | -20°C ~ 75°C | 120VDC, 240VAC | ||
|
|
PLS-080B-6VALSENSOR LEVEL SWITCH |
4,429 |
|
数据手册 |
- | Bulk | Active | Liquid, Powder | Switch | SPST-NC | 1.5 A | - | 1.417" (36mm) | Panel Mount, M10 Thread | Stainless Steel | -40°C ~ 125°C | 250VAC | ||
|
|
PLS-080A-6VALSENSOR LEVEL SWITCH |
1,850 |
|
数据手册 |
- | Bulk | Active | Liquid, Powder | Switch | SPST-NO | 1.5 A | - | 1.417" (36mm) | Panel Mount, M10 Thread | Stainless Steel | -40°C ~ 125°C | 250VAC | ||
|
RSF53Y100R1/8SENSOR LEVEL SWITCH SINGLE FLOAT |
3,952 |
|
数据手册 |
RSF50 | Bag | Active | Liquid | Switch (Single Float) | SPST-NC/NO | 600 mA | 0.8 | 0.886" (22.5mm) | Male 1/8" (3.18mm) NPT | Nylon | -20°C ~ 75°C | 120VDC, 240VAC | ||
|
RSF78Y100RMSENSOR LEVEL SWITCH SINGLE FLOAT |
100 |
|
数据手册 |
RSF70 | Bulk | Active | Liquid | Switch (Single Float) | SPST-NC/NO | 600 mA | 0.8 | 0.787" (20mm) | Panel Mount, M16x2 Thread | Polypropylene (PP) | -20°C ~ 100°C | 120VDC, 240VAC | ||
|
PLS-081B-3VAISENSOR LEVEL SWITCH |
1,098 |
|
数据手册 |
- | Bulk | Active | Liquid | Switch | SPST-NC | 1 A | - | 3.189" (81mm) | Panel Mount, M10 Thread | Stainless Steel | -40°C ~ 125°C | 200V | ||
|
TSF88Y100DSENSOR LEVEL SWITCH SINGLE FLOAT |
2,891 |
|
数据手册 |
TSF80 | Bulk | Active | Liquid, Temperature | Switch (Single Float) | SPST-NC/NO | 600 mA | 0.85 | 0.3149", 0.4641" (8mm, 20mm) | Male 1/2" (12.7mm) NPT | Polypropylene (PP) | -20°C ~ 100°C | 120VDC, 240VAC | ||
|
RSF56Y050TBSENSOR LEVEL SWITCH SINGLE FLOAT |
1,487 |
|
数据手册 |
RSF50 | Bulk | Active | Liquid | Switch (Single Float) | SPST-NC/NO | 600 mA | 0.85 | 0.807" (20.5mm) | Panel Mount, M12x1.75 Thread | Polyphenylene Sulphide (PPS) | -10°C ~ 120°C | 120VDC, 240VAC | ||
|
RSF58H100RCSENSOR LEVEL SWITCH SINGLE FLOAT |
4,282 |
|
数据手册 |
RSF50 | Bulk | Active | Liquid | Switch (Single Float) | SPST-NC/NO | 1 A | 0.65 | 1.024" (26mm) | Panel Mount, M12x1.75 Thread | Polypropylene (PP) | -20°C ~ 100°C | 300VAC, 300VDC |
