浮子、液位传感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 封装 | 产品状态 | 类型 | 输出类型 | 输出配置 | 电流 | 最小液体比重 | 开关动作水平 | 安装类型 | 材质 - 外壳和棱镜 | 工作温度 | 电压额定值 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PTF01070SENSOR LEVEL SWITCH SINGLE FLOAT Celduc Inc. |
172 |
|
数据手册 |
- | Box | Active | Liquid | Switch (Single Float) | NO | 500 mA | 0.8 | - | Panel Mount, M8 Thread | Polyamide (PA) | 0°C ~ 70°C | 125VAC, 100VDC | ||
|

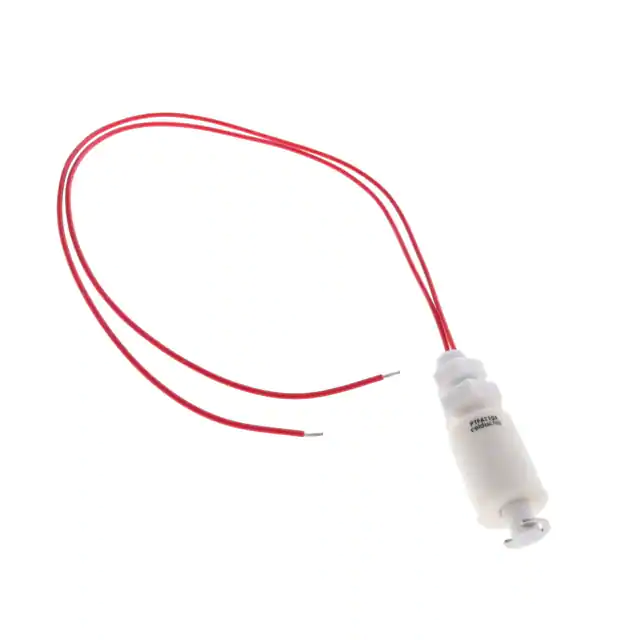

PTFA1104SENSOR LEVEL SWITCH SINGLE FLOAT Celduc Inc. |
105 |
|
数据手册 |
- | Box | Obsolete | Liquid | Switch (Single Float) | NO | 500 mA | 0.7 | - | Panel Mount, 1/8" (3.175mm) GAZ Thread | Polypropylene (PP) | -10°C ~ 80°C | 300VAC/DC | ||
|
PTFA5001SENSOR LEVEL SWITCH SINGLE FLOAT Celduc Inc. |
2,569 |
|
数据手册 |
- | Box | Active | Liquid | Switch (Single Float) | NC | 500 mA | 0.9 | - | Panel Mount, M8 Thread | Polypropylene (PP) | -25°C ~ 80°C | 300VAC/DC | ||
|
PTFA3115SENSOR LEVEL SWITCH SINGLE FLOAT Celduc Inc. |
3,234 |
|
数据手册 |
- | Box | Active | Liquid | Switch (Single Float) | NO | 500 mA | 0.6 | - | Panel Mount | Nylon | 0°C ~ 85°C | 300VAC/DC | ||
|
PTFA3315SENSOR LEVEL SWITCH SINGLE FLOAT Celduc Inc. |
3,805 |
|
数据手册 |
- | Box | Active | Liquid | Switch (Single Float) | NO | 500 mA | 0.6 | - | Panel Mount, M16x2 Thread | Polypropylene (PP) | -10°C ~ 100°C | 300VAC/DC | ||
|
PTFA3415SENSOR LEVEL SWITCH SINGLE FLOAT Celduc Inc. |
3,920 |
|
数据手册 |
- | Box | Active | Liquid | Switch (Single Float) | NO | 500 mA | 0.6 | - | Panel Mount, M16x2 Thread | Polypropylene (PP) | -10°C ~ 100°C | 300VAC/DC | ||
|
|
PTFA0100SENSOR LEVEL SWITCH SINGLE FLOAT Celduc Inc. |
2,456 |
|
数据手册 |
- | Box | Active | Liquid | Switch (Single Float) | NO | 500 mA | 0.6 | - | Panel Mount, M16x2 Thread | Nylon | 0°C ~ 70°C | 200V | ||
|
PTFA1103SENSOR LEVEL SWITCH SINGLE FLOAT Celduc Inc. |
2,131 |
|
数据手册 |
- | Box | Active | Liquid | Switch (Single Float) | NC | 500 mA | 0.7 | - | Panel Mount, 1/8" (3.175mm) GAZ Thread | Polypropylene (PP) | -10°C ~ 80°C | 300VAC/DC | ||
|
|
PTFA1015SENSOR LEVEL SWITCH SINGLE FLOAT Celduc Inc. |
1,159 |
|
数据手册 |
- | Box | Active | Liquid | Switch (Single Float) | NO | 500 mA | 0.75 | - | Panel Mount, 3/8" (9.525mm) UNC Thread | Nylon | 0°C ~ 70°C | 100V | ||
|
|
PTFA1210SENSOR LEVEL SWITCH SINGLE FLOAT Celduc Inc. |
3,487 |
|
数据手册 |
- | Box | Active | Liquid | Switch (Single Float) | NO/NC | 500 mA | 0.6 | - | Panel Mount, 3/8" (9.525mm) UNC Thread | Nylon | -10°C ~ 85°C | 100V, 200V |
