浮子、液位传感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 封装 | 产品状态 | 类型 | 输出类型 | 输出配置 | 电流 | 最小液体比重 | 开关动作水平 | 安装类型 | 材质 - 外壳和棱镜 | 工作温度 | 电压额定值 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9036DG2S1SENSOR LEVEL SWITCH |
3,719 |
|
数据手册 |
- | Box | Active | Liquid | Switch | DPST-NO | - | - | - | Screw Mount | - | -30°C ~ 105°C | 575VAC | ||
|
|
L45-17-C1-17-NOSENSOR FLOAT/LEVEL |
4,657 |
|
数据手册 |
L45 | Bulk | Active | Liquid | Switch | SPST-NC/NO | - | 1.0 | - | Threaded | Plastic | -40°C ~ 82.2°C | - | ||
|
|
L40-17-C1-17-NOSENSOR FLOAT/LEVEL |
3,130 |
|
数据手册 |
L40 | Bulk | Active | Liquid | - | - | - | 1.0 | - | Male 1/8" (3.18mm) NPT | Polyvinylidene Fluoride (PVDF) | -40°C ~ 82.2°C | - | ||
|
LLF77Y100GNSENSOR LEVEL SWITCH SINGLE FLOAT |
4,680 |
|
数据手册 |
LLF70 | Bag | Active | Liquid | Switch (Single Float) | SPST-NC/NO | 600 mA | 0.7 | 0.394" (10mm) | Male 1" (25.4mm) NPT | Polyvinylidene Fluoride (PVDF) | -10°C ~ 105°C | 120V | ||
|
LLF77Y100GVSENSOR LEVEL SWITCH SINGLE FLOAT |
1,009 |
|
数据手册 |
LLF70 | Bag | Active | Liquid | Switch (Single Float) | SPST-NC/NO | 600 mA | 0.7 | 0.394" (10mm) | Male 1" (25.4mm) NPT | Polyvinylidene Fluoride (PVDF) | -10°C ~ 105°C | 120V | ||
|
RSF66B50B100SENSOR LEVEL SWITCH DUAL FLOAT |
2,007 |
|
数据手册 |
RSF66 | Bulk | Active | Liquid | Switch (2) (Dual Float) | SPST-NC/NO, SPST-NC/NO | 600 mA | 0.85 | 1.969", 3.937" (50mm, 100mm) | Panel Mount, M16x2 Thread | Polypropylene Sulphide (PPS) | -10°C ~ 85°C | 120VDC, 240VAC | ||
|
RSF166A50A100PSENSOR LEVEL SWITCH DUAL FLOAT |
1,918 |
|
数据手册 |
RSF166P | Box | Active | Liquid | Switch (2) (Dual Float) | SPST-NC/NO, SPST-NC/NO | 600 mA | 0.85 | 1.969", 5.906" (50mm, 150mm) | Panel Mount, M16x2 Thread | Polyphenylene Sulphide (PPS) | -10°C ~ 85°C | 120VDC, 240VAC | ||
|
RSF166A50A150PSENSOR LEVEL SWITCH DUAL FLOAT |
2,008 |
|
数据手册 |
RSF166P | Box | Active | Liquid | Switch (2) (Dual Float) | SPST-NC/NO, SPST-NC/NO | 600 mA | 0.85 | 1.969", 5.906" (50mm, 150mm) | Panel Mount, M16x2 Thread | Polyphenylene Sulphide (PPS) | -10°C ~ 85°C | 120VDC, 240VAC | ||
|
RSF166B50B100PSENSOR LEVEL SWITCH DUAL FLOAT |
3,018 |
|
数据手册 |
RSF166P | Box | Active | Liquid | Switch (2) (Dual Float) | SPST-NC/NO, SPST-NC/NO | 600 mA | 0.85 | 1.969", 3.937" (50mm, 100mm) | Panel Mount, M16x2 Thread | Polyphenylene Sulphide (PPS) | -10°C ~ 85°C | 120VDC, 240VAC | ||
|
|
RSF166B50B150PSENSOR LEVEL SWITCH DUAL FLOAT |
4,068 |
|
数据手册 |
RSF166P | Box | Active | Liquid | Switch (2) (Dual Float) | SPST-NC/NO, SPST-NC/NO | 600 mA | 0.85 | 1.969", 5.906" (50mm, 150mm) | Panel Mount, M16x2 Thread | Polyphenylene Sulphide (PPS) | -10°C ~ 85°C | 120VDC, 240VAC | ||
|
|
L45-06-C1-15-NOSENSOR FLOAT/LEVEL |
2,287 |
|
数据手册 |
L45 | Bulk | Active | Liquid | Switch | SPST-NC/NO | 250 mA | 0.7 | - | Threaded | 316 Stainless Steel, Brass, Buna | -40°C ~ 110°C | 200V | ||
|
|
L60-06-C3-15-NOSENSOR FLOAT/LEVEL |
2,230 |
|
数据手册 |
L60 | Bulk | Active | Liquid | Switch | SPST-NC/NO | - | 0.75 | - | Male 1/4" (6.35mm) NPT | 316 Stainless Steel, Brass, Buna | -40°C ~ 82°C | - | ||
|
|
L65-06-C3-15-NOSENSOR FLOAT/LEVEL |
3,292 |
|
数据手册 |
L65 | Bulk | Active | Liquid | Switch | SPST-NO | 250 mA | 0.7 | - | Threaded | 316 Stainless Steel, Brass, Buna | -40°C ~ 82.2°C | 200V | ||
|
|
PTFA2115SENSOR LEVEL SWITCH SINGLE FLOAT |
4,770 |
|
数据手册 |
- | Box | Active | Liquid | Switch (Single Float) | NO | 500 mA | 0.75 | - | Panel Mount, M10 Thread | Stainless Steel | 0°C ~ 100°C | 300VAC/DC | ||
|
|
PTFA2115RSENSOR LEVEL SWITCH SINGLE FLOAT |
4,972 |
|
数据手册 |
- | Box | Active | Liquid | Switch (Single Float) | NO | 500 mA | 0.75 | - | Panel Mount, M10 Thread | Stainless Steel | 0°C ~ 100°C | 230VAC, 350VDC | ||
|
RSF64EXSSENSOR LEVEL SWITCH SINGLE FLOAT |
1,553 |
|
数据手册 |
- | Bag | Active | Liquid | Switch (Single Float) | SPST-NC/NO | 600 mA | 0.6 | - | Saddle Clamp | Polypropylene (PP), Polypropylene Sulphide (PPS) | -20°C ~ 75°C | 120VDC, 240VAC | ||
|
|
L40-02-R1-02-N0SENSOR LEVEL SWITCH |
4,129 |
|
数据手册 |
L40 | Box | Active | Liquid | Switch | SPST-NO, SPST-NC | - | 0.85 | - | Male 1/8" (3.18mm) NPT | 316 Stainless Steel | -40°C ~ 125°C | - | ||
|
|
L45-02-R1-02-N0L45 SERIES SS LIQUID LEVEL SPST |
3,849 |
|
数据手册 |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | ||
|
LLF47H100GFSENSOR LEVEL SWITCH SINGLE FLOAT |
1,585 |
|
数据手册 |
LLF40 | Bag | Active | Liquid | Switch (Single Float) | SPST-NC/NO | 1 A | 0.7 | 0.394" (10mm) | Male 1" (25.4mm) NPT | Polyvinylidene Fluoride (PVDF) | -10°C ~ 105°C | 300V | ||
|

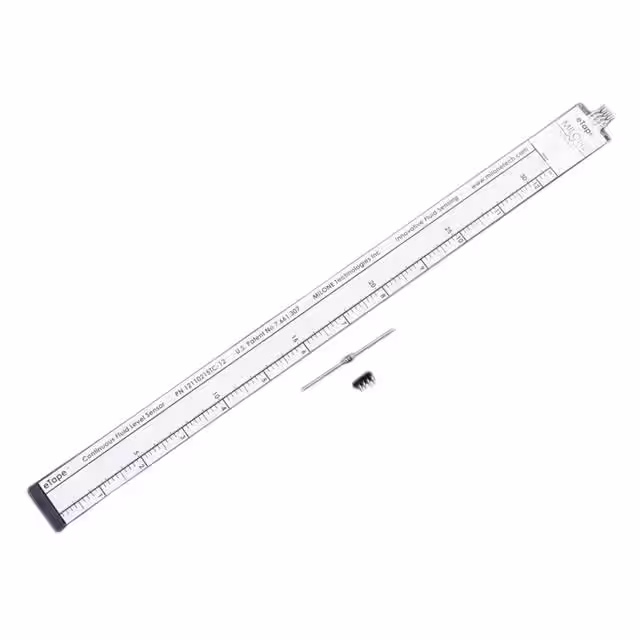

1786SENSOR LEVEL RESISTIVE |
3,379 |
|
数据手册 |
- | Bulk | Discontinued at Digi-Key | Liquid, Powder | Resistive | - | - | - | 1.000" (25.4mm) | Adhesive | Polyethylene Terephthalate (PET) | -9°C ~ 65°C | 10V |
