浮子、液位传感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 封装 | 产品状态 | 类型 | 输出类型 | 输出配置 | 电流 | 最小液体比重 | 开关动作水平 | 安装类型 | 材质 - 外壳和棱镜 | 工作温度 | 电压额定值 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
59630-4-T-05-FSENSOR LEVEL SWITCH SINGLE FLOAT |
1,297 |
|
数据手册 |
59630 | Box | Obsolete | Liquid | Switch (Single Float) | SPST-NC | 500 mA | - | 0.2" (5.08 mm) | Panel Mount, M8 Thread | - | -40°C ~ 105°C | 200VDC | ||
|

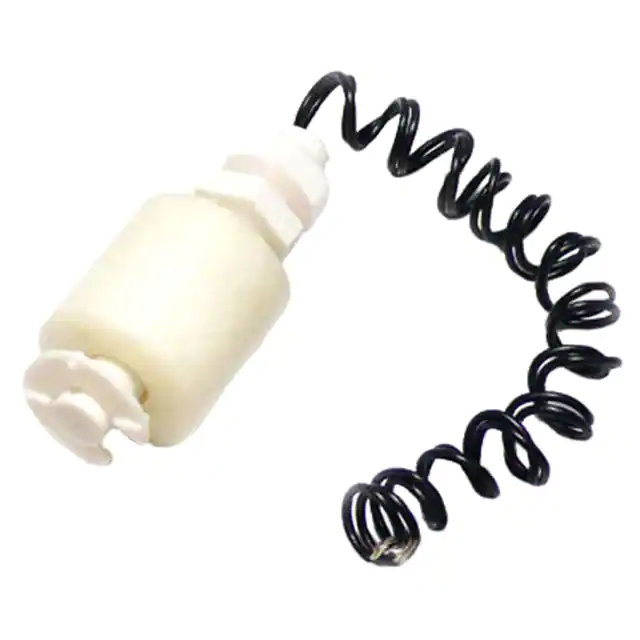

311120001SENSOR LEVEL SWITCH |
4,067 |
|
数据手册 |
- | Bulk | Active | Liquid | Switch | - | 500 mA | - | - | - | - | -10°C ~ 80°C | 100V | ||
|
59630-1-T-02-DSENSOR LEVEL SWITCH SINGLE FLOAT |
3,443 |
|
数据手册 |
59630 | Box | Active | Liquid | Switch (Single Float) | SPST-NO | 500 mA | - | 0.2" (5.08 mm) | Panel Mount, M8 Thread | - | -40°C ~ 105°C | 200VDC | ||
|
|
59630-1-T-01-DSENSOR LEVEL SWITCH SINGLE FLOAT |
4,017 |
|
数据手册 |
59630 | Box | Active | Liquid | Switch (Single Float) | SPST-NO | 500 mA | - | 0.2" (5.08 mm) | Panel Mount, M8 Thread | - | -40°C ~ 105°C | 200VDC | ||
|
|
59630-4-T-02-CSENSOR LEVEL SWITCH SINGLE FLOAT |
4,753 |
|
数据手册 |
59630 | Box | Active | Liquid | Switch (Single Float) | SPST-NC | 500 mA | - | 0.2" (5.08 mm) | Panel Mount, M8 Thread | - | -40°C ~ 105°C | 200VDC | ||
|
|
88508-000SENSOR LEVEL SWITCH SINGLE FLOAT |
2,716 |
|
数据手册 |
LCS-03 | Bulk | Active | Liquid | Switch (Single Float) | SPST-NC/NO | 1 A | - | - | - | Nylon | - | 24V | ||
|

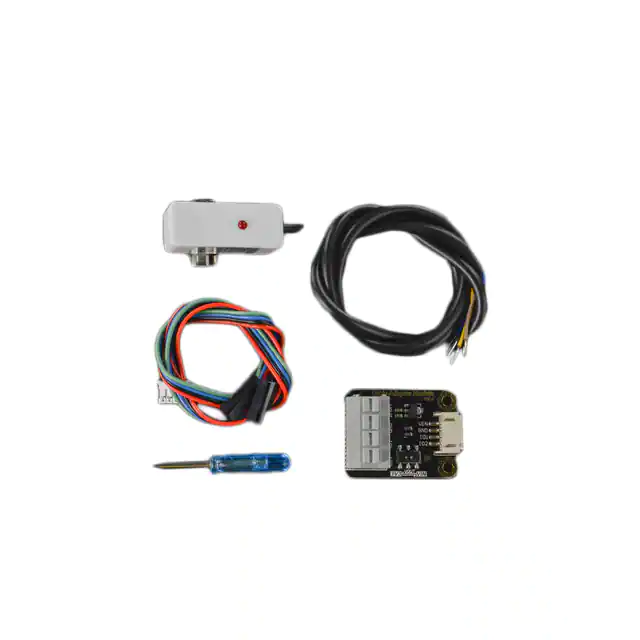

SEN0370SENSOR LEVEL SWITCH |
2,320 |
|
数据手册 |
- | Bulk | Active | Liquid | Switch | - | - | - | - | Bracket Mount | Acrylonitrile Butadiene Styrene (ABS) | -5°C ~ 105°C | 5V ~ 24V | ||
|
|
80009-000SENSOR LEVEL |
2,452 |
|
数据手册 |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | ||
|
LS03/DL-1A66-PA-500WSENSOR LEVEL SWITCH SINGLE FLOAT |
4,303 |
|
数据手册 |
LS03 | Bulk | Active | Liquid | Switch (Single Float) | SPST-NO | 500 mA | - | - | Panel Mount, M16x2 Thread | Polyamide (PA) | -20°C ~ 80°C | 200V | ||
|
|
PTFA1015SENSOR LEVEL SWITCH SINGLE FLOAT |
1,159 |
|
数据手册 |
- | Box | Active | Liquid | Switch (Single Float) | NO | 500 mA | 0.75 | - | Panel Mount, 3/8" (9.525mm) UNC Thread | Nylon | 0°C ~ 70°C | 100V | ||
|
LS03/DL-1A85-PA-500WSENSOR LEVEL SWITCH SINGLE FLOAT |
3,887 |
|
数据手册 |
LS03 | Bulk | Active | Liquid | Switch (Single Float) | SPST-NO | 1 A | - | - | Panel Mount, M16x2 Thread | Polyamide (PA) | -20°C ~ 80°C | 400V | ||
|
RSF104Y100JN004SENSOR LEVEL SWITCH SINGLE FLOAT |
2,958 |
|
数据手册 |
RSF100 | Bulk | Obsolete | Liquid | Switch (Single Float) | SPST-NO | 600 mA | 0.85 | - | Panel Mount, M16x2 Thread | Polypropylene (PP) | -20°C ~ 100°C | 120VDC, 240VAC | ||
|

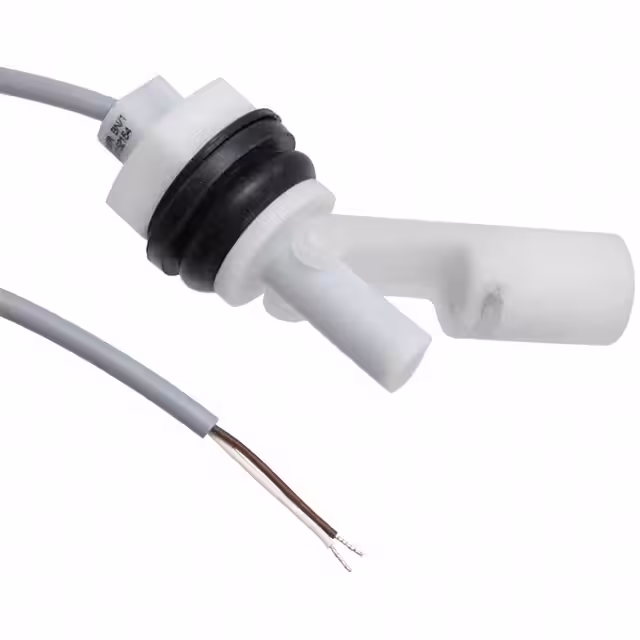

LS03/DL-1A52-PP-500WSENSOR LEVEL SWITCH SINGLE FLOAT |
2,130 |
|
数据手册 |
LS03 | Bulk | Obsolete | Liquid | Switch (Single Float) | SPST-NO | 500 mA | - | - | Panel Mount, M16x2 Thread | Polypropylene (PP) | - | - | ||
|
RSF153YFPSENSOR LEVEL SWITCH SINGLE FLOAT |
4,777 |
|
数据手册 |
RSF150 | Bulk | Active | Liquid | Switch (Single Float) | SPST-NO | 600 mA | 0.8 | 0.886" (22.5mm) | Panel Mount, M16x2 Thread | Nylon | -20°C ~ 75°C | 120VDC, 240VAC | ||
|
|
FS-002SENSOR LEVEL |
4,496 |
|
数据手册 |
- | - | Obsolete | - | - | - | - | - | - | - | - | - | - | ||
|
RSF103YNPSENSOR LEVEL SWITCH SINGLE FLOAT |
3,149 |
|
数据手册 |
RSF100 | Bulk | Active | Liquid | Switch (Single Float) | SPST-NO | 600 mA | - | - | Panel Mount, M16x2 Thread | Nylon | -20°C ~ 75°C | 120VDC, 240VAC | ||
|
RSF83HPSENSOR LEVEL SWITCH SINGLE FLOAT |
1,258 |
|
数据手册 |
RSF80 | Bulk | Active | Liquid | Switch (Single Float) | SPST-NC/NO | 1 A | 0.85 | 0.787" (20mm) | Male 1/2" (12.7mm) NPT | Nylon | -20°C ~ 75°C | 300VAC, 300VDC | ||
|
RSF104YNPSENSOR LEVEL SWITCH SINGLE FLOAT |
3,845 |
|
数据手册 |
RSF100 | Bulk | Active | Liquid | Switch (Single Float) | SPST-NO | 600 mA | - | - | Panel Mount, M16x2 Thread | Polypropylene (PP) | -20°C ~ 100°C | 120VDC, 240VAC | ||
|
RSF84HPSENSOR LEVEL SWITCH SINGLE FLOAT |
2,450 |
|
数据手册 |
RSF80 | Bulk | Active | Liquid | Switch (Single Float) | SPST-NC/NO | 1 A | 0.85 | 0.787" (20mm) | Male 1/2" (12.7mm) NPT | Polypropylene (PP) | -20°C ~ 100°C | 300VAC, 300VDC | ||
|
RSF88HPSENSOR LEVEL SWITCH SINGLE FLOAT |
3,716 |
|
数据手册 |
RSF80 | Bulk | Active | Liquid | Switch (Single Float) | SPST-NC/NO | 1 A | 0.85 | 0.787" (20mm) | Male 1/2" (12.7mm) NPT | Polypropylene (PP) | -20°C ~ 100°C | 300VAC, 300VDC |
