浮子、液位传感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 封装 | 产品状态 | 类型 | 输出类型 | 输出配置 | 电流 | 最小液体比重 | 开关动作水平 | 安装类型 | 材质 - 外壳和棱镜 | 工作温度 | 电压额定值 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

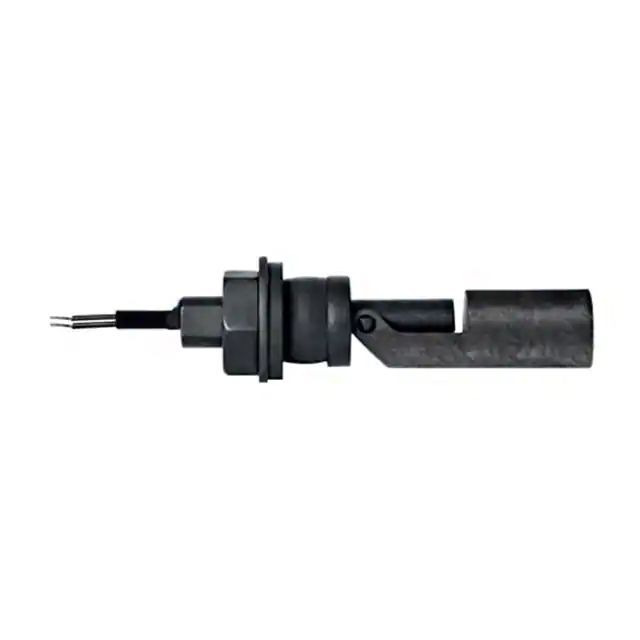

PLS-092A-3PPHSENSOR LEVEL SWITCH |
385 |
|
数据手册 |
- | Bulk | Active | Liquid | Switch | SPST-NO | 1 A | - | 2.126" (54mm) | Panel Mount, M16 Thread | Polypropylene (PP) | -20°C ~ 65°C | 200V | ||
|
59630-1-T-02-ASENSOR LEVEL SWITCH SINGLE FLOAT |
1,396 |
|
数据手册 |
59630 | Box | Active | Liquid | Switch (Single Float) | SPST-NO | 500 mA | - | 0.2" (5.08 mm) | Panel Mount, M8 Thread | - | -40°C ~ 105°C | 200VDC | ||
|
|
59630-4-T-02-FSENSOR LEVEL SWITCH SINGLE FLOAT |
221 |
|
数据手册 |
59630 | Box | Active | Liquid | Switch (Single Float) | SPST-NC | 500 mA | - | 0.2" (5.08 mm) | Panel Mount, M8 Thread | - | -40°C ~ 105°C | 200VDC | ||
|
|
PLS-092A-6PPHSENSOR LEVEL SWITCH |
342 |
|
数据手册 |
- | Bulk | Active | Liquid | Switch | SPST-NO | 1.5 A | - | 2.126" (54mm) | Panel Mount, M16 Thread | Polypropylene (PP) | -20°C ~ 65°C | 250VAC | ||
|
|
59630-1-T-03-ASENSOR LEVEL SWITCH SINGLE FLOAT |
238 |
|
数据手册 |
59630 | Box | Active | Liquid | Switch (Single Float) | SPST-NO | 500 mA | - | 0.2" (5.08 mm) | Panel Mount, M8 Thread | - | -40°C ~ 105°C | 200VDC | ||
|
|
59630-4-T-02-ASENSOR LEVEL SWITCH SINGLE FLOAT |
489 |
|
数据手册 |
59630 | Box | Active | Liquid | Switch (Single Float) | SPST-NC | 500 mA | - | 0.2" (5.08 mm) | Panel Mount, M8 Thread | - | -40°C ~ 105°C | 200VDC | ||
|
RSF16Y100RFSENSOR LEVEL SWITCH SINGLE FLOAT |
372 |
|
数据手册 |
RSF10 | Bulk | Active | Liquid | Switch (Single Float) | SPST-NC | 600 mA | 0.75 | 0.866" (22mm) | Panel Mount, M16x2 Thread | Polyphenylene Sulphide (PPS) | -10°C ~ 120°C | 120VDC, 240VAC | ||
|
MS10CSENSOR LEVEL SWITCH SINGLE FLOAT |
1,487 |
|
数据手册 |
MS | Bag | Active | Liquid | Switch (Single Float) | SPDT | 10 A | - | - | Cable Mount | High Density Polyethylene (PEHD) | 0°C ~ 55°C | 110VDC, 250VAC | ||
|
LLC210D3SHSENSOR LEVEL DIGITAL |
1,369 |
|
数据手册 |
Optomax | Bulk | Active | Liquid | Digital | Push-Pull | 2.5 mA | - | - | Threaded | Polysulfone (PES) | -40°C ~ 125°C | 4.5V ~ 15.4V | ||
|
OLS700D3SHSENSOR LEVEL OPEN COLLECTOR |
342 |
|
数据手册 |
OLS7 | Bulk | Active | Liquid | Open Collector | High-Dry | 2.5 mA | - | - | 1/4" NPT and 3/8" Conduit | Polysulfone | -25°C ~ 80°C | 5V ~ 15V | ||
|
OLS500D3SENSOR LEVEL PUSH-PULL |
2,174 |
|
数据手册 |
OLS5 | Bulk | Active | Liquid | Push-Pull | High-Dry | 2.5 mA | - | - | Threaded | Polysulfone (PES) | -25°C ~ 80°C | 5V ~ 15V | ||
|

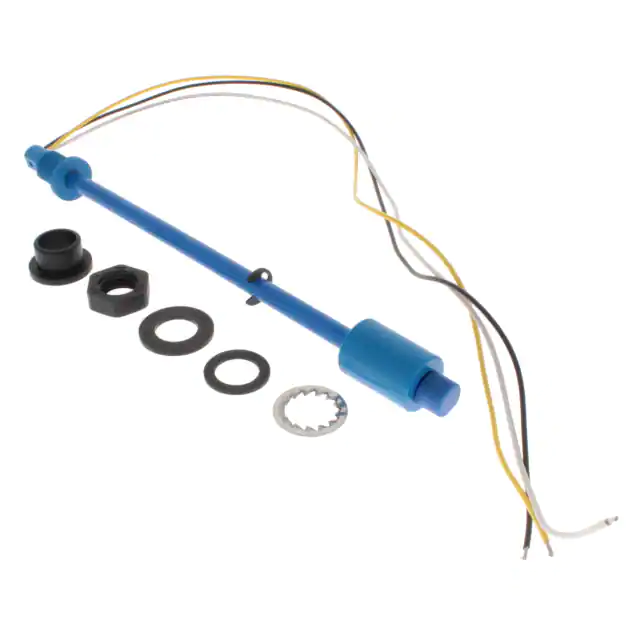

20017775-00SENSOR LEVEL SWITCH SINGLE FLOAT |
3,767 |
|
数据手册 |
EVS | Box | Active | Liquid | Switch (Single Float) | SPST-NC/NO | 400 mA | - | - | Panel Mount, M16 Thread | Nylon | -30°C ~ 110°C | 175V | ||
|
OLS210D324-003SENSOR LEVEL OPEN DRAIN |
2,362 |
|
数据手册 |
OLS2 | Bulk | Active | Liquid | Open Drain | High-Dry | 2.5 mA | - | - | Threaded | Polysulfone | -40°C ~ 125°C | 10 ~ 28VDC | ||
|

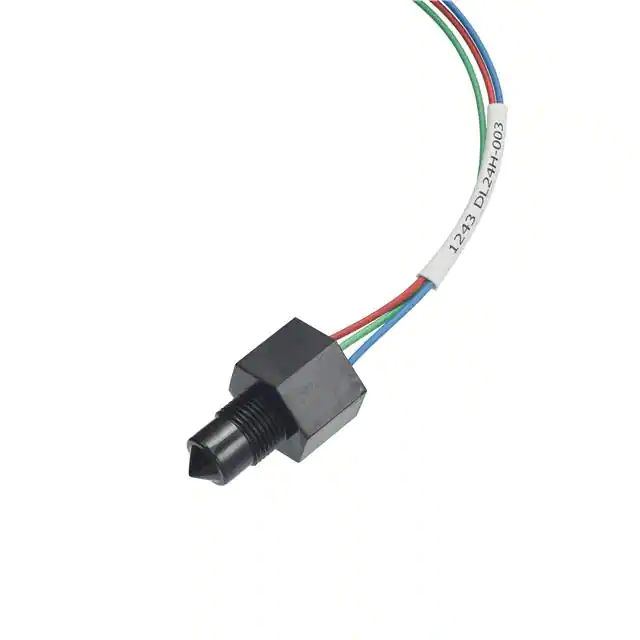

OLS710D3L24-003SENSOR LEVEL OPEN DRAIN |
4,120 |
|
数据手册 |
OLS7 | Bulk | Active | Liquid | Open Drain | Low-Dry | 2.5 mA | - | - | 1/4" NPT and 3/8" Conduit | Polysulfone | -40°C ~ 125°C | 10 ~ 28VDC | ||
|
101990860SENSOR LEVEL |
2,957 |
|
数据手册 |
- | Bulk | Active | Liquid | - | RS485 | - | - | - | Cable Mount | 304 Stainless Steel, 316 Stainless Steel | -40°C ~ 80°C | 11V ~ 30V | ||
|
PLS-041B-3PAISENSOR LEVEL SWITCH |
513 |
|
数据手册 |
- | Bulk | Active | Liquid | Switch | SPST-NC | 1 A | - | 1.614" (41mm) | Panel Mount, M8 Thread | Polyamide (PA) | -20°C ~ 80°C | 200V | ||
|
LS01-1A66-PA-500WSENSOR LEVEL SWITCH SINGLE FLOAT |
329 |
|
数据手册 |
LS01 | Bulk | Active | Liquid | Switch (Single Float) | SPST-NO | 500 mA | - | - | Free Hanging | Polyamide (PA) | -30°C ~ 70°C | 200V | ||
|
PLS-031B-6PAISENSOR LEVEL SWITCH |
434 |
|
数据手册 |
- | Bulk | Active | Liquid | Switch | SPST-NC | 1.5 A | - | 1.22" (31mm) | Panel Mount, M8 Thread | Polyamide (PA) | -20°C ~ 80°C | 250VAC | ||
|
|
PLS-041A-6PAISENSOR LEVEL SWITCH |
495 |
|
数据手册 |
- | Bulk | Active | Liquid | Switch | SPST-NO | 1.5 A | - | 1.614" (41mm) | Panel Mount, M8 Thread | Polyamide (PA) | -20°C ~ 80°C | 250VAC | ||
|
|
PLS-031A-6PAISENSOR LEVEL SWITCH |
264 |
|
数据手册 |
- | Bulk | Active | Liquid | Switch | SPST-NO | 1.5 A | - | 1.22" (31mm) | Panel Mount, M8 Thread | Polyamide (PA) | -20°C ~ 80°C | 250VAC |
