浮子、液位传感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 封装 | 产品状态 | 类型 | 输出类型 | 输出配置 | 电流 | 最小液体比重 | 开关动作水平 | 安装类型 | 材质 - 外壳和棱镜 | 工作温度 | 电压额定值 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
6041658SENSOR LEVEL SWITCH |
3,923 |
|
数据手册 |
UP56 | Bulk | Active | Liquid, Solids | Switch | 4mA ~ 20mA, 0V ~ 10V, PNP | 200 mA | - | - | Male 1" (25.4mm) G | Fluoroelastomers (FKM), Polybutylene Terephthalate (PBT), Stainless Steel, Thermoplastic Polyurethane (TPU) | -25°C ~ 70°C | 9V ~ 30V | ||
|

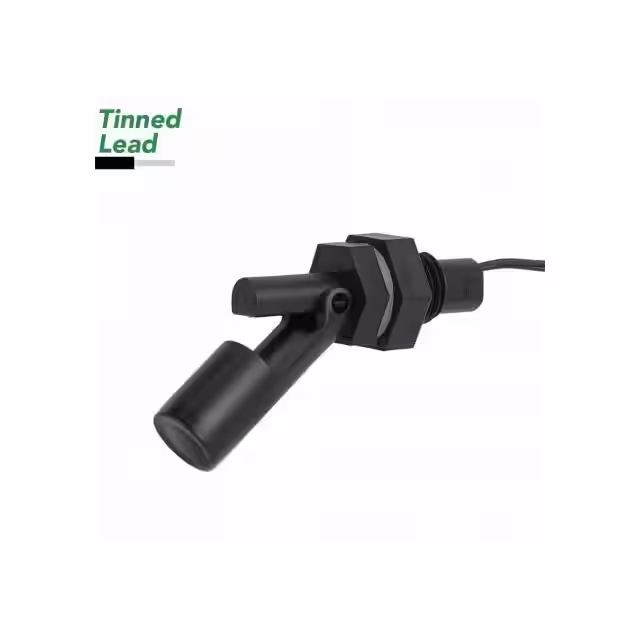

HB-FSSENSOR LEVEL SWITCH |
3,883 |
|
数据手册 |
- | Bulk | Active | Liquid | Switch | NC, NO | 500 mA | - | - | Panel Mount, M15x2 Thread | Acrylonitrile Butadiene Styrene (ABS), Plastic | - | 48V | ||
|
SA-2359-2-RAWSENSOR LEVEL SWITCH SINGLE FLOAT |
3,815 |
|
数据手册 |
2359 | Bag | Active | Liquid | Switch (Single Float) | SPDT-NC/NO | - | - | - | Cable Mount | Polypropylene (PP) | 0°C ~ 60°C | 12VDC, 120VAC ~ 240VAC | ||
|
TSF43Y100DFSENSOR LEVEL SWITCH SINGLE FLOAT |
4,842 |
|
数据手册 |
TSF40 | Bulk | Active | Liquid, Temperature | Switch (Single Float) | SPST-NC/NO | 600 mA | 0.85 | 0.276", 0.464" (7mm, 20mm) | Panel Mount, M16x2 Thread | Nylon | -20°C ~ 75°C | 120VDC, 240VAC | ||
|
|
LRNH51S42SENSOR LEVEL SWITCH |
1,506 |
|
数据手册 |
LRN | Bulk | Obsolete | Liquid | Switch | SPST-NC/NO | 1 A | 0.65 | - | - | Polypropylene (PP) | -30°C ~ 110°C | 100V | ||
|
SA-2359-5-RAWSENSOR LEVEL SWITCH SINGLE FLOAT |
4,584 |
|
数据手册 |
2359 | Bag | Active | Liquid | Switch (Single Float) | SPDT-NC/NO | - | - | - | Cable Mount | Polypropylene (PP) | 0°C ~ 60°C | 12VDC, 120VAC ~ 240VAC | ||
|

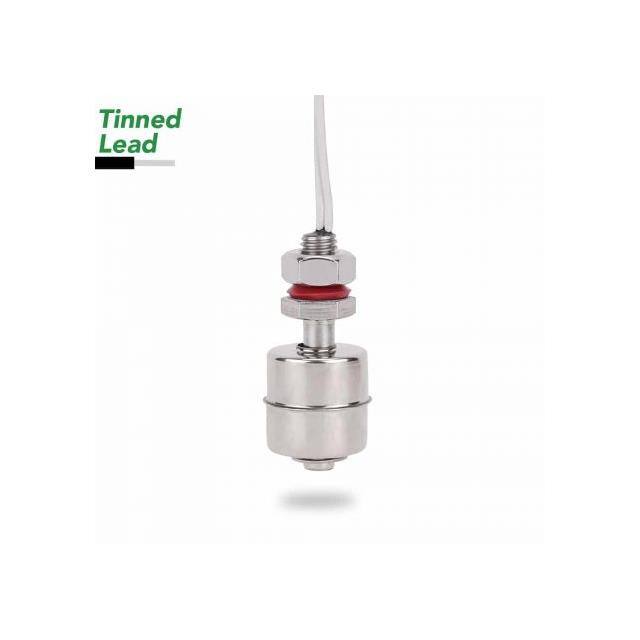

SVM-FSSENSOR LEVEL SWITCH |
1,098 |
|
数据手册 |
- | Bulk | Active | Liquid | Switch | NC, NO | 500 mA | - | - | Panel Mount, M10x1.5 Thread | 304 Stainless Steel | - | 50V | ||
|
RSF14YFPSENSOR LEVEL SWITCH SINGLE FLOAT |
2,655 |
|
数据手册 |
RSF10 | Bulk | Active | Liquid | Switch (Single Float) | SPST-NC | 600 mA | 0.7 | 0.945" (24mm) | Panel Mount, M16x2 Thread | Polypropylene (PP) | -20°C ~ 100°C | 120VDC, 240VAC | ||
|
SV-FSSENSOR LEVEL SWITCH |
4,357 |
|
数据手册 |
- | Bulk | Active | Liquid | Switch | NC, NO | 500 mA | - | - | Male, 1/2" (12.7mm) | Acrylonitrile Butadiene Styrene (ABS), Plastic | - | 48V | ||
|

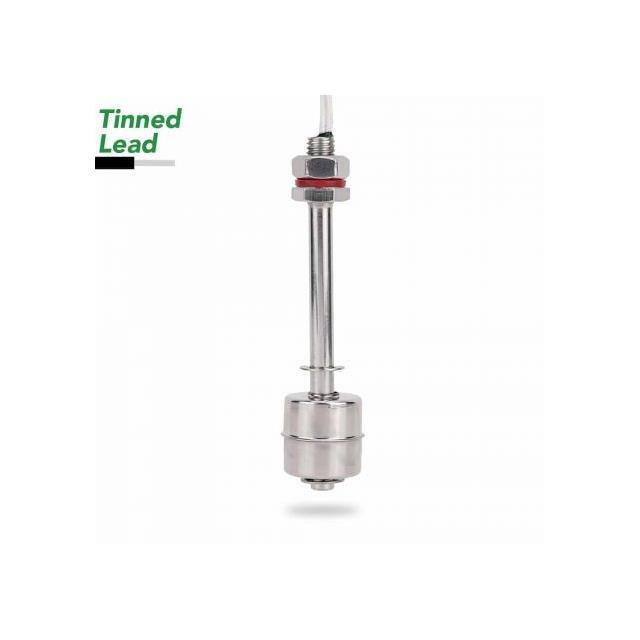

TVM-FSSENSOR LEVEL SWITCH |
1,451 |
|
数据手册 |
- | Bulk | Active | Liquid | Switch | NC, NO | 500 mA | - | - | Panel Mount, M10x1.5 Thread | 304 Stainless Steel | - | 50V | ||
|

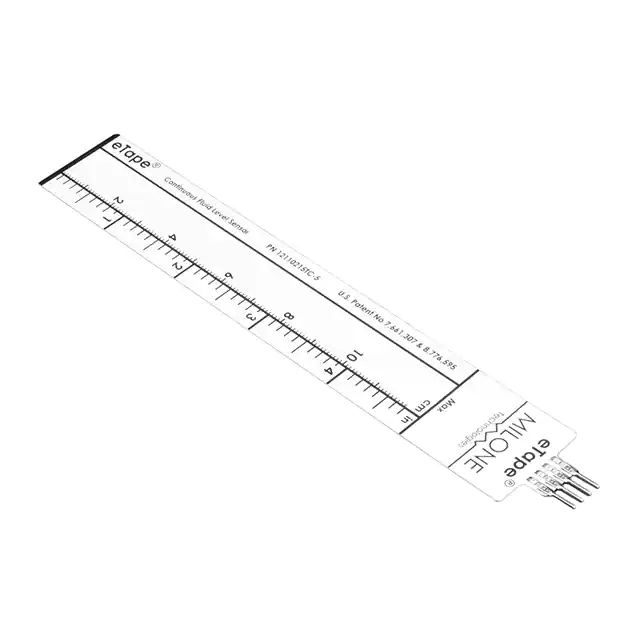

3827SENSOR LEVEL RESISTIVE |
2,030 |
|
数据手册 |
eTape™ | Bulk | Obsolete | Liquid | Resistive | - | - | - | 1.000" (25.4mm) | Adhesive | Polyethylene Terephthalate (PET) | -9°C ~ 65°C | 10V | ||
|
|
RBS301-WAT-USLORA WATER LEAK DETECTOR |
2,154 |
|
数据手册 |
- | Box | Active | Liquid | LoRaWAN | - | - | - | - | - | - | -30°C ~ 70°C | - | ||
|
|
L40-06-C1-15-N0SENSOR LEVEL SWITCH |
3,493 |
|
数据手册 |
L40 | Box | Active | Liquid | Switch | SPST-NO, SPST-NC | - | 0.7 | - | Male 1/8" (3.18mm) NPT | 316 Stainless Steel, Brass, Buna | -40°C ~ 82°C | - | ||
|
LLF46HFPSENSOR LEVEL SWITCH SINGLE FLOAT |
4,005 |
|
数据手册 |
LLF40 | Bulk | Active | Liquid | Switch (Single Float) | SPST-NC/NO | 1 A | 0.7 | 0.394" (10mm) | Panel Mount, M12 Thread | Polyphenylene Sulphide (PPS) | -10°C ~ 120°C | 300V | ||
|
MS20BSENSOR LEVEL SWITCH SINGLE FLOAT |
2,506 |
|
数据手册 |
MS | Bulk | Active | Liquid | Switch (Single Float) | SPST-NC | 20 A | - | - | Cable Mount | High Density Polyethylene (PEHD) | 0°C ~ 55°C | 110VDC, 250VAC | ||
|
RSF77Y100GVSENSOR LEVEL SWITCH SINGLE FLOAT |
3,518 |
|
数据手册 |
RSF70 | Bulk | Active | Liquid | Switch (Single Float) | SPST-NC/NO | 600 mA | 0.85 | 0.354" (9mm) | Panel Mount, M16x2 Thread | Polyvinylidene Fluoride (PVDF) | -10°C ~ 105°C | 300VAC, 300VDC | ||
|
|
L40-20-C1-20-N0SENSOR LEVEL SWITCH |
1,717 |
|
数据手册 |
L40 | Box | Active | Liquid | Switch | SPST-NO, SPST-NC | - | 0.7 | - | Male 1/8" (3.18mm) NPT | Polypropylene (PP) | -40°C ~ 82°C | - | ||
|
|
L40-02-C1-02-N0SENSOR LEVEL SWITCH |
1,566 |
|
数据手册 |
L40 | Box | Active | Liquid | Switch | SPST-NO, SPST-NC | - | 0.9 | - | Male 1/8" (3.18mm) NPT | 316 Stainless Steel | -40°C ~ 125°C | - | ||
|
RSF166A25B150SENSOR LEVEL SWITCH SINGLE FLOAT |
4,694 |
|
数据手册 |
RSF166 | Box | Active | Liquid | Switch (2) (Single Float) | SPST-NC/NO | 600 mA | 0.85 | 1.181", 5.906" (30mm, 150mm) | Panel Mount, M16x2 Thread | Polyphenylene Sulphide (PPS) | -10°C ~ 85°C | 120VDC, 240VAC | ||
|

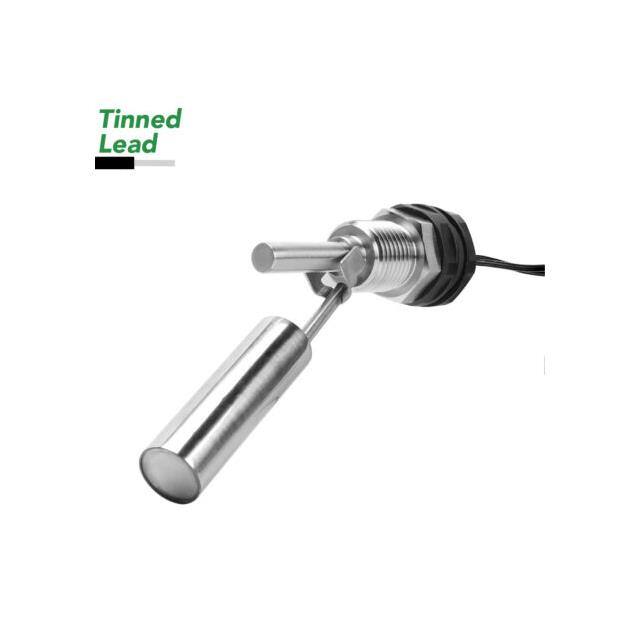

HM-FSSENSOR LEVEL SWITCH |
1,609 |
|
数据手册 |
- | Bulk | Active | Liquid | Switch | NC, NO | 500 mA | - | - | Male, 1/2" (12.7mm) NPT | 304 Stainless Steel | - | 50V |
