扁平排线
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电缆类型 | 导体数量 | 间距 | 长度 | 线规 | 导体股数 | 屏蔽 | 护套颜色 | 带材厚度 | 带材宽度 | 护套（绝缘）材料 | 电压 | 工作温度 | 额定值 | 特性 | 额定值 | 端接方式 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
63910815521CABCBL RIBN 8COND 0.05 GRAY 3.28' |
130 |
|
数据手册 |
WR-CAB | Bag | Active | Flat Cable | 8 | 0.050" (1.27mm) | 3.28' (1000.00mm) | 28 AWG | - | Unshielded | Gray | 0.035" (0.89mm) | 0.389" (9.89mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -25°C ~ 105°C | - | - |
|
3365/50 100CBL RIBN 50COND 0.05 GRAY 100' |
3,800 |
|
数据手册 |
3365 | Spool | Active | Flat Cable | 50 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | 2.500" (63.50mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Zippable |
|

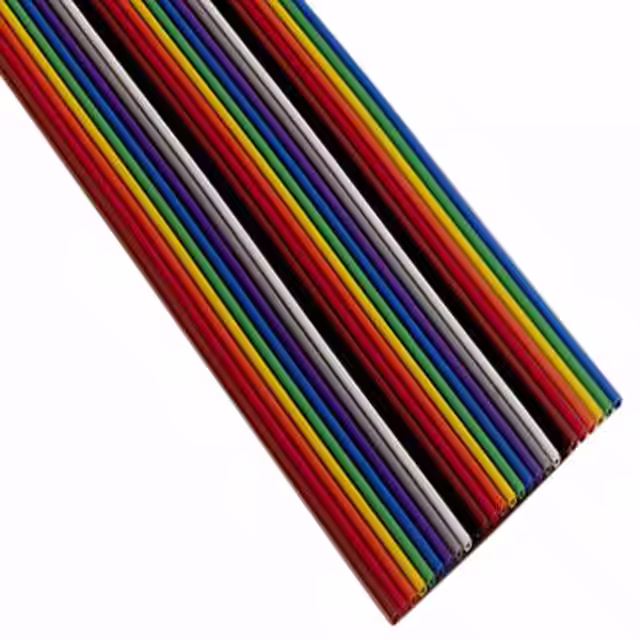

3302/26 100CBL RIBN 26COND 0.05 MULTI 100' |
700 |
|
数据手册 |
3302 | Spool | Active | Flat Cable | 26 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Multiple | 0.042" (1.07mm) | 1.300" (33.02mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 20462 | Zippable |
|
AWG28-34/F/300CBL RIBN 34COND 0.05 MULTI 300' |
1,800 |
|
数据手册 |
AWG | Spool | Active | Flat Cable | 34 | 0.050" (1.27mm) | 300.0' (91.44m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Multiple | 0.035" (0.89mm) | 1.700" (43.18mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | 105°C | UL Style 2651 | - |
|
HF625/08-100MCBL RIBN 8COND 0.039 GRAY 328.1' |
500 |
|
数据手册 |
HF625 | Spool | Active | Flat Cable | 8 | 0.039" (1.00mm) | 328.1' (100.00m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | 0.315" (8.00mm) | Polyolefin (PO) | 300 V | - | - | -40°C ~ 105°C | UL Style 21682 | Zippable |
|
3811/25 100CBL RIBN 25COND 0.05 MULTI 100' |
105 |
|
数据手册 |
3811 | Spool | Active | Flat Cable | 25 | 0.050" (1.27mm) | 100.0' (30.48m) | 26 AWG | 7 Strands / 34 AWG | Unshielded | Multiple | 0.042" (1.07mm) | 1.250" (31.75mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 20462 | Zippable |
|
AWG28-40/F/300CBL RIBN 40COND 0.05 MULTI 300' |
1,800 |
|
数据手册 |
AWG | Spool | Active | Flat Cable | 40 | 0.050" (1.27mm) | 300.0' (91.44m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Multiple | 0.035" (0.89mm) | 2.000" (50.80mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | 105°C | UL Style 2651 | - |
|
63910915521CABCBL RIBN 9COND 0.05 GRAY 3.28' |
141 |
|
数据手册 |
WR-CAB | Bag | Active | Flat Cable | 9 | 0.050" (1.27mm) | 3.28' (1000.00mm) | 28 AWG | - | Unshielded | Gray | 0.035" (0.89mm) | 0.450" (11.43mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -25°C ~ 105°C | UL Style 2651 | - |
|
3801/40 100CBL RIBN 40COND 0.05 GRAY 100' |
1,000 |
|
数据手册 |
3801 | Spool | Active | Flat Cable | 40 | 0.050" (1.27mm) | 100.0' (30.48m) | 26 AWG | 7 Strands / 34 AWG | Unshielded | Gray | 0.039" (0.99mm) | 2.000" (50.80mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Zippable |
|
3365/64SFCBL RIBN 64COND 0.05 GRAY 500' |
1,500 |
|
数据手册 |
3365 | Spool | Active | Flat Cable | 64 | 0.050" (1.27mm) | 500.0' (152.40m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | 3.200" (81.28mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Splice Free, Zippable |
|
3759/10 100SFCBL RIBN 10COND 0.05 BLACK 100' |
800 |
|
数据手册 |
3759 | Spool | Active | Flat Cable, Round Jacket | 10 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Black | - | 0.450" (11.43mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 80°C | UL Style 20267 | Splice Free, Zippable |
|
|
63911015521CABCBL RIBN 10COND 0.05 GRAY 3.28' |
201 |
|
数据手册 |
WR-CAB | Bag | Active | Flat Cable | 10 | 0.050" (1.27mm) | 3.28' (1000.00mm) | 28 AWG | - | Unshielded | Gray | 0.035" (0.89mm) | 0.489" (12.43mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -25°C ~ 105°C | - | - |
|
HF365/25SFCBL RIBN 25COND 0.05 GRAY 100' |
1,000 |
|
数据手册 |
HF365 | Spool | Active | Flat Cable | 25 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | 1.250" (31.75mm) | Polyolefin (PO) | 300 V | - | - | -40°C ~ 105°C | UL Style 21682 | Splice Free, Zippable |
|
|
1000570267CBL RIBN 6COND 0.025 NATURAL |
953 |
|
数据手册 |
Temp-Flex 100057 | Digi-Spool®, Continuous Spool | Active | Flat Cable | 6 | 0.025" (0.64mm) | Enter Number of Feet in Order Quantity | 30 AWG | Solid | Unshielded | Natural | - | 0.150" (3.81mm) | Fluorinated Ethylene-Propylene (FEP) | 300 V | - | - | -65°C ~ 200°C | - | - |
|
HF759/10CBL RIBN 10COND 0.05 GRAY 275' |
3,025 |
|
数据手册 |
HF759 | Spool | Active | Flat Cable, Round Jacket | 10 | 0.050" (1.27mm) | 275.0' (83.82m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | - | 0.450" (11.43mm) | Polyolefin (PO) | 150 V | - | - | -10°C ~ 75°C | UL Style 22170 | Zippable |
|
|
3365/64 300SFCBL RIBN 64COND 0.05 GRAY 300' |
5,100 |
|
数据手册 |
3365 | Spool | Active | Flat Cable | 64 | 0.050" (1.27mm) | 300.0' (91.44m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | 3.200" (81.28mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Splice Free, Zippable |
|

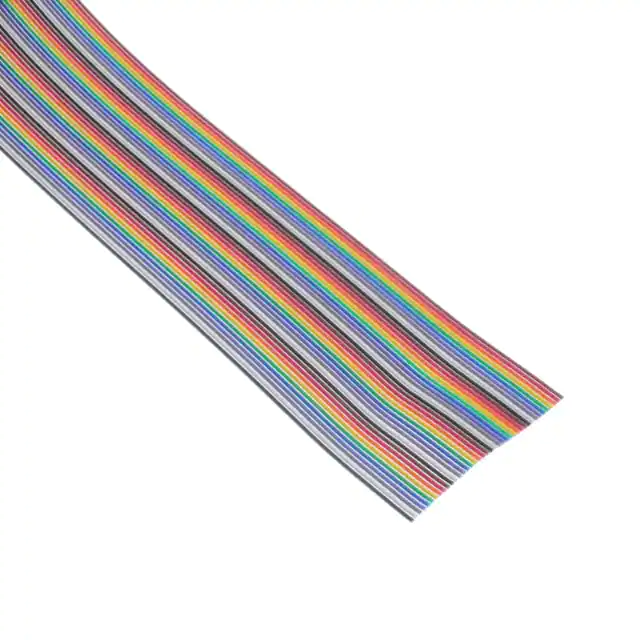

3811/40 300CBL RIBN 40COND 0.05 MULTI 300' |
1,500 |
|
数据手册 |
3811 | Spool | Active | Flat Cable | 40 | 0.050" (1.27mm) | 300.0' (91.44m) | 26 AWG | 7 Strands / 34 AWG | Unshielded | Multiple | 0.042" (1.07mm) | 2.000" (50.80mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 20462 | Zippable |
|

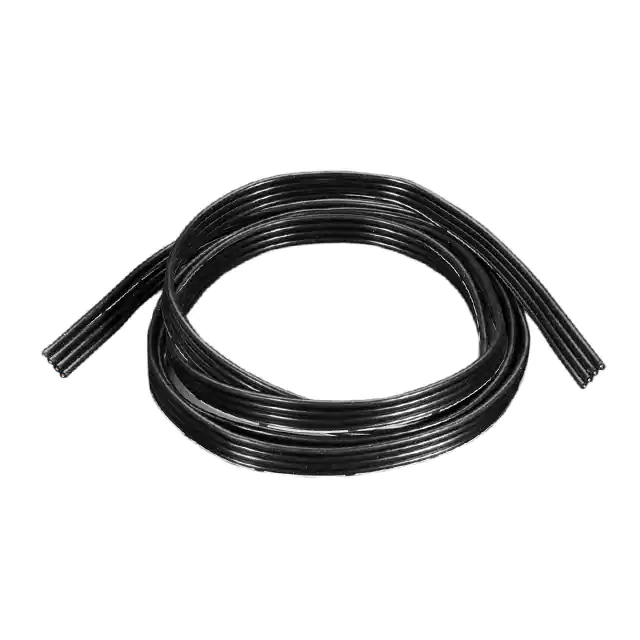

3892CBL RIBN 4COND FLAT BLACK 3.28' |
126 |
|
数据手册 |
- | Bulk | Active | Flat Cable | 4 | - | 3.28' (1000.00mm) | 26 AWG | - | Unshielded | Black | - | - | Silicone | 600 V | - | - | -60°C ~ 200°C | - | Zippable |
|
3659/10 100CBL RIBN 10COND 0.05 BLACK 100' |
3,100 |
|
数据手册 |
3659 | Spool | Active | Flat Cable, Round Jacket | 10 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Shielded | Black | - | 0.450" (11.43mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 20267 | Zippable |
|
|
63911215521CABCBL RIBN 12COND 0.05 GRAY 3.28' |
130 |
|
数据手册 |
WR-CAB | Bag | Active | Flat Cable | 12 | 0.050" (1.27mm) | 3.28' (1000.00mm) | 28 AWG | - | Unshielded | Gray | 0.035" (0.89mm) | 0.589" (14.97mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -25°C ~ 105°C | - | - |
