扁平排线
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电缆类型 | 导体数量 | 间距 | 长度 | 线规 | 导体股数 | 屏蔽 | 护套颜色 | 带材厚度 | 带材宽度 | 护套（绝缘）材料 | 电压 | 工作温度 | 额定值 | 特性 | 额定值 | 端接方式 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3539/10 300CBL RIBN 10COND 0.05 GRAY 1' |
1,535 |
|
数据手册 |
3539 | Bulk | Discontinued at Digi-Key | Flat Cable | 10 | 0.050" (1.27mm) | 1.00' (304.80mm) | 28 AWG | 19 Strands / 40 AWG | Unshielded | Gray | 0.035" (0.89mm) | 0.500" (12.70mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Zippable |
|
3749/10 100CBL RIBN 10COND 0.025 GRAY 1' |
4,036 |
|
数据手册 |
3749 | Bulk | Discontinued at Digi-Key | Flat Cable | 10 | 0.025" (0.64mm) | 1.00' (304.80mm) | 30 AWG | Solid | Unshielded | Gray | 0.025" (0.64mm) | 0.250" (6.35mm) | Thermoplastic Elastomer (TPE) | 150 V | - | - | -40°C ~ 105°C | UL Style 20297 | Zippable |
|

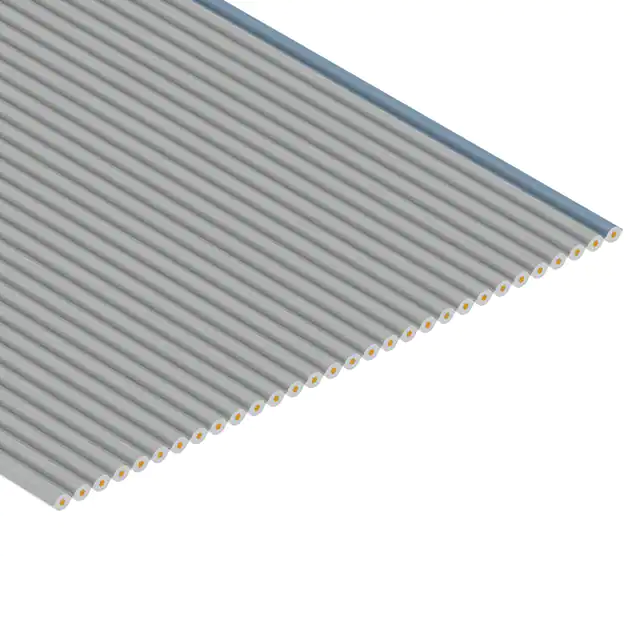

3749/30 100CBL RIBN 30COND 0.025 GRAY 1' |
2,577 |
|
数据手册 |
3749 | Bulk | Discontinued at Digi-Key | Flat Cable | 30 | 0.025" (0.64mm) | 1.00' (304.80mm) | 30 AWG | Solid | Unshielded | Gray | 0.025" (0.64mm) | 0.750" (19.05mm) | Thermoplastic Elastomer (TPE) | 150 V | - | - | -40°C ~ 105°C | UL Style 20297 | Zippable |
|
3801/04CBL RIBN 4COND FLAT 0.05 GRAY 1' |
3,775 |
|
数据手册 |
3801 | Bulk | Discontinued at Digi-Key | Flat Cable | 4 | 0.050" (1.27mm) | 1.00' (304.80mm) | 26 AWG | 7 Strands / 34 AWG | Unshielded | Gray | 0.039" (0.99mm) | - | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Zippable |
|
HF447/10 100'CBL RIBN 10COND 0.025 GRAY 1' |
2,144 |
|
数据手册 |
HF447 | Box | Discontinued at Digi-Key | Flat Cable | 10 | 0.025" (0.64mm) | 1.00' (304.80mm) | 30 AWG | Solid | Unshielded | Gray | 0.025" (0.64mm) | 0.250" (6.35mm) | Ethylene Vinyl Acetate Copolymer (EVA), Polyolefin (PO) | 150 V | - | - | -40°C ~ 90°C | - | - |
|
|
HF447/16 100'CBL RIBN 16COND 0.025 GRAY 1' |
2,395 |
|
数据手册 |
HF447 | Box | Discontinued at Digi-Key | Flat Cable | 16 | 0.025" (0.64mm) | 1.00' (304.80mm) | 30 AWG | Solid | Unshielded | Gray | 0.025" (0.64mm) | 0.400" (10.16mm) | Ethylene Vinyl Acetate Copolymer (EVA), Polyolefin (PO) | 150 V | - | - | -40°C ~ 90°C | - | - |
|
|
3801/04CBL RIBN 4COND 0.05 GRAY 100' |
4,543 |
|
数据手册 |
3801 | Bulk | Discontinued at Digi-Key | Flat Cable | 4 | 0.050" (1.27mm) | 100.0' (30.48m) | 26 AWG | 7 Strands / 34 AWG | Unshielded | Gray | 0.039" (0.99mm) | - | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Zippable |
|
3782-12P-270A 100FTCBL RIBN 24COND TWIST PAIR 50' |
2,530 |
|
数据手册 |
3782 | Bulk | Obsolete | Flat Twisted Pair | 24 (12 Pair Twisted) | 0.050" (1.27mm) | 50.0' (15.24m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Multiple | 0.035" (0.89mm) | 1.200" (30.48mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 80°C | - | Zippable |
|
3782-5P-270A 100FTCBL RIBN 10COND TWIST PAIR 50' |
2,024 |
|
数据手册 |
3782 | Bulk | Obsolete | Flat Twisted Pair | 10 (5 Pair Twisted) | 0.050" (1.27mm) | 50.0' (15.24m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Multiple | 0.035" (0.89mm) | 0.500" (12.70mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 80°C | - | Zippable |
|
|
3801/04CBL RIBN 4COND 0.05 GRAY 50' |
1,529 |
|
数据手册 |
3801 | Bulk | Discontinued at Digi-Key | Flat Cable | 4 | 0.050" (1.27mm) | 50.0' (15.24m) | 26 AWG | 7 Strands / 34 AWG | Unshielded | Gray | 0.039" (0.99mm) | - | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Zippable |
|
|
3782-12P-270A 100FTCBL RIBN 24COND TWIST PAIR 25' |
4,574 |
|
数据手册 |
3782 | Bulk | Obsolete | Flat Twisted Pair | 24 (12 Pair Twisted) | 0.050" (1.27mm) | 25.0' (7.62m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Multiple | 0.035" (0.89mm) | 1.200" (30.48mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 80°C | - | Zippable |
|
|
3782-5P-270A 100FTCBL RIBN 10COND TWIST PAIR 25' |
1,283 |
|
数据手册 |
3782 | Bulk | Obsolete | Flat Twisted Pair | 10 (5 Pair Twisted) | 0.050" (1.27mm) | 25.0' (7.62m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Multiple | 0.035" (0.89mm) | 0.500" (12.70mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 80°C | - | Zippable |
|
|
3801/04CBL RIBN 4COND 0.05 GRAY 25' |
3,693 |
|
数据手册 |
3801 | Bulk | Discontinued at Digi-Key | Flat Cable | 4 | 0.050" (1.27mm) | 25.0' (7.62m) | 26 AWG | 7 Strands / 34 AWG | Unshielded | Gray | 0.039" (0.99mm) | - | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Zippable |
|
|
3782-12P-270A 100FTCBL RIBN 24COND TWIST PAIR 10' |
1,618 |
|
数据手册 |
3782 | Bulk | Obsolete | Flat Twisted Pair | 24 (12 Pair Twisted) | 0.050" (1.27mm) | 10.0' (3.05m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Multiple | 0.035" (0.89mm) | 1.200" (30.48mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 80°C | - | Zippable |
|
|
3782-5P-270A 100FTCBL RIBN 10COND TWIST PAIR 10' |
4,012 |
|
数据手册 |
3782 | Bulk | Obsolete | Flat Twisted Pair | 10 (5 Pair Twisted) | 0.050" (1.27mm) | 10.0' (3.05m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Multiple | 0.035" (0.89mm) | 0.500" (12.70mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 80°C | - | Zippable |
|
3782-10P-540A 100FTCBL RIBN 20COND TWIST PAIR 5' |
2,206 |
|
数据手册 |
3782 | Bulk | Obsolete | Flat Twisted Pair | 20 (10 Pair Twisted) | 0.050" (1.27mm) | 5.0' (1.52m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Multiple | 0.035" (0.89mm) | 1.000" (25.40mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 80°C | - | Zippable |
|
|
3782-12P-270A 100FTCBL RIBN 24COND TWIST PAIR 5' |
1,996 |
|
数据手册 |
3782 | Bulk | Obsolete | Flat Twisted Pair | 24 (12 Pair Twisted) | 0.050" (1.27mm) | 5.0' (1.52m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Multiple | 0.035" (0.89mm) | 1.200" (30.48mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 80°C | - | Zippable |
|
|
3782-5P-270A 100FTCBL RIBN 10COND TWIST PAIR 5' |
2,361 |
|
数据手册 |
3782 | Bulk | Obsolete | Flat Twisted Pair | 10 (5 Pair Twisted) | 0.050" (1.27mm) | 5.0' (1.52m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Multiple | 0.035" (0.89mm) | 0.500" (12.70mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 80°C | - | Zippable |
|
|
3801/04CBL RIBN 4COND FLAT 0.05 GRAY 5' |
4,817 |
|
数据手册 |
3801 | Bulk | Discontinued at Digi-Key | Flat Cable | 4 | 0.050" (1.27mm) | 5.0' (1.52m) | 26 AWG | 7 Strands / 34 AWG | Unshielded | Gray | 0.039" (0.99mm) | - | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Zippable |
|
3319/08 300CBL RIBN 8COND 0.05 BLACK 200' |
4,003 |
|
数据手册 |
3319 | Bulk | Discontinued at Digi-Key | Flat Cable | 8 | 0.050" (1.27mm) | 200.0' (60.96m) | 28 AWG | 19 Strands / 40 AWG | Unshielded | Black | 0.035" (0.89mm) | - | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Zippable |
