扁平排线
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电缆类型 | 导体数量 | 间距 | 长度 | 线规 | 导体股数 | 屏蔽 | 护套颜色 | 带材厚度 | 带材宽度 | 护套（绝缘）材料 | 电压 | 工作温度 | 额定值 | 特性 | 额定值 | 端接方式 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3659/16 100CBL RIBN 16COND 0.05 BLACK 50' |
3,329 |
|
数据手册 |
3659 | Bulk | Active | Flat Cable, Round Jacket | 16 | 0.050" (1.27mm) | 50.0' (15.24m) | 28 AWG | 7 Strands / 36 AWG | Shielded | Black | - | 0.750" (19.05mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 20267 | Zippable |
|
HF365/64SFCBL RIBN 64COND 0.05 GRAY 25' |
4,110 |
|
数据手册 |
HF365 | Box | Active | Flat Cable | 64 | 0.050" (1.27mm) | 25.0' (7.62m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | 3.200" (81.28mm) | Polyolefin (PO) | 300 V | - | - | -40°C ~ 105°C | UL Style 21682 | Splice Free, Zippable |
|
HF625/08-100MCBL RIBN 8COND 0.039 GRAY 229.7' |
4,337 |
|
数据手册 |
HF625 | Bulk | Discontinued at Digi-Key | Flat Cable | 8 | 0.039" (1.00mm) | 229.7' (70.00m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | 0.315" (8.00mm) | Polyolefin (PO) | 300 V | - | - | -40°C ~ 105°C | UL Style 21682 | Zippable |
.jpg)
|
1700/34 100SFCBL RIBN 34COND TWIST PAIR 50' |
2,560 |
|
数据手册 |
1700 | Bulk | Active | Flat Twisted Pair | 34 (17 Pair Twisted) | 0.050" (1.27mm) | 50.0' (15.24m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Multiple | 0.080" (2.03mm) | 1.700" (43.18mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 20462 | Splice Free |
|

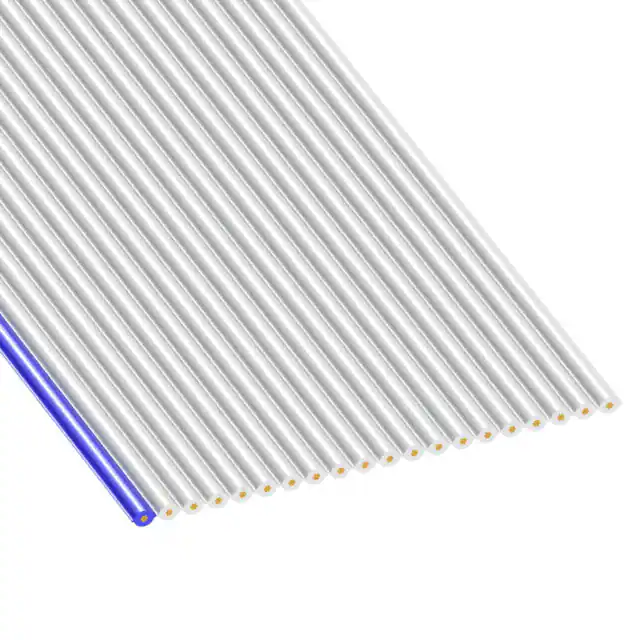

3609/20 100CBL RIBN 20COND 0.025 WHITE 10' |
3,468 |
|
数据手册 |
3609 | Bulk | Active | Flat Cable | 20 | 0.025" (0.64mm) | 10.0' (3.05m) | 30 AWG | 7 Strands / 38 AWG | Unshielded | White | 0.024" (0.61mm) | 0.500" (12.70mm) | Fluorinated Ethylene-Propylene (FEP) | 150 V | - | - | -55°C ~ 150°C | UL Style 20726 | - |
|
3365/34 300SFCBL RIBN 34COND 0.05 GRAY 100' |
4,660 |
|
数据手册 |
3365 | Bulk | Active | Flat Cable | 34 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | 1.700" (43.18mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Splice Free, Zippable |
|
3625/16 100MSFCBL RIBN 16COND 0.039 GRAY 164' |
3,898 |
|
数据手册 |
3625 | Bulk | Discontinued at Digi-Key | Flat Cable | 16 | 0.039" (1.00mm) | 164.0' (50.00m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | 0.630" (16.00mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Splice Free, Zippable |
|
AWG 28-50/FCBL RIBN 50COND 0.05 MULTI 100' |
4,509 |
|
数据手册 |
AWG | Bulk | Active | Flat Cable | 50 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 0.0050" | Unshielded | Multiple | - | 2.500" (63.50mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | 105°C | - | - |
|
|
301-28-25-GR-0300FCBL RIBN 25COND 0.039 GRAY 300' |
1,854 |
|
数据手册 |
- | Box | Obsolete | Flat Cable | 25 | 0.039" (1.00mm) | 300.0' (91.44m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.039" (0.99mm) | 0.984" (25.00mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -10°C ~ 105°C | UL Style 2651 | - |
|
HF100/30TPCBL RIBN 30COND TWIST PAIR 25' |
2,744 |
|
数据手册 |
HF100 | Box | Active | Flat Twisted Pair | 30 (15 Pair Twisted) | 0.050" (1.27mm) | 25.0' (7.62m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Blue, White | 0.070" (1.78mm) | 1.500" (38.10mm) | Polyolefin (PO) | 150 V | - | - | -40°C ~ 105°C | UL Style 21008 | - |
|
|
AWG 28-26/G-50FLAT CABLE |
3,159 |
|
数据手册 |
AWG | Bulk | Active | Flat Cable | 26 | 0.050" (1.27mm) | 164.0' (50.00m) | 28 AWG | 7 Strands / 0.0050" | Unshielded | Gray | 0.033" (0.84mm) | 1.300" (33.02mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | 105°C | - | - |
.jpg)
|
3302/37 300SFCBL RIBN 37COND 0.05 MULTI 50' |
2,564 |
|
数据手册 |
3302 | Bulk | Active | Flat Cable | 37 | 0.050" (1.27mm) | 50.0' (15.24m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Multiple | 0.042" (1.07mm) | 1.850" (46.99mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 20462 | Splice Free, Zippable |
|
1000570030CBL RIBN 6COND 0.05 BLUE 50' |
2,343 |
|
数据手册 |
Temp-Flex 100057 | Spool | Discontinued at Digi-Key | Flat Cable | 6 | 0.050" (1.27mm) | 50.0' (15.24m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Blue | - | 0.300" (7.62mm) | Fluorinated Ethylene-Propylene (FEP) | 300 V | - | - | -55°C ~ 200°C | UL Style 20424 | - |
|
AWG28-34/G/300CBL RIBN 34COND 0.05 GRAY 100' |
3,021 |
|
数据手册 |
AWG | Bulk | Discontinued at Digi-Key | Flat Cable | 34 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | 1.700" (43.18mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -10°C ~ 105°C | UL Style 2651 | - |
|
AWG28-20/F/300CBL RIBN 20COND 0.05 MULTI 100' |
3,077 |
|
数据手册 |
AWG | Bulk | Discontinued at Digi-Key | Flat Cable | 20 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Multiple | 0.035" (0.89mm) | 1.000" (25.40mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | 105°C | UL Style 2651 | - |
|
3517/16 100CBL RIBN 16COND 0.05 GRAY 25' |
1,325 |
|
数据手册 |
3517 | Bulk | Active | Flat Cable, Flat Jacket | 16 | 0.050" (1.27mm) | 25.0' (7.62m) | 28 AWG | 7 Strands / 36 AWG | Shielded | Gray | 0.110" (2.79mm) | 0.930" (23.62mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 80°C | UL Style 2912 | - |
|
HF447/68 100'CBL RIBN 68COND 0.025 GRAY 25' |
2,697 |
|
数据手册 |
HF447 | Box | Active | Flat Cable | 68 | 0.025" (0.64mm) | 25.0' (7.62m) | 30 AWG | Solid | Unshielded | Gray | 0.025" (0.64mm) | 1.700" (43.18mm) | Ethylene Vinyl Acetate Copolymer (EVA), Polyolefin (PO) | 150 V | - | - | -40°C ~ 90°C | - | - |
|
3749/100 100CBL RIBN 100COND 0.025 GRAY 25' |
4,394 |
|
数据手册 |
3749 | Bulk | Active | Flat Cable | 100 | 0.025" (0.64mm) | 25.0' (7.62m) | 30 AWG | Solid | Unshielded | Gray | 0.025" (0.64mm) | 2.500" (63.50mm) | Thermoplastic Elastomer (TPE) | 150 V | - | - | -40°C ~ 105°C | UL Style 20297 | Zippable |
|
|
0082243409CBL RIBN 9COND 0.079 GRAY 100' |
4,997 |
|
数据手册 |
24473 | Bulk | Obsolete | Flat Cable | 9 | 0.079" (2.00mm) | 100.0' (30.48m) | 24 AWG | 19 Strands / 36 AWG | Unshielded | Gray | 0.041" (1.04mm) | 0.709" (18.01mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL E61522 | - |
|
C3319/14 100CBL RIBN 14COND 0.05 BLACK 25' |
2,802 |
|
数据手册 |
3319 | Bulk | Active | Flat Cable | 14 | 0.050" (1.27mm) | 25.0' (7.62m) | 28 AWG | 19 Strands / 40 AWG | Unshielded | Black | 0.035" (0.89mm) | 0.700" (17.78mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Zippable |
