扁平排线
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电缆类型 | 导体数量 | 间距 | 长度 | 线规 | 导体股数 | 屏蔽 | 护套颜色 | 带材厚度 | 带材宽度 | 护套（绝缘）材料 | 电压 | 工作温度 | 额定值 | 特性 | 额定值 | 端接方式 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
3754/80 300CBL RIBN 80COND 0.025 GRAY 25' |
2,599 |
|
数据手册 |
3754 | Bulk | Active | Flat Cable | 80 | 0.025" (0.64mm) | 25.0' (7.62m) | 30 AWG | 7 Strands / 38 AWG | Unshielded | Gray | 0.025" (0.64mm) | 2.000" (50.80mm) | Poly-Vinyl Chloride (PVC) | 30 V | - | - | -20°C ~ 105°C | UL Style 20596 | - |
|
HF625/06-100MCBL RIBN 6COND 0.039 GRAY 164' |
1,557 |
|
数据手册 |
HF625 | Bulk | Discontinued at Digi-Key | Flat Cable | 6 | 0.039" (1.00mm) | 164.0' (50.00m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | 0.236" (6.00mm) | Polyolefin (PO) | 300 V | - | - | -40°C ~ 105°C | UL Style 21682 | Zippable |
|
3811/34 100CBL RIBN 34COND 0.05 MULTI 25' |
2,988 |
|
数据手册 |
3811 | Bulk | Discontinued at Digi-Key | Flat Cable | 34 | 0.050" (1.27mm) | 25.0' (7.62m) | 26 AWG | 7 Strands / 34 AWG | Unshielded | Multiple | 0.042" (1.07mm) | 1.700" (43.18mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 20462 | Zippable |
|
0082263004CBL RIBN 4COND 0.079 GRAY 100' |
1,271 |
|
数据手册 |
24463 | Bulk | Obsolete | Flat Cable | 4 | 0.079" (2.00mm) | 100.0' (30.48m) | 26 AWG | 19 Strands / 38 AWG | Unshielded | Gray | 0.041" (1.04mm) | 0.315" (8.00mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL E61522 | - |
|
|
2010/15 100CBL RIBN 15COND 0.05 WHITE 100' |
4,390 |
|
数据手册 |
2010 | Bulk | Obsolete | Flat Cable | 15 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | White | 0.035" (0.89mm) | 0.750" (19.05mm) | Polyolefin (PO) | 30 V | - | - | -20°C ~ 105°C | UL Style 20930 | Zippable |
|
HF100/40TPCBL RIBN 40COND TWIST PAIR 10' |
1,140 |
|
数据手册 |
HF100 | Box | Active | Flat Twisted Pair | 40 (20 Pair Twisted) | 0.050" (1.27mm) | 10.0' (3.05m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Blue, White | 0.070" (1.78mm) | 2.000" (50.80mm) | Polyolefin (PO) | 150 V | - | - | -40°C ~ 105°C | UL Style 21008 | - |
|
3659/16 300CBL RIBN 16COND 0.05 BLACK 25' |
2,121 |
|
数据手册 |
3659 | Bulk | Active | Flat Cable, Round Jacket | 16 | 0.050" (1.27mm) | 25.0' (7.62m) | 28 AWG | 7 Strands / 36 AWG | Shielded | Black | - | 0.750" (19.05mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 20267 | Zippable |
|
1785/26 100SFCBL RIBN 26COND TWIST PAIR 10' |
3,530 |
|
数据手册 |
1785 | Bulk | Active | Flat Twisted Pair, Flat Jacket | 26 (13 Pair Twisted) | 0.050" (1.27mm) | 10.0' (3.05m) | 28 AWG | 7 Strands / 36 AWG | Shielded | Black | 0.120" (3.05mm) | 1.430" (36.32mm) | Poly-Vinyl Chloride (PVC) | 150 V | - | - | -20°C ~ 80°C | UL Style 2912 | Splice Free |
|
3759/34 100CBL RIBN 34COND 0.05 BLACK 25' |
3,084 |
|
数据手册 |
3759 | Bulk | Active | Flat Cable, Round Jacket | 34 | 0.050" (1.27mm) | 25.0' (7.62m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Black | - | 1.650" (41.91mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 80°C | UL Style 20267 | Zippable |
.jpg)
|
3754/40 300CBL RIBN 40COND 0.025 GRAY 50' |
1,230 |
|
数据手册 |
3754 | Bulk | Active | Flat Cable | 40 | 0.025" (0.64mm) | 50.0' (15.24m) | 30 AWG | 7 Strands / 38 AWG | Unshielded | Gray | 0.025" (0.64mm) | 1.000" (25.40mm) | Poly-Vinyl Chloride (PVC) | 30 V | - | - | -20°C ~ 105°C | UL Style 20596 | - |
|
2010/34 100SFCBL RIBN 34COND 0.05 WHITE 50' |
2,559 |
|
数据手册 |
2010 | Bulk | Obsolete | Flat Cable | 34 | 0.050" (1.27mm) | 50.0' (15.24m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | White | 0.035" (0.89mm) | 1.700" (43.18mm) | Polyolefin (PO) | 30 V | - | - | -20°C ~ 105°C | UL Style 20930 | Splice Free, Zippable |
|
|
MCP-2000-3-025CBL RIBN 26COND TWIST PAIR 25' |
4,107 |
|
数据手册 |
- | Bulk | Active | Flat Twisted Pair, Flat Jacket | 26 | - | 25.0' (7.62m) | 22 AWG, 28 AWG | - | Shielded | Clear | 0.200" (5.08mm) | - | Flexx-Sil™ | 450 V | - | - | -65°C ~ 260°C | UL E324413, CE | - |
|
1000570031CBL RIBN 10COND 0.05 BLUE 25' |
3,857 |
|
数据手册 |
Temp-Flex 100057 | Spool | Discontinued at Digi-Key | Flat Cable | 10 | 0.050" (1.27mm) | 25.0' (7.62m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Blue | - | 0.500" (12.70mm) | Fluorinated Ethylene-Propylene (FEP) | 300 V | - | - | -55°C ~ 200°C | UL Style 20424 | - |
|
|
301-28-15-GR-0300FCBL RIBN 15COND 0.039 GRAY 300' |
1,967 |
|
数据手册 |
- | Box | Obsolete | Flat Cable | 15 | 0.039" (1.00mm) | 300.0' (91.44m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.039" (0.99mm) | - | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -10°C ~ 105°C | UL Style 2651 | - |
|
7700/10 100'CBL RIBN 10COND 0.025 SILVER 50' |
1,264 |
|
数据手册 |
7700 | Box | Discontinued at Digi-Key | Flat Cable | 10 | 0.025" (0.64mm) | 50.0' (15.24m) | 30 AWG | Solid | Unshielded | Silver | 0.030" (0.76mm) | 0.300" (7.62mm) | Polyolefin (PO) | 30 V | - | - | -20°C ~ 80°C | - | - |
|
3365/40 300CBL RIBN 40COND 0.05 GRAY 50' |
3,420 |
|
数据手册 |
3365 | Bulk | Active | Flat Cable | 40 | 0.050" (1.27mm) | 50.0' (15.24m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | 2.000" (50.80mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Zippable |
|
666K101-20CBL RIBN 20COND 0.039 CLEAR 25' |
4,306 |
|
数据手册 |
- | Bulk | Discontinued at Digi-Key | Flat Cable | 20 | 0.039" (1.00mm) | 25.0' (7.62m) | 28 AWG | - | Unshielded | Clear | 0.035" (0.89mm) | 0.787" (20.00mm) | Flexx-Sil™ | 450 V | - | - | -65°C ~ 260°C | UL E324413, CE | - |
|
AWG28-16/G-1/300-RCBL RIBN 16COND 0.039 GRAY 100' |
2,273 |
|
数据手册 |
AWG | Bulk | Active | Flat Cable | 16 | 0.039" (1.00mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | 0.630" (16.00mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -10°C ~ 105°C | UL Style 2651 | - |
|

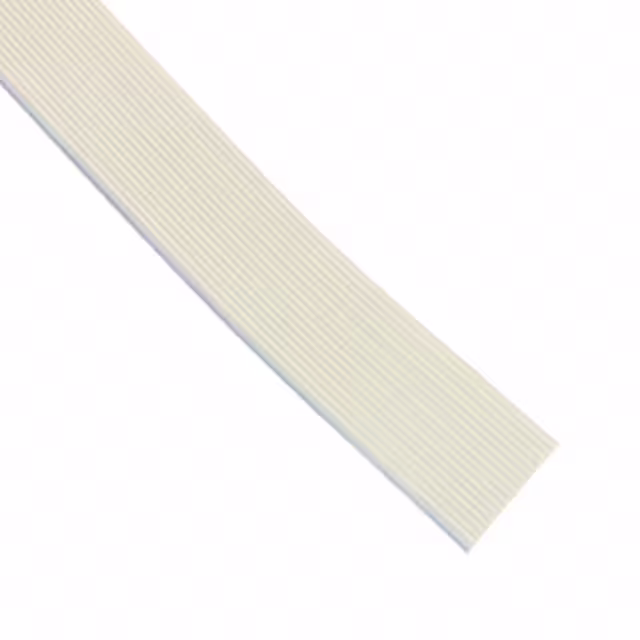

2049/20 100SFCBL RIBN 20COND 0.025 WHITE 100' |
1,449 |
|
数据手册 |
2049 | Spool | Obsolete | Flat Cable | 20 | 0.025" (0.64mm) | 100.0' (30.48m) | 30 AWG | Solid | Unshielded | White | 0.025" (0.64mm) | 0.500" (12.70mm) | Polyolefin (PO) | 30 V | - | - | -20°C ~ 105°C | UL Style 20930 | Splice Free |
.jpg)
|
3302/10 300CBL RIBN 10COND 0.05 MULTI 100' |
3,424 |
|
数据手册 |
3302 | Bulk | Active | Flat Cable | 10 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Multiple | 0.042" (1.07mm) | 0.500" (12.70mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 20462 | Zippable |
