扁平排线
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电缆类型 | 导体数量 | 间距 | 长度 | 线规 | 导体股数 | 屏蔽 | 护套颜色 | 带材厚度 | 带材宽度 | 护套（绝缘）材料 | 电压 | 工作温度 | 额定值 | 特性 | 额定值 | 端接方式 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1000570024CBL RIBN 40COND 0.025 NATU 50' Molex - Temp Flex |
2,414 |
|
数据手册 |
Temp-Flex 100057 | Spool | Discontinued at Digi-Key | Flat Cable | 40 | 0.025" (0.64mm) | 50.0' (15.24m) | 30 AWG | 7 Strands / 38 AWG | Unshielded | Natural | - | 1.000" (25.40mm) | Fluorinated Ethylene-Propylene (FEP) | 150 V | - | - | -55°C ~ 200°C | UL Style 20726 | - |
|
1000570037CBL RIBN 34COND 0.05 BLUE 50' Molex - Temp Flex |
2,160 |
|
数据手册 |
Temp-Flex 100057 | Spool | Discontinued at Digi-Key | Flat Cable | 34 | 0.050" (1.27mm) | 50.0' (15.24m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Blue | - | 1.700" (43.18mm) | Fluorinated Ethylene-Propylene (FEP) | 300 V | - | - | -55°C ~ 200°C | UL Style 20424 | - |
|
1000570345CBL RIBN 20COND 0.05 RED 100' Molex - Temp Flex |
2,558 |
|
数据手册 |
Temp-Flex 100057 | Spool | Obsolete | Flat Cable | 20 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Red | - | 1.000" (25.40mm) | Fluorinated Ethylene-Propylene (FEP) | 300 V | - | - | -55°C ~ 200°C | UL Style 20424 | - |
|
1000570040CBL RIBN 60COND 0.05 BLUE 25' Molex - Temp Flex |
1,356 |
|
数据手册 |
Temp-Flex 100057 | Spool | Discontinued at Digi-Key | Flat Cable | 60 | 0.050" (1.27mm) | 25.0' (7.62m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Blue | - | 3.000" (76.20mm) | Fluorinated Ethylene-Propylene (FEP) | 300 V | - | - | -55°C ~ 200°C | UL Style 20424 | - |
|
1000570038CBL RIBN 40COND 0.05 BLUE 50' Molex - Temp Flex |
2,151 |
|
数据手册 |
Temp-Flex 100057 | Spool | Discontinued at Digi-Key | Flat Cable | 40 | 0.050" (1.27mm) | 50.0' (15.24m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Blue | - | 2.000" (50.80mm) | Fluorinated Ethylene-Propylene (FEP) | 300 V | - | - | -55°C ~ 200°C | UL Style 20424 | - |
|
1000570029CBL RIBN 100COND 0.025 NATU 25' Molex - Temp Flex |
1,871 |
|
数据手册 |
Temp-Flex 100057 | Spool | Discontinued at Digi-Key | Flat Cable | 100 | 0.025" (0.64mm) | 25.0' (7.62m) | 30 AWG | 7 Strands / 38 AWG | Unshielded | Natural | - | 2.500" (63.50mm) | Fluorinated Ethylene-Propylene (FEP) | 150 V | - | - | -55°C ~ 200°C | UL Style 20726 | - |
|
1000570025CBL RIBN 50COND 0.025 NATU 50' Molex - Temp Flex |
3,688 |
|
数据手册 |
Temp-Flex 100057 | Spool | Discontinued at Digi-Key | Flat Cable | 50 | 0.025" (0.64mm) | 50.0' (15.24m) | 30 AWG | 7 Strands / 38 AWG | Unshielded | Natural | - | 1.250" (31.75mm) | Fluorinated Ethylene-Propylene (FEP) | 150 V | - | - | 150°C | UL Style 20726 | - |
|
1000570039CBL RIBN 50COND 0.05 BLUE 50' Molex - Temp Flex |
4,177 |
|
数据手册 |
Temp-Flex 100057 | Spool | Discontinued at Digi-Key | Flat Cable | 50 | 0.050" (1.27mm) | 50.0' (15.24m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Blue | - | 2.500" (63.50mm) | Fluorinated Ethylene-Propylene (FEP) | 300 V | - | - | -55°C ~ 200°C | UL Style 20424 | - |
|
1000570026CBL RIBN 60COND 0.025 NATU 50' Molex - Temp Flex |
2,031 |
|
数据手册 |
Temp-Flex 100057 | Spool | Discontinued at Digi-Key | Flat Cable | 60 | 0.025" (0.64mm) | 50.0' (15.24m) | 30 AWG | 7 Strands / 38 AWG | Unshielded | Natural | - | 1.500" (38.10mm) | Fluorinated Ethylene-Propylene (FEP) | 150 V | - | - | -55°C ~ 200°C | UL Style 20726 | - |
|
|

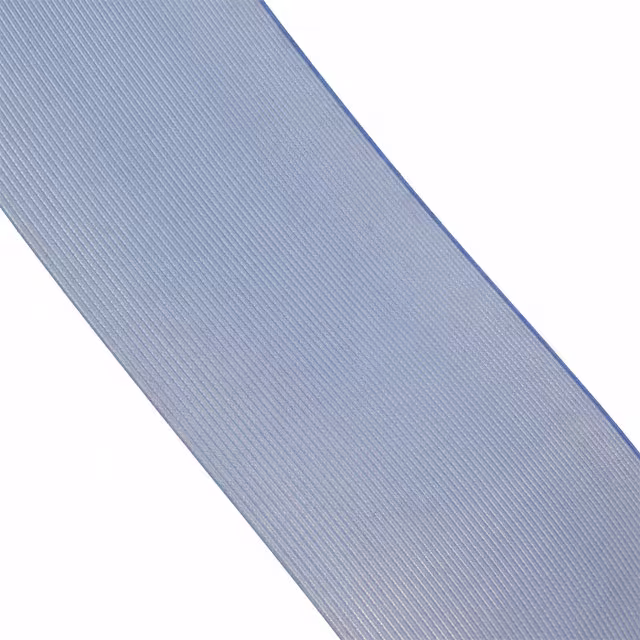

1000570040CBL RIBN 60COND 0.05 BLUE 50' Molex - Temp Flex |
3,733 |
|
数据手册 |
Temp-Flex 100057 | Spool | Discontinued at Digi-Key | Flat Cable | 60 | 0.050" (1.27mm) | 50.0' (15.24m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Blue | - | 3.000" (76.20mm) | Fluorinated Ethylene-Propylene (FEP) | 300 V | - | - | -55°C ~ 200°C | UL Style 20424 | - |
