固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B82477P4472M000FIXED IND 4.7UH 7.3A 12 MOHM SMD EPCOS - TDK Electronics |
722 |
|
数据手册 |
B82477P4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 7.3 A | 8.4A | Shielded | 12mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.335" (8.50mm) |
|
B82559A5682A033ERU33 PTH FLAT WIRE INDUCTOR 6.8 EPCOS - TDK Electronics |
4,400 |
|
数据手册 |
ERU33 - Flat Wire Inductor | Nonstandard | Tray | Active | Wirewound | Ferrite | 6.8 µH | ±12% | 47.5 A | 56A | Shielded | 1.2mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Through Hole | - | 1.299" L x 1.154" W (33.00mm x 29.30mm) | 0.606" (15.40mm) |
|
|
B82559A5103A033ERU33 PTH FLAT WIRE INDUCTOR 10. EPCOS - TDK Electronics |
3,055 |
|
数据手册 |
ERU33 - Flat Wire Inductor | Nonstandard | Tray | Active | Wirewound | Ferrite | 10 µH | ±12% | 46 A | 36A | Shielded | 1.2mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Through Hole | - | 1.299" L x 1.154" W (33.00mm x 29.30mm) | 0.606" (15.40mm) |
|
B82559A0293A020FIXED IND 29UH 7 MOHM SMD EPCOS - TDK Electronics |
184 |
|
数据手册 |
ERU20 - Flat Wire Inductor | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 29 µH | ±10% | - | 11A | Shielded | 7mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.878" L x 0.866" W (22.30mm x 22.00mm) | 0.571" (14.50mm) |
|
B82559A0153A024FIXED IND 15UH 25.5A 2.8MOHM SMD EPCOS - TDK Electronics |
2,132 |
|
数据手册 |
ERU24 - Flat Wire Inductor | Nonstandard, 3 Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±10% | 25.5 A | 24.6A | Shielded | 2.8mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.972" L x 0.898" W (24.70mm x 22.80mm) | 0.719" (18.25mm) |
|
B78108E1104J000FIXED IND 100UH 640MA 1.45OHM TH EPCOS - TDK Electronics |
968 |
|
数据手册 |
BC+ | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±5% | 640 mA | 580mA | Unshielded | 1.45Ohm Max | 60 @ 796kHz | 6MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.157" Dia x 0.374" L (4.00mm x 9.50mm) | - |
|
B78108E1153K000FIXED IND 15UH 1.6A 230 MOHM TH EPCOS - TDK Electronics |
143 |
|
数据手册 |
BC+ | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±10% | 1.6 A | 1.45A | Unshielded | 230mOhm Max | 40 @ 796kHz | 15MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.157" Dia x 0.374" L (4.00mm x 9.50mm) | - |
|
B82141A1473J000FIXED IND 47UH 200MA 2.4 OHM TH EPCOS - TDK Electronics |
732 |
|
数据手册 |
SBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±5% | 200 mA | - | Unshielded | 2.4Ohm Max | 55 @ 2.52MHz | 7.7MHz | - | -55°C ~ 125°C | 2.52 MHz | - | Through Hole | - | 0.118" Dia x 0.268" L (3.00mm x 6.80mm) | - |
|
B82144F2562K000FIXED IND 5.6UH 2.95A 0.09OHM TH EPCOS - TDK Electronics |
482 |
|
数据手册 |
LBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 5.6 µH | ±10% | 2.95 A | 3.75A | Unshielded | 90mOhm Max | 50 @ 2.52MHz | 45MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | - | 0.256" Dia x 0.362" L (6.50mm x 9.20mm) | - |
|

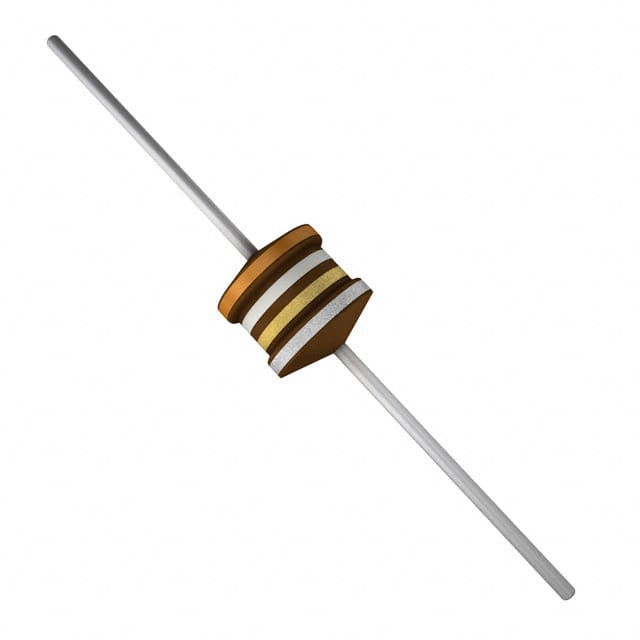

B82144F2392K000FIXED IND 3.9UH 3.35A 0.075OHM EPCOS - TDK Electronics |
514 |
|
数据手册 |
LBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.9 µH | ±10% | 3.35 A | 4.4A | Unshielded | 75mOhm Max | 60 @ 2.52MHz | 90MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | - | 0.256" Dia x 0.362" L (6.50mm x 9.20mm) | - |
