固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
B82422H1334J000FIXED IND 330UH 90MA 13 OHM SMD EPCOS - TDK Electronics |
4,000 |
|
数据手册 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±5% | 90 mA | - | Unshielded | 13Ohm Max | 20 @ 796kHz | 4.5MHz | AEC-Q200 | -55°C ~ 150°C | 796 kHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|

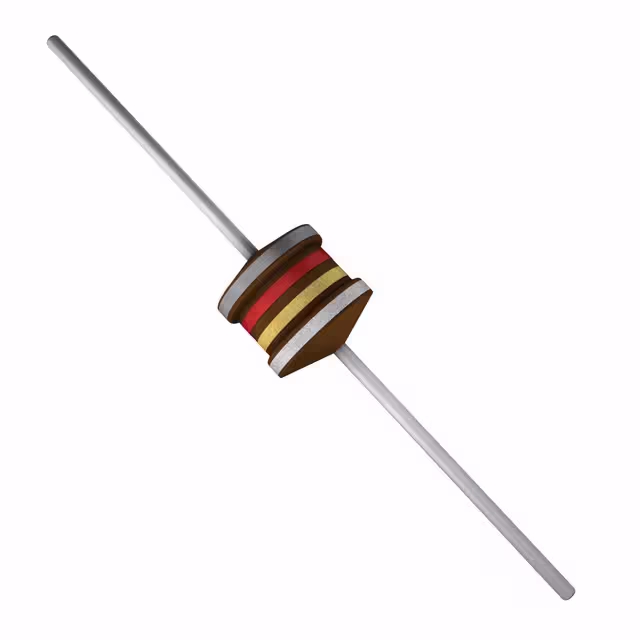

B82144F2822K000FIXED IND 8.2UH 2.65A 0.105OHM EPCOS - TDK Electronics |
1,049 |
|
数据手册 |
LBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±10% | 2.65 A | 3.1A | Unshielded | 105mOhm Max | 40 @ 252kHz | 28MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | - | 0.256" Dia x 0.362" L (6.50mm x 9.20mm) | - |
|

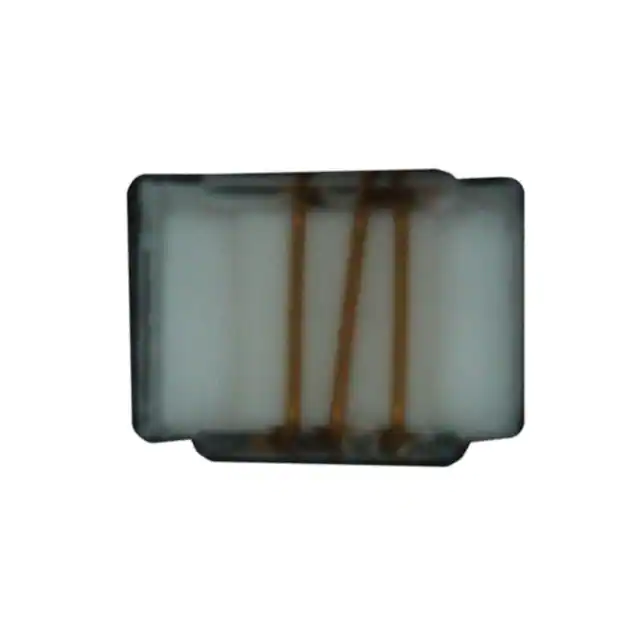

B82498F3100J000FIXED IND 10NH 700MA 90 MOHM SMD EPCOS - TDK Electronics |
16,543 |
|
数据手册 |
SIMID | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 10 nH | ±5% | 700 mA | - | Unshielded | 90mOhm Max | 50 @ 500MHz | 5GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.091" L x 0.067" W (2.30mm x 1.70mm) | 0.055" (1.40mm) |
|

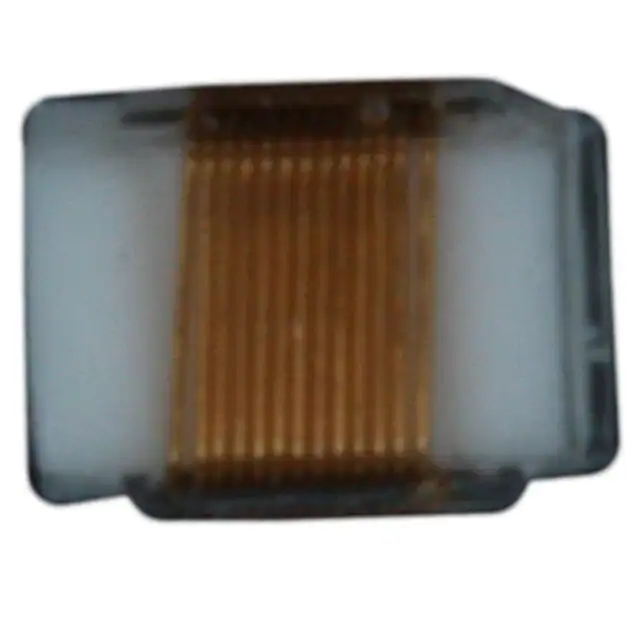

B82498F3151J000FIXED IND 150NH 400MA 420MOHM SM EPCOS - TDK Electronics |
10,898 |
|
数据手册 |
SIMID | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 150 nH | ±5% | 400 mA | - | Unshielded | 420mOhm Max | 45 @ 250MHz | 1.15GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.091" L x 0.067" W (2.30mm x 1.70mm) | 0.055" (1.40mm) |
|
B82498F3390J000FIXED IND 39NH 600MA 120MOHM SMD EPCOS - TDK Electronics |
7,866 |
|
数据手册 |
SIMID | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 39 nH | ±5% | 600 mA | - | Unshielded | 120mOhm Max | 65 @ 500MHz | 2.1GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.091" L x 0.067" W (2.30mm x 1.70mm) | 0.055" (1.40mm) |
|

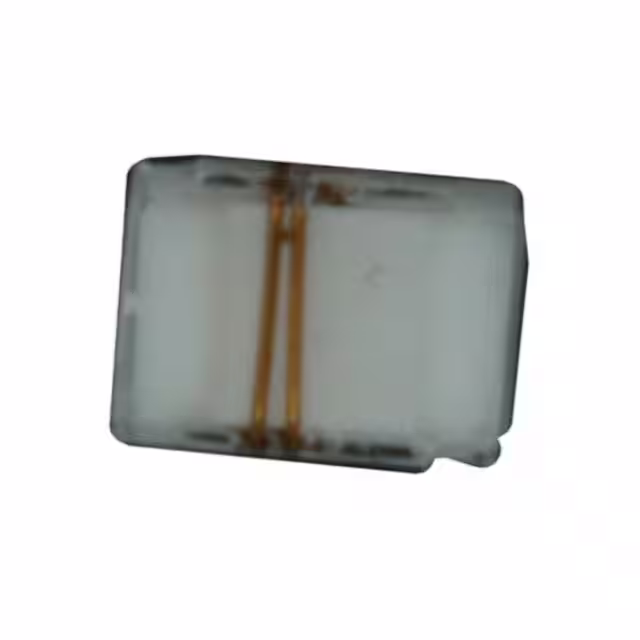

B82498F3689K000FIXED IND 6.8NH 800MA 50MOHM SMD EPCOS - TDK Electronics |
6,456 |
|
数据手册 |
SIMID | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 6.8 nH | ±10% | 800 mA | - | Unshielded | 50mOhm Max | 50 @ 1GHz | 6GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.091" L x 0.067" W (2.30mm x 1.70mm) | 0.055" (1.40mm) |
|
B82498F3181J001FIXED IND 180NH 340MA 530MOHM SM EPCOS - TDK Electronics |
5,778 |
|
数据手册 |
SIMID | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 180 nH | ±5% | 340 mA | - | Unshielded | 530mOhm Max | 45 @ 250MHz | 1.05GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.091" L x 0.067" W (2.30mm x 1.70mm) | 0.055" (1.40mm) |
|

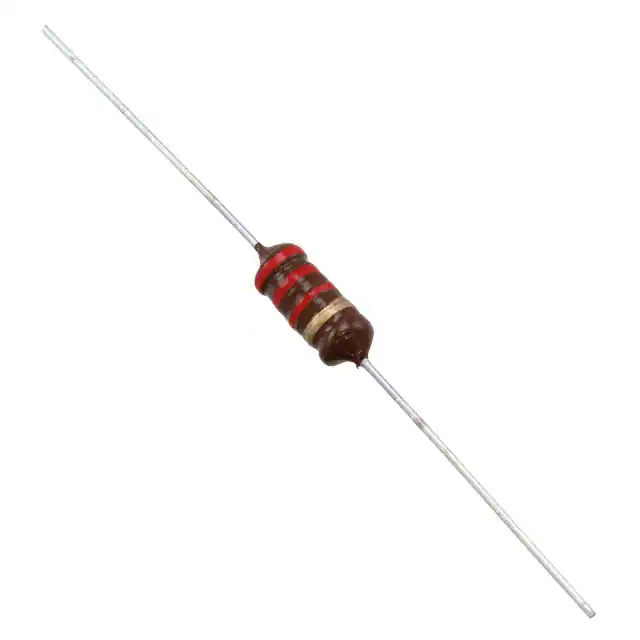

B82144A2225J000FIXED IND 2.2MH 120MA 9 OHM TH EPCOS - TDK Electronics |
4,364 |
|
数据手册 |
LBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 mH | ±5% | 120 mA | - | Unshielded | 9Ohm Max | 60 @ 252kHz | 800kHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.205" Dia x 0.472" L (5.20mm x 12.00mm) | - |
|
B82144F2123K000FIXED IND 12UH 2.4A 0.13OHM TH EPCOS - TDK Electronics |
3,877 |
|
数据手册 |
LBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 12 µH | ±10% | 2.4 A | 2.65A | Unshielded | 130mOhm Max | 40 @ 252kHz | 20MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.256" Dia x 0.362" L (6.50mm x 9.20mm) | - |
|

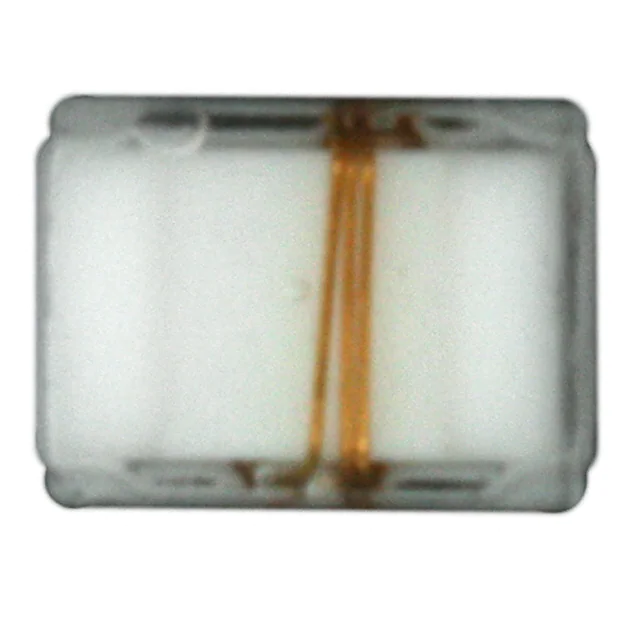

B82498F3150J000FIXED IND 15NH 650MA 130MOHM SMD EPCOS - TDK Electronics |
3,854 |
|
数据手册 |
SIMID | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 15 nH | ±5% | 650 mA | - | Unshielded | 130mOhm Max | 50 @ 500MHz | 3.3GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.091" L x 0.067" W (2.30mm x 1.70mm) | 0.055" (1.40mm) |
