固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B78108T1123K009FIXED IND 12UH 190MA 2.4 OHM TH EPCOS - TDK Electronics |
4,371 |
|
数据手册 |
MCC | Axial | Tape & Box (TB) | Obsolete | Drum Core, Wirewound | Ferrite | 12 µH | ±10% | 190 mA | - | Unshielded | 2.4Ohm Max | 55 @ 2.52MHz | 50MHz | - | -55°C ~ 125°C | 2.52 MHz | - | Through Hole | - | 0.130" Dia x 0.276" L (3.30mm x 7.00mm) | - |
|
|
B78108T1123K000FIXED IND 12UH 190MA 2.4 OHM TH EPCOS - TDK Electronics |
2,038 |
|
数据手册 |
MCC | Axial | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 12 µH | ±10% | 190 mA | - | Unshielded | 2.4Ohm Max | 55 @ 2.52MHz | 50MHz | - | -55°C ~ 125°C | 2.52 MHz | - | Through Hole | - | 0.130" Dia x 0.276" L (3.30mm x 7.00mm) | - |
|
B82442A1102K000FIXED IND 1UH 1.8A 24 MOHM SMD EPCOS - TDK Electronics |
3,274 |
|
数据手册 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1 µH | ±10% | 1.8 A | - | Unshielded | 24mOhm Max | 10 @ 7.96MHz | 95MHz | AEC-Q200 | -55°C ~ 125°C | 7.96 MHz | - | Surface Mount | 2220 (5650 Metric) | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.209" (5.30mm) |
|

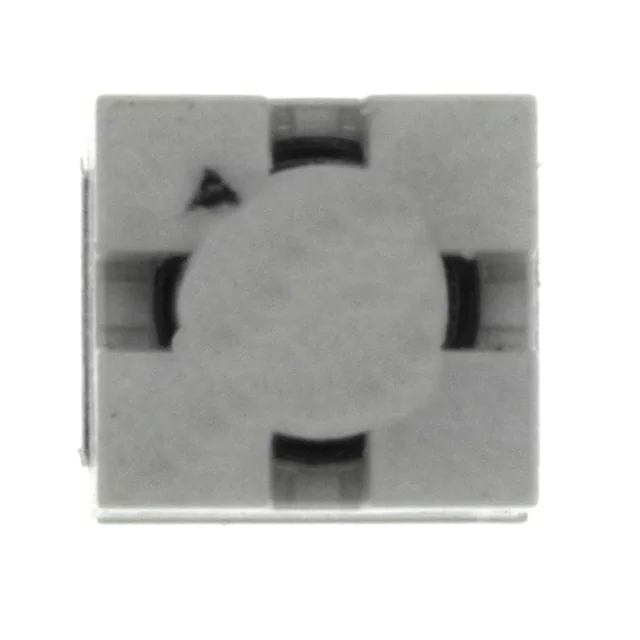

B82442A1103K000FIXED IND 10UH 690MA 168MOHM SMD EPCOS - TDK Electronics |
1,554 |
|
数据手册 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 690 mA | - | Unshielded | 168mOhm Max | 10 @ 2.52MHz | 19MHz | AEC-Q200 | -55°C ~ 125°C | 2.52 MHz | - | Surface Mount | 2220 (5650 Metric) | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.209" (5.30mm) |
|

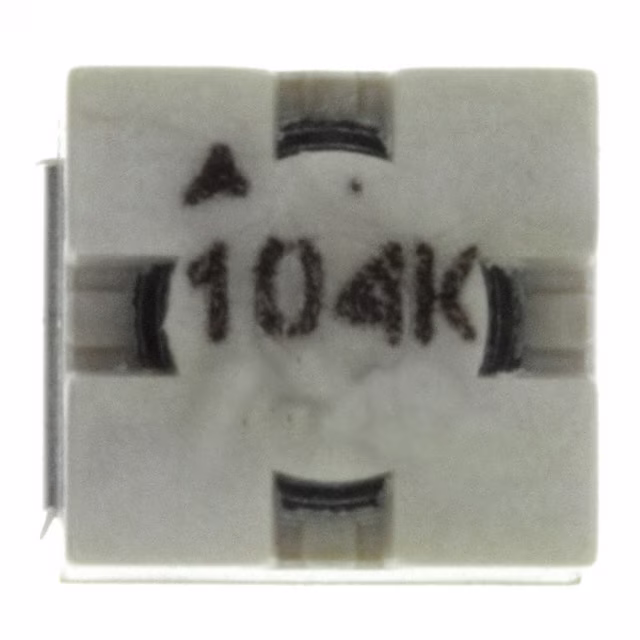

B82442A1104K000FIXED IND 100UH 250MA 1.28OHM SM EPCOS - TDK Electronics |
4,949 |
|
数据手册 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 250 mA | - | Unshielded | 1.28Ohm Max | 20 @ 796kHz | 6MHz | AEC-Q200 | -55°C ~ 125°C | 796 kHz | - | Surface Mount | 2220 (5650 Metric) | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.209" (5.30mm) |
.JPG)
|
B82442A1105K000FIXED IND 1MH 85MA 12 OHM SMD EPCOS - TDK Electronics |
3,082 |
|
数据手册 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 85 mA | - | Unshielded | 12Ohm Max | 30 @ 252kHz | 1.8MHz | AEC-Q200 | -55°C ~ 125°C | 252 kHz | - | Surface Mount | 2220 (5650 Metric) | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.209" (5.30mm) |
|
|
B82442A1106K000FIXED IND 10MH 25MA 120 OHM SMD EPCOS - TDK Electronics |
3,566 |
|
数据手册 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 mH | ±10% | 25 mA | - | Unshielded | 120Ohm Max | 30 @ 79.6kHz | 500kHz | AEC-Q200 | -55°C ~ 125°C | 79.6 kHz | - | Surface Mount | 2220 (5650 Metric) | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.209" (5.30mm) |
|

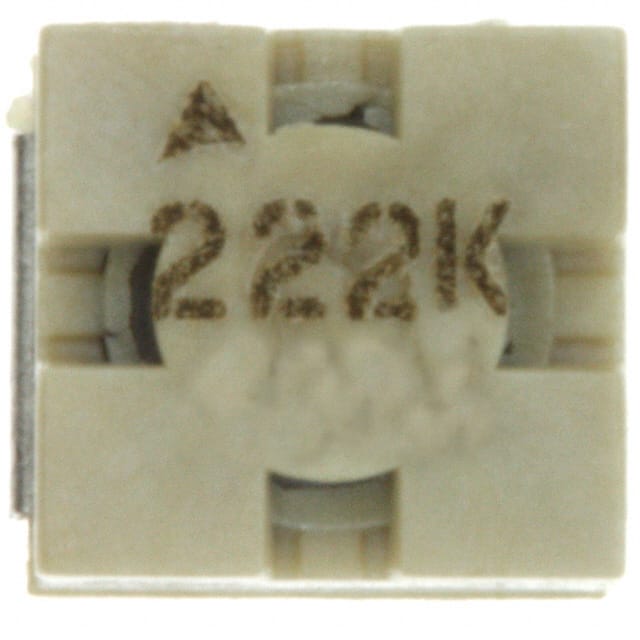

B82442A1222K000FIXED IND 2.2UH 1.3A 48 MOHM SMD EPCOS - TDK Electronics |
3,584 |
|
数据手册 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 µH | ±10% | 1.3 A | - | Unshielded | 48mOhm Max | 10 @ 7.96MHz | 42MHz | AEC-Q200 | -55°C ~ 125°C | 7.96 MHz | - | Surface Mount | 2220 (5650 Metric) | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.209" (5.30mm) |
|
|
B82442A1223K000FIXED IND 22UH 480MA 350MOHM SMD EPCOS - TDK Electronics |
2,223 |
|
数据手册 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±10% | 480 mA | - | Unshielded | 350mOhm Max | 10 @ 2.52MHz | 13MHz | AEC-Q200 | -55°C ~ 125°C | 2.52 MHz | - | Surface Mount | 2220 (5650 Metric) | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.209" (5.30mm) |
|
|
B82442A1224K000FIXED IND 220UH 170MA 2.72OHM SM EPCOS - TDK Electronics |
3,365 |
|
数据手册 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 170 mA | - | Unshielded | 2.72Ohm Max | 20 @ 796kHz | 3.9MHz | AEC-Q200 | -55°C ~ 125°C | 796 kHz | - | Surface Mount | 2220 (5650 Metric) | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.209" (5.30mm) |
