固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B82132A5202M000FIXED IND 6UH 2A 110 MOHM TH EPCOS - TDK Electronics |
4,086 |
|
数据手册 |
B82132 | Axial | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron | 6 µH | ±20% | 2 A | - | Unshielded | 110mOhm | - | 108MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | - | 0.217" Dia x 0.787" L (5.50mm x 20.00mm) | - |
|
|
B82132A5302M000FIXED IND 3UH 3A 35 MOHM TH EPCOS - TDK Electronics |
2,996 |
|
数据手册 |
B82132 | Axial | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron | 3 µH | ±20% | 3 A | - | Unshielded | 35mOhm | - | 151MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | - | 0.217" Dia x 0.787" L (5.50mm x 20.00mm) | - |
|
B82473M1103K000FIXED IND 10UH 2.3A 70 MOHM SMD EPCOS - TDK Electronics |
4,160 |
|
数据手册 |
B82473M1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 2.3 A | 2.5A | Unshielded | 70mOhm Max | - | - | AEC-Q200 | -50°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.327" L x 0.287" W (8.30mm x 7.30mm) | 0.217" (5.50mm) |
|
|
B82473M1104K000FIXED IND 100UH 720MA 430MOHM SM EPCOS - TDK Electronics |
1,072 |
|
数据手册 |
B82473M1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 720 mA | 800mA | Unshielded | 430mOhm Max | - | - | AEC-Q200 | -50°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.327" L x 0.287" W (8.30mm x 7.30mm) | 0.217" (5.50mm) |
|
|
B82473M1153K000FIXED IND 15UH 1.8A 90 MOHM SMD EPCOS - TDK Electronics |
3,877 |
|
数据手册 |
B82473M1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±10% | 1.8 A | 2A | Unshielded | 90mOhm Max | - | - | AEC-Q200 | -50°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.327" L x 0.287" W (8.30mm x 7.30mm) | 0.217" (5.50mm) |
|
B82473M1154K000FIXED IND 150UH 580MA 640MOHM SM EPCOS - TDK Electronics |
3,172 |
|
数据手册 |
B82473M1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±10% | 580 mA | 650mA | Unshielded | 640mOhm Max | - | - | AEC-Q200 | -50°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.327" L x 0.287" W (8.30mm x 7.30mm) | 0.217" (5.50mm) |
|
|
B82473M1333K000FIXED IND 33UH 1.2A 130 MOHM SMD EPCOS - TDK Electronics |
3,230 |
|
数据手册 |
B82473M1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±10% | 1.2 A | 1.3A | Unshielded | 130mOhm Max | - | - | AEC-Q200 | -50°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.327" L x 0.287" W (8.30mm x 7.30mm) | 0.217" (5.50mm) |
|
|
B82473M1334K000FIXED IND 330UH 400MA 1.26OHM SM EPCOS - TDK Electronics |
1,632 |
|
数据手册 |
B82473M1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±10% | 400 mA | 450mA | Unshielded | 1.26Ohm Max | - | - | AEC-Q200 | -50°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.327" L x 0.287" W (8.30mm x 7.30mm) | 0.217" (5.50mm) |
|
|
B82473M1474K000FIXED IND 470UH 340MA 1.96OHM SM EPCOS - TDK Electronics |
1,471 |
|
数据手册 |
B82473M1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±10% | 340 mA | 400mA | Unshielded | 1.96Ohm Max | - | - | AEC-Q200 | -50°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.327" L x 0.287" W (8.30mm x 7.30mm) | 0.217" (5.50mm) |
|

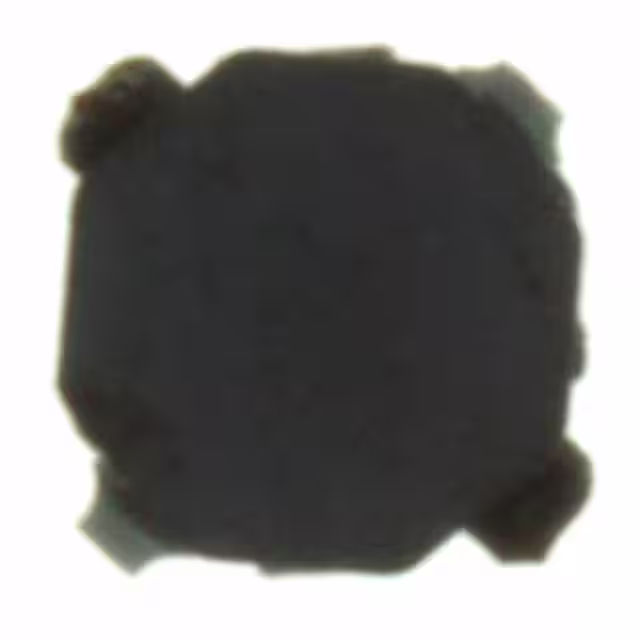

B82466G472MFIXED IND 4.7UH 600MA 350MOHM SM EPCOS - TDK Electronics |
3,153 |
|
数据手册 |
B82466G0 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 600 mA | 630mA | Shielded | 350mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.079" L x 0.079" W (2.00mm x 2.00mm) | 0.039" (1.00mm) |
