固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B82464D6222M000FIXED IND 2.2UH 6.17A 0.021OHM EPCOS - TDK Electronics |
600 |
|
数据手册 |
B82464D6 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 6.17 A | 13.85A | Shielded | 21mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.248" (6.30mm) |
|
|
B82464D6153M000FIXED IND 15UH 3.09A 0.084OHM SM EPCOS - TDK Electronics |
600 |
|
数据手册 |
B82464D6 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 3.09 A | 5.2A | Shielded | 84mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.248" (6.30mm) |
|
B82559A0302A013FIXED IND 3UH 13A 4 MOHM SMD EPCOS - TDK Electronics |
4,607 |
|
数据手册 |
ERU13 - Flat Wire Inductor | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3 µH | ±10% | 13 A | 13A | Shielded | 4mOhm | - | - | - | -40°C ~ 130°C | 10 kHz | - | Surface Mount | - | 0.512" L x 0.421" W (13.00mm x 10.70mm) | 0.195" (4.95mm) |
|
B82559A3152A020FIXED IND 1.5UH 0.9 MOHM SMD EPCOS - TDK Electronics |
2,562 |
|
数据手册 |
ERU20 - Flat Wire Inductor | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±10% | - | 50A | Shielded | 0.9mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.878" L x 0.866" W (22.30mm x 22.00mm) | 0.437" (11.10mm) |
|
B78148S1225J009FIXED IND 2.2MH 80MA 34.7 OHM TH EPCOS - TDK Electronics |
949 |
|
数据手册 |
BC | Radial | Cut Tape (CT) | Active | Wirewound | - | 2.2 mH | ±5% | 80 mA | - | Unshielded | 34.7Ohm Max | 40 @ 252kHz | 1.1MHz | - | - | 252 kHz | - | Through Hole | - | 0.157" Dia x 0.362" L (4.00mm x 9.20mm) | - |
|
B82562N4154M000FIXED IND 150UH 720MA 480MOHM SM EPCOS - TDK Electronics |
870 |
|
数据手册 |
CLF6045 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 720 mA | 650mA | Shielded | 480mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.236" W (6.30mm x 6.00mm) | 0.189" (4.80mm) |
|

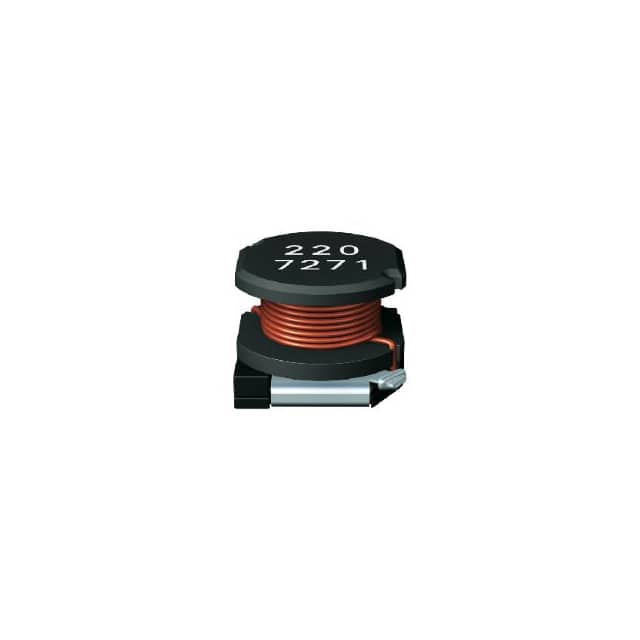

B82473A1224K000FIXED IND 220UH 490MA 960MOHM SM EPCOS - TDK Electronics |
588 |
|
数据手册 |
B82473A1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 490 mA | 550mA | Unshielded | 960mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.327" L x 0.287" W (8.30mm x 7.30mm) | 0.217" (5.50mm) |
|
B82473A1334K000FIXED IND 330UH 400MA 1.26OHM SM EPCOS - TDK Electronics |
864 |
|
数据手册 |
B82473A1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±10% | 400 mA | 450mA | Unshielded | 1.26Ohm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.327" L x 0.287" W (8.30mm x 7.30mm) | 0.217" (5.50mm) |
|
B82472G4153M000FIXED IND 15UH 1.4A 120 MOHM SMD EPCOS - TDK Electronics |
1,112 |
|
数据手册 |
B82472G4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 1.4 A | 1.1A | Shielded | 120mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.138" (3.50mm) |
|
B82477G2683M000FIXED IND 68UH 1.5A 120 MOHM SMD EPCOS - TDK Electronics |
600 |
|
数据手册 |
B82477G2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 1.5 A | - | Shielded | 120mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.484" L x 0.484" W (12.30mm x 12.30mm) | 0.236" (6.00mm) |
