固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

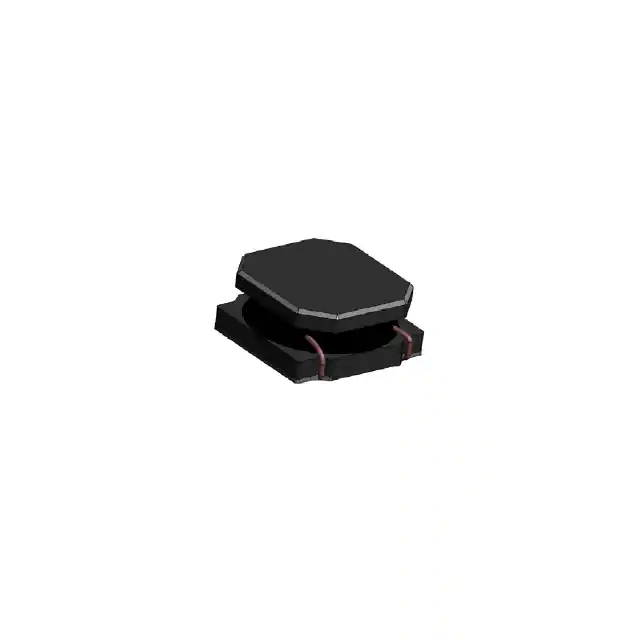

SDCL1V4020-4R7M-RIND 4.7 UH 4.0A SMT Eaton - Electronics Division |
6,478 |
|
数据手册 |
SDCL1V40 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±20% | 2.5 A | 4A | Shielded | 108mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.079" (2.00mm) |
|
SDCL1V4020-6R8M-RIND 6.8 UH 3.0A SMT Eaton - Electronics Division |
3,225 |
|
数据手册 |
SDCL1V40 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 6.8 µH | ±20% | 2.1 A | 3A | Shielded | 156mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.079" (2.00mm) |
|
|
SDCL1V4030-331M-RIND 330 UH 0.38A SMT Eaton - Electronics Division |
6,373 |
|
数据手册 |
SDCL1V40 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 330 µH | ±20% | 250 mA | 380mA | Shielded | 5.06Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.118" (3.00mm) |
|

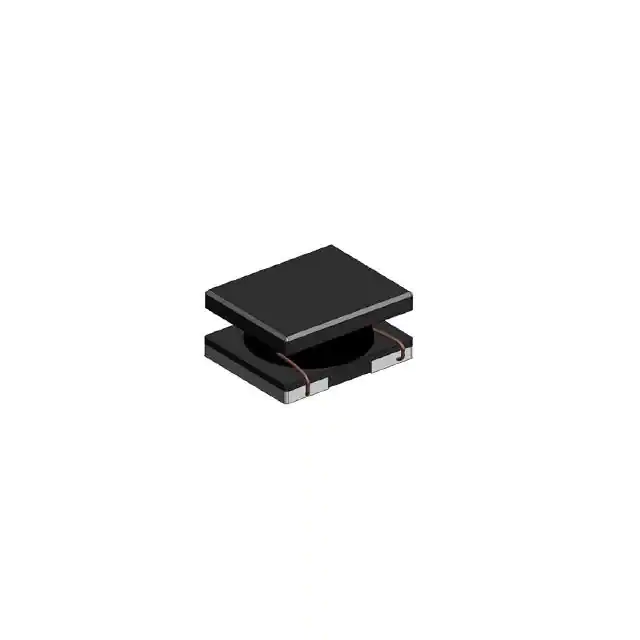

SDCH1V6028-102M-RIND 1000 UH0.25A SMT Eaton - Electronics Division |
3,163 |
|
数据手册 |
SDCH1V60 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1 mH | ±20% | 240 mA | 250mA | Shielded | 6.9Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.118" (3.00mm) |
|
SDCHA1V6045-3R3-RIND SMD POWER 3.3UH 5.0A Eaton - Electronics Division |
1,379 |
|
数据手册 |
SDCHA1V60 | Nonstandard | Tape & Reel (TR) | Active | - | Nickel Zinc Ferrite (NiZn) | 3.3 µH | ±20% | 5 A | 7.8A | Shielded | 21mOhm | - | 45MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
DR73-1R0-RFIXED IND 1UH 5.28A 10.2MOHM SMD Eaton - Electronics Division |
5,672 |
|
数据手册 |
DR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 5.28 A | 7.97A | Shielded | 10.2mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.140" (3.55mm) |
|
DR73-680-RFIXED IND 68UH 890MA 358MOHM SMD Eaton - Electronics Division |
2,874 |
|
数据手册 |
DR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 890 mA | 960mA | Shielded | 358mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.140" (3.55mm) |
|
DR74-331-RFIXED IND 330UH 450MA 1.41OHM SM Eaton - Electronics Division |
7,599 |
|
数据手册 |
DR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±20% | 450 mA | 540mA | Shielded | 1.41Ohm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.171" (4.35mm) |
|
|
DR74-221-RFIXED IND 220UH 560MA 907MOHM SM Eaton - Electronics Division |
6,964 |
|
数据手册 |
DR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 560 mA | 660mA | Shielded | 907mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.171" (4.35mm) |
|
|
DR74-2R2-RFIXED IND 2.2UH 4.76A 12.6 MOHM Eaton - Electronics Division |
65,420 |
|
数据手册 |
DR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 4.76 A | 7.06A | Shielded | 12.6mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.171" (4.35mm) |
