固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HCM1A0503-5R6-RFIXED IND 5.6UH 2.8A 70.6MOHM SM Eaton - Electronics Division |
1,339 |
|
数据手册 |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 5.6 µH | ±20% | 2.8 A | 4A | Shielded | 70.6mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.203" L x 0.201" W (5.15mm x 5.10mm) | 0.118" (3.00mm) |
|
|
HCM1A0503-4R7-RFIXED IND 4.7UH 3.1A 60MOHM SMD Eaton - Electronics Division |
190 |
|
数据手册 |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 4.7 µH | ±20% | 3.1 A | 4.2A | Shielded | 60mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.203" L x 0.201" W (5.15mm x 5.10mm) | 0.118" (3.00mm) |
|

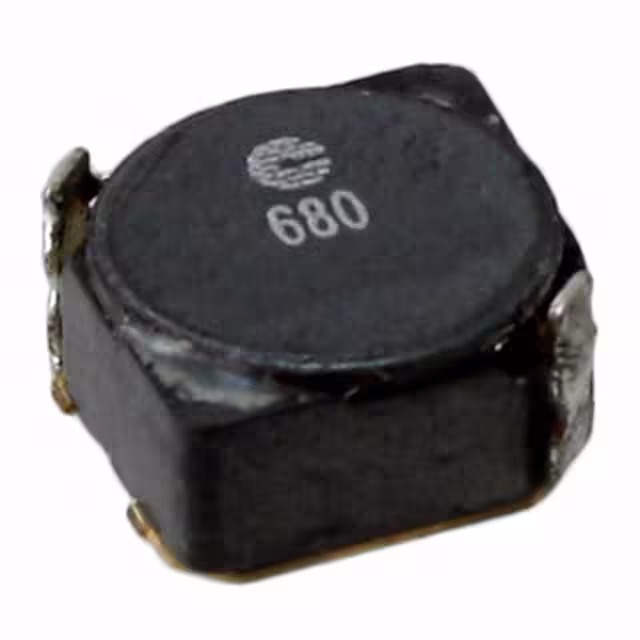

SD6030-680-RFIXED IND 65.6UH 920MA 355 MOHM Eaton - Electronics Division |
12,928 |
|
数据手册 |
SD6030 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 65.6 µH | ±30% | 920 mA | 520mA | Shielded | 355mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.118" (3.00mm) |
.jpg)
|
MPI2512V1-1R0-RFIXED IND 1UH 3.9A 44 MOHM SMD Eaton - Electronics Division |
3,679 |
|
数据手册 |
MPI25-V1 | Nonstandard, 2 Lead | Tape & Reel (TR) | Active | - | - | 1 µH | ±20% | 3.9 A | 4.5A | Shielded | 44mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|

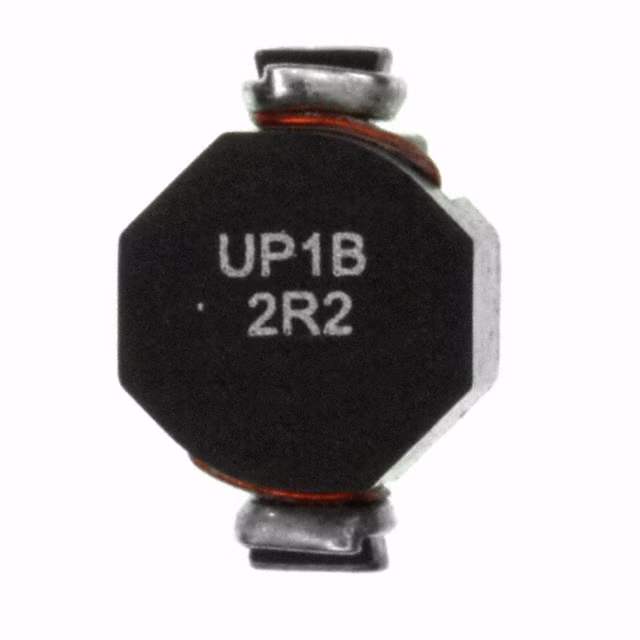

UP1B-2R2-RFIXED IND 2.2UH 3.1A 36.3MOHM SM Eaton - Electronics Division |
1,167 |
|
数据手册 |
UNI-PAC™ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 3.1 A | 3.5A | Unshielded | 36.3mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.350" L x 0.240" W (8.89mm x 6.10mm) | 0.197" (5.00mm) |
|
HCMA1104-100-RFIXED IND 10UH 7.5A 30 MOHM SMD Eaton - Electronics Division |
809 |
|
数据手册 |
HCMA1104 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 10 µH | ±20% | 7.5 A | 8.5A | Shielded | 30mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.437" L x 0.394" W (11.10mm x 10.00mm) | 0.157" (4.00mm) |
|
LD2-151-RFIXED IND 150UH 1.23A 640MOHM SM Eaton - Electronics Division |
450 |
|
数据手册 |
LD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 1.23 A | 950mA | Unshielded | 640mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.197" (5.00mm) |
|
MPIA4020V2-R33-RFIXED IND 330NH 10A 9 MOHM SMD Eaton - Electronics Division |
295 |
|
数据手册 |
MPIA40-V2 | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | Metal Composite | 330 nH | ±20% | 10 A | 12A | Shielded | 9mOhm Max | - | 113MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.195" L x 0.165" W (4.95mm x 4.20mm) | 0.079" (2.00mm) |
|
SD52-150-RFIXED IND 15UH 970MA 161.8 MOHM Eaton - Electronics Division |
2,200 |
|
数据手册 |
SD52 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 970 mA | 880mA | Shielded | 161.8mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.079" (2.00mm) |
|
|
HCM1A0805V2-4R7-RIND MP 4.7UH 8A 2 PADS SMT Eaton - Electronics Division |
1,348 |
|
数据手册 |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Alloy Powder | 4.7 µH | ±20% | 8 A | 8A | Shielded | 15.6mOhm Max | - | 15MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.319" L x 0.315" W (8.10mm x 8.00mm) | 0.213" (5.40mm) |
