固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EXLA1V0707-1R5-RIND MOLDED SHLD 1.5UH 16.8A Eaton - Electronics Division |
890 |
|
数据手册 |
EXLA1V07 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 1.5 µH | ±20% | 22 A | 25.8A | Shielded | 4.13mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.331" L x 0.315" W (8.40mm x 8.00mm) | 0.276" (7.00mm) |
|
HCMA1305-330-RFIXED IND 33UH 5.2A 85.5MOHM SMD Eaton - Electronics Division |
365 |
|
数据手册 |
HCMA1305 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 33 µH | ±20% | 5.2 A | 8A | Shielded | 85.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.524" L x 0.480" W (13.30mm x 12.20mm) | 0.197" (5.00mm) |
|
|
EXLA1V0705-3R3-RIND MOLDED SHLD 3.3UH 10.0A Eaton - Electronics Division |
790 |
|
数据手册 |
EXLA1V07 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 3.3 µH | ±20% | 13 A | 14A | Shielded | 11.44mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.331" L x 0.315" W (8.40mm x 8.00mm) | 0.197" (5.00mm) |
|
|
EXLA1V0705-5R6-RIND MOLDED SHLD 5.6UH 7.0A Eaton - Electronics Division |
777 |
|
数据手册 |
EXLA1V07 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 5.6 µH | ±20% | 10 A | 11A | Shielded | 17.2mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.331" L x 0.315" W (8.40mm x 8.00mm) | 0.197" (5.00mm) |
|
|
EXLA1V0705-2R2-RIND MOLDED SHLD 2.2UH 11.0A Eaton - Electronics Division |
680 |
|
数据手册 |
EXLA1V07 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 2.2 µH | ±20% | 14 A | 17A | Shielded | 6.4mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.331" L x 0.315" W (8.40mm x 8.00mm) | 0.197" (5.00mm) |
|

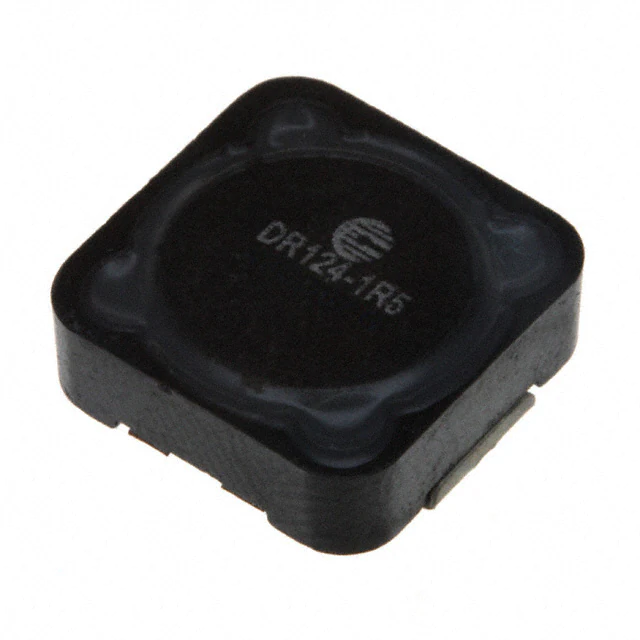

DR124-1R5-RFIXED IND 1.5UH 11.1A 5.7MOHM SM Eaton - Electronics Division |
1,017 |
|
数据手册 |
DR124 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 11.1 A | 14A | Shielded | 5.7mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.177" (4.50mm) |
|
DR124-680-RFIXED IND 68UH 1.8A 220 MOHM SMD Eaton - Electronics Division |
940 |
|
数据手册 |
DR124 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 1.8 A | 2.13A | Shielded | 220mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.177" (4.50mm) |
|
HCM1A0703V2-R47-RFIXED IND 470NH 13A 4.14MOHM SMD Eaton - Electronics Division |
619 |
|
数据手册 |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 470 nH | ±20% | 13 A | 17A | Shielded | 4.14mOhm Max | - | 70MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|
|
DR124-6R8-RFIXED IND 6.8UH 5.6A 21.7MOHM SM Eaton - Electronics Division |
393 |
|
数据手册 |
DR124 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 5.6 A | 6.47A | Shielded | 21.7mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.177" (4.50mm) |
|
EXL1V0606-2R2-RFIXED IND 2.2UH 14A 7.8MOHM SMD Eaton - Electronics Division |
369 |
|
数据手册 |
EXL1V0606 | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Powder | 2.2 µH | ±20% | 14 A | 12A | Shielded | 7.8mOhm Max | - | 26MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | 0.236" (6.00mm) |
