固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SDCL1V3015-1R0N-RIND 1.0 UH 2.4A SMT Eaton - Electronics Division |
7,257 |
|
数据手册 |
SDCL1V30 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1 µH | ±30% | 2.3 A | 2.4A | Shielded | 38mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|

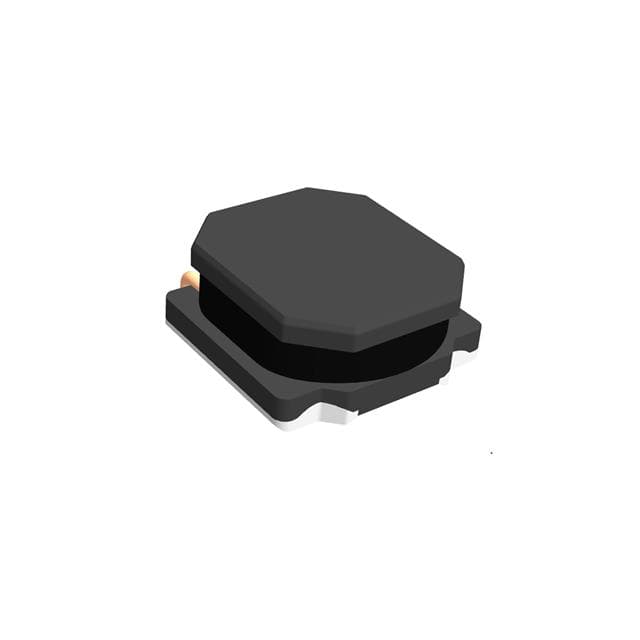

SDCLA1V4018-3R3-RIND SMD POWER 3.3UH 2.0A Eaton - Electronics Division |
4,425 |
|
数据手册 |
SDCLA1V40 | Nonstandard | Tape & Reel (TR) | Active | - | Nickel Zinc Ferrite (NiZn) | 3.3 µH | ±20% | 2 A | 2.3A | Shielded | 55mOhm | - | 46MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
|
SDCLA1V4018-1R0-RIND SMD POWER 1.0UH 3.2A Eaton - Electronics Division |
4,408 |
|
数据手册 |
SDCLA1V40 | Nonstandard | Tape & Reel (TR) | Active | - | Nickel Zinc Ferrite (NiZn) | 1 µH | ±30% | 3.2 A | 4A | Shielded | 27mOhm | - | 90MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
WCLA3225V1-1R0-RCHIP IND 1.0UH 1.2A SMT 2 PAD Eaton - Electronics Division |
2,897 |
|
数据手册 |
WCLA3225V1 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 1 µH | ±10% | 1.2 A | - | Unshielded | 120mOhm Max | 10 @ 7.96MHz | 290MHz | AEC-Q200 | -55°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1210 | 0.142" L x 0.110" W (3.60mm x 2.80mm) | 0.094" (2.40mm) |
|
|
WCLA3225V1-2R2-RCHIP IND 2.2UH 0.88A SMT 2 PAD Eaton - Electronics Division |
2,875 |
|
数据手册 |
WCLA3225V1 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 2.2 µH | ±10% | 880 mA | - | Unshielded | 170mOhm Max | 10 @ 7.96MHz | 190MHz | AEC-Q200 | -55°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1210 | 0.142" L x 0.110" W (3.60mm x 2.80mm) | 0.094" (2.40mm) |
|
|
WCLA3225V1-470-RCHIP IND 47.0UH 0.26A SMT 2 PAD Eaton - Electronics Division |
2,834 |
|
数据手册 |
WCLA3225V1 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 47 µH | ±10% | 260 mA | - | Unshielded | 1.9Ohm Max | 10 @ 2.52MHz | 10MHz | AEC-Q200 | -55°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1210 | 0.142" L x 0.110" W (3.60mm x 2.80mm) | 0.094" (2.40mm) |
|
|
WCLA3225V1-150-RCHIP IND 15.0UH 0.44A SMT 2 PAD Eaton - Electronics Division |
2,674 |
|
数据手册 |
WCLA3225V1 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 15 µH | ±10% | 440 mA | - | Unshielded | 660mOhm Max | 10 @ 2.52MHz | 17MHz | AEC-Q200 | -55°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1210 | 0.142" L x 0.110" W (3.60mm x 2.80mm) | 0.094" (2.40mm) |
|
|
WCLA3225V1-4R7-RCHIP IND 4.7UH 0.71A SMT 2 PAD Eaton - Electronics Division |
2,353 |
|
数据手册 |
WCLA3225V1 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±10% | 710 mA | - | Unshielded | 260mOhm Max | 10 @ 7.96MHz | 54MHz | AEC-Q200 | -55°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1210 | 0.142" L x 0.110" W (3.60mm x 2.80mm) | 0.094" (2.40mm) |
|
|
SDCL1V4018-2R2M-RIND 2.2 UH 3.00A SMT Eaton - Electronics Division |
2,660 |
|
数据手册 |
SDCL1V40 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 2.2 µH | ±20% | 2.5 A | 3A | Shielded | 54mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.073" (1.85mm) |
|
|
SDCL1V4030-2R2M-RIND 2.2 UH 5.0A SMT Eaton - Electronics Division |
1,927 |
|
数据手册 |
SDCL1V40 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 2.2 µH | ±20% | 2.8 A | 5A | Shielded | 39mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.118" (3.00mm) |
