固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

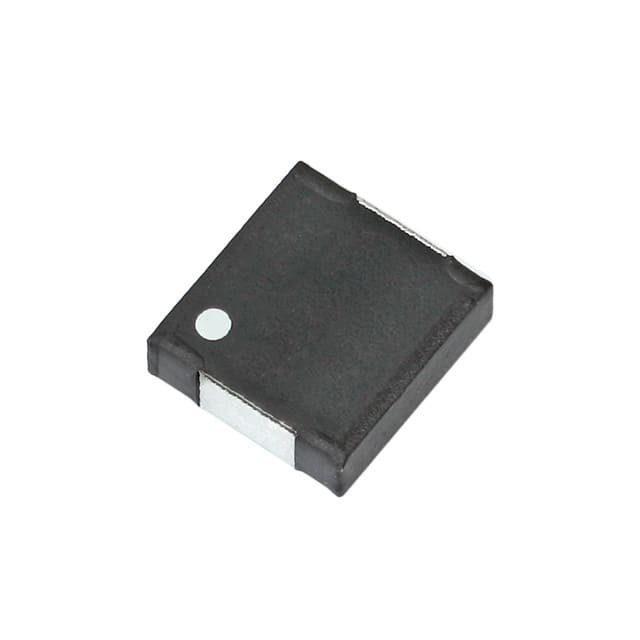

MPIA4040R1-R22-RFIXED IND 230NH 5.5A 18 MOHM SMD Eaton - Electronics Division |
4,477 |
|
数据手册 |
MPIA4040 | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | Metal Composite | 230 nH | ±20% | 5.5 A | 21A | Shielded | 18mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.047" (1.20mm) |
|
|
MPIA4040R1-R33-RFIXED IND 330NH 4.4A 28 MOHM SMD Eaton - Electronics Division |
4,136 |
|
数据手册 |
MPIA4040 | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | Metal Composite | 330 nH | ±20% | 4.4 A | 17A | Shielded | 28mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.047" (1.20mm) |
|
|
MPIA4040R1-R47-RFIXED IND 470NH 5.2A 20 MOHM SMD Eaton - Electronics Division |
2,246 |
|
数据手册 |
MPIA4040 | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | Metal Composite | 470 nH | ±20% | 5.2 A | 11.5A | Shielded | 20mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.047" (1.20mm) |
|
|
MPIA4040R1-R68-RFIXED IND 680NH 3.3A 51 MOHM SMD Eaton - Electronics Division |
1,826 |
|
数据手册 |
MPIA4040 | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | Metal Composite | 680 nH | ±20% | 3.3 A | 9A | Shielded | 51mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.047" (1.20mm) |
|
|
MPIA4040R2-100-RFIXED IND 10UH 1.5A 240 MOHM SMD Eaton - Electronics Division |
1,390 |
|
数据手册 |
MPIA4040 | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | Metal Composite | 10 µH | ±20% | 1.5 A | 3.1A | Shielded | 240mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.059" (1.50mm) |
|
|
MPIA4040R2-6R8-RFIXED IND 6.8UH 1.8A 158MOHM SMD Eaton - Electronics Division |
4,474 |
|
数据手册 |
MPIA4040 | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | Metal Composite | 6.8 µH | ±20% | 1.8 A | 3.4A | Shielded | 158mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.059" (1.50mm) |
|
|
MPIA4040R3-100-RFIXED IND 10UH 1.5A 213 MOHM SMD Eaton - Electronics Division |
1,198 |
|
数据手册 |
MPIA4040 | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | Metal Composite | 10 µH | ±20% | 1.5 A | 3.8A | Shielded | 213mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.071" (1.80mm) |
|
|
MPIA4040R3-150-RFIXED IND 15UH 1.3A 285 MOHM SMD Eaton - Electronics Division |
3,571 |
|
数据手册 |
MPIA4040 | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | Metal Composite | 15 µH | ±20% | 1.3 A | 3A | Shielded | 285mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.071" (1.80mm) |
|
|
MPIA4040R3-1R2-RFIXED IND 1.2UH 4A 32 MOHM SMD Eaton - Electronics Division |
1,260 |
|
数据手册 |
MPIA4040 | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | Metal Composite | 1.2 µH | ±20% | 4 A | 9.4A | Shielded | 32mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.071" (1.80mm) |
|
|
MPIA4040R3-220-RFIXED IND 22UH 1.1A 408 MOHM SMD Eaton - Electronics Division |
2,588 |
|
数据手册 |
MPIA4040 | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | Metal Composite | 22 µH | ±20% | 1.1 A | 2.2A | Shielded | 408mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.071" (1.80mm) |
