上传BOM单
固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

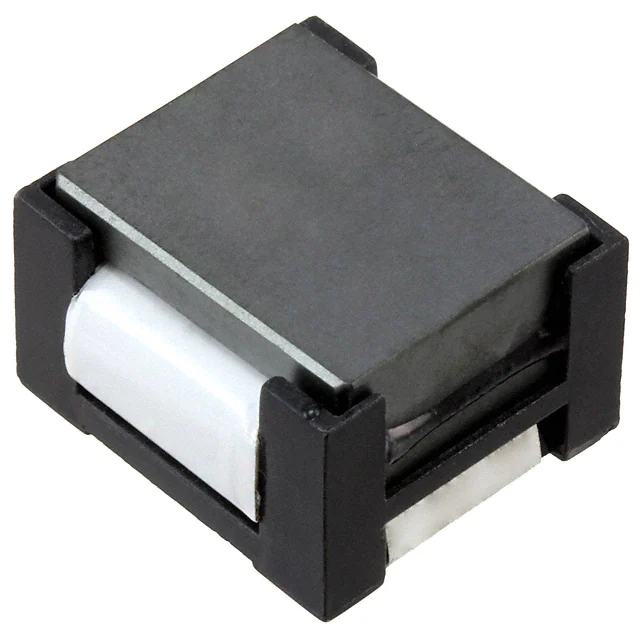

HC2-1R0-RFIXED IND 1UH 33A 1.3 MOHM SMD Eaton - Electronics Division |
3,020 |
|
数据手册 |
HC2 | Nonstandard | Bulk | Obsolete | Wirewound | - | 1 µH | ±20% | 33 A | 42.5A | Unshielded | 1.3mOhm Max | - | - | - | -40°C ~ 85°C | 300 kHz | - | Surface Mount | - | 0.756" L x 0.748" W (19.20mm x 19.00mm) | 0.500" (12.70mm) |
|
|
HC2-4R7-RFIXED IND 4.7UH 17A 4.6 MOHM SMD Eaton - Electronics Division |
4,153 |
|
数据手册 |
HC2 | Nonstandard | Bulk | Obsolete | Wirewound | - | 4.7 µH | ±20% | 17 A | 21.25A | Unshielded | 4.6mOhm Max | - | - | - | -40°C ~ 85°C | 300 kHz | - | Surface Mount | - | 0.756" L x 0.748" W (19.20mm x 19.00mm) | 0.500" (12.70mm) |
|
|
HC2-6R0-RFIXED IND 6UH 17A 4.6 MOHM SMD Eaton - Electronics Division |
2,704 |
|
数据手册 |
HC2 | Nonstandard | Bulk | Obsolete | Wirewound | - | 6 µH | ±20% | 17 A | 16.5A | Unshielded | 4.6mOhm Max | - | - | - | -40°C ~ 85°C | 300 kHz | - | Surface Mount | - | 0.756" L x 0.748" W (19.20mm x 19.00mm) | 0.500" (12.70mm) |
|
|
HC2-R68-RFIXED IND 680NH 52.9A 0.6MOHM SM Eaton - Electronics Division |
4,065 |
|
数据手册 |
HC2 | Nonstandard | Bulk | Obsolete | Wirewound | - | 680 nH | ±20% | 52.9 A | 50A | Unshielded | 0.6mOhm Max | - | - | - | -40°C ~ 85°C | 300 kHz | - | Surface Mount | - | 0.756" L x 0.748" W (19.20mm x 19.00mm) | 0.500" (12.70mm) |
|
|
HC2-1R0TR-RFIXED IND 1UH 33A 1.3 MOHM SMD Eaton - Electronics Division |
3,212 |
|
数据手册 |
HC2 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 1 µH | ±20% | 33 A | 42.5A | Unshielded | 1.3mOhm Max | - | - | - | -40°C ~ 85°C | 300 kHz | - | Surface Mount | - | 0.756" L x 0.748" W (19.20mm x 19.00mm) | 0.500" (12.70mm) |
|
|
HC2-2R2TR-RFIXED IND 2.2UH 24.3A 2.3MOHM SM Eaton - Electronics Division |
2,866 |
|
数据手册 |
HC2 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 2.2 µH | ±20% | 24.3 A | 31.9A | Unshielded | 2.3mOhm Max | - | - | - | -40°C ~ 85°C | 300 kHz | - | Surface Mount | - | 0.756" L x 0.748" W (19.20mm x 19.00mm) | 0.500" (12.70mm) |
|
|
HC2-R68TR-RFIXED IND 680NH 52.9A 0.6MOHM SM Eaton - Electronics Division |
3,696 |
|
数据手册 |
HC2 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 680 nH | ±20% | 52.9 A | 50A | Unshielded | 0.6mOhm Max | - | - | - | -40°C ~ 85°C | 300 kHz | - | Surface Mount | - | 0.756" L x 0.748" W (19.20mm x 19.00mm) | 0.500" (12.70mm) |
|

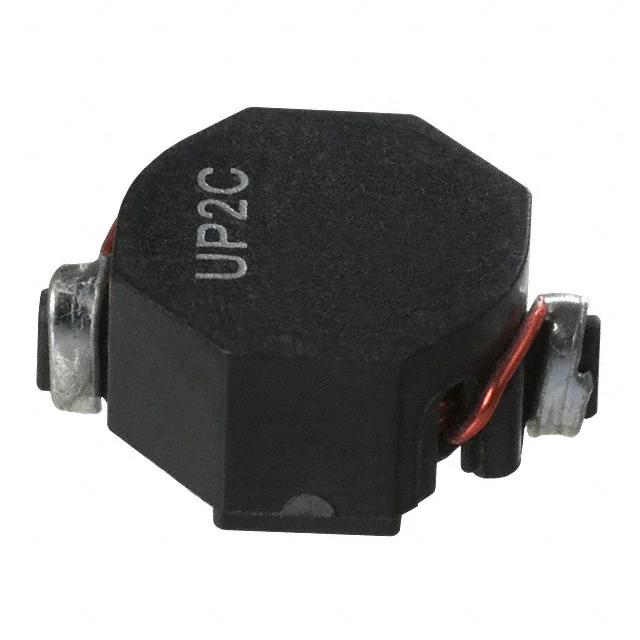

UP2C-100-RFIXED IND 10UH 3.61A 28.3MOHM SM Eaton - Electronics Division |
4,882 |
|
数据手册 |
UNI-PAC™ 2C | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 3.61 A | 3.94A | Unshielded | 28.3mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.508" L x 0.370" W (12.90mm x 9.40mm) | 0.205" (5.20mm) |
|
|
UP2C-150-RFIXED IND 15UH 3.17A 36.9MOHM SM Eaton - Electronics Division |
4,320 |
|
数据手册 |
UNI-PAC™ 2C | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 3.17 A | 3.17A | Unshielded | 36.9mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.508" L x 0.370" W (12.90mm x 9.40mm) | 0.205" (5.20mm) |
|
|
UP2C-1R0-RFIXED IND 1UH 9.8A 3.9 MOHM SMD Eaton - Electronics Division |
1,955 |
|
数据手册 |
UNI-PAC™ 2C | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 9.8 A | 11.8A | Unshielded | 3.9mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.508" L x 0.370" W (12.90mm x 9.40mm) | 0.205" (5.20mm) |
