固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HCM1A1707V2-6R8-RFIXED IND 6.8UH 14A 7.16MOHM SMD Eaton - Electronics Division |
3,406 |
|
数据手册 |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 6.8 µH | ±20% | 14 A | 20A | Shielded | 7.16mOhm Max | - | 9MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.276" (7.00mm) |
|
HCF1007-R30-RFIXED IND 300NH 30A 0.9 MOHM SMD Eaton - Electronics Division |
4,644 |
|
数据手册 |
HCF1007 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 300 nH | ±20% | 30 A | 48A | Unshielded | 0.9mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.307" W (10.10mm x 7.80mm) | 0.262" (6.65mm) |
|

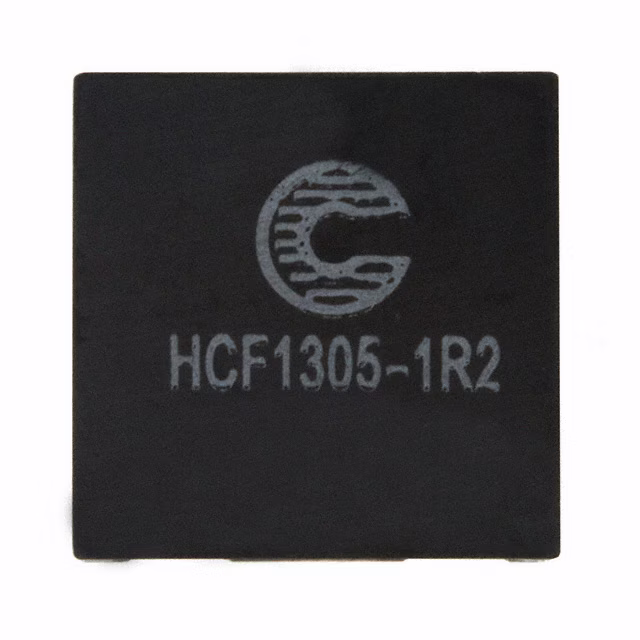

HCF1305-1R2-RFIXED IND 1.2UH 22A 1.9 MOHM SMD Eaton - Electronics Division |
3,930 |
|
数据手册 |
HCF1305 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.2 µH | ±20% | 22 A | 20A | Unshielded | 1.9mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.197" (5.00mm) |
|
CPL2-3-50TR-RFIXED IND 50NH 80A 0.28 MOHM SMD Eaton - Electronics Division |
3,246 |
|
数据手册 |
CPL | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 50 nH | ±20% | 80 A | - | Unshielded | 0.28mOhm | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 1.063" L x 0.335" W (27.00mm x 8.50mm) | 0.189" (4.80mm) |
|
|
CL1110R1-4-R050-RFIXED IND 250NH 0.3OHM SMD Eaton - Electronics Division |
2,546 |
|
数据手册 |
CL | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 250 nH | ±20% | - | 20A | - | 300mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | 4 Phase | Surface Mount | - | 0.748" L x 0.449" W (19.00mm x 11.40mm) | 0.413" (10.50mm) |
|
HCM1305-1R8-RFIXED IND 1.8UH 21A 4.6 MOHM SMD Eaton - Electronics Division |
3,454 |
|
数据手册 |
HCM1305 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 1.8 µH | ±20% | 21 A | 40A | Shielded | 4.6mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.524" L x 0.480" W (13.30mm x 12.20mm) | 0.197" (5.00mm) |
|
|
HCM1305-6R8-RFIXED IND 6.8UH 11A 15 MOHM SMD Eaton - Electronics Division |
4,633 |
|
数据手册 |
HCM1305 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 6.8 µH | ±20% | 11 A | 21A | Shielded | 15mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.524" L x 0.480" W (13.30mm x 12.20mm) | 0.197" (5.00mm) |
|
|
HCM1305-R33-RFIXED IND 330NH 42A 0.92MOHM SMD Eaton - Electronics Division |
3,804 |
|
数据手册 |
HCM1305 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 330 nH | ±20% | 42 A | 80A | Shielded | 0.92mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.524" L x 0.480" W (13.30mm x 12.20mm) | 0.197" (5.00mm) |
|
|
CPL-4-50TR-RFIXED IND 50NH 40A 0.6 MOHM SMD Eaton - Electronics Division |
4,572 |
|
数据手册 |
CPL | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 50 nH | ±20% | 40 A | - | Unshielded | 0.6mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 1.417" L x 0.394" W (36.00mm x 10.00mm) | 0.189" (4.80mm) |
|
|
CL1110-4-100TR-RFIXED IND 470NH 0.69OHM SMD Eaton - Electronics Division |
3,054 |
|
数据手册 |
CL | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 470 nH | ±20% | - | 15A | - | 690mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | 4 Phase | Surface Mount | - | 0.748" L x 0.449" W (19.00mm x 11.40mm) | 0.413" (10.50mm) |
