固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

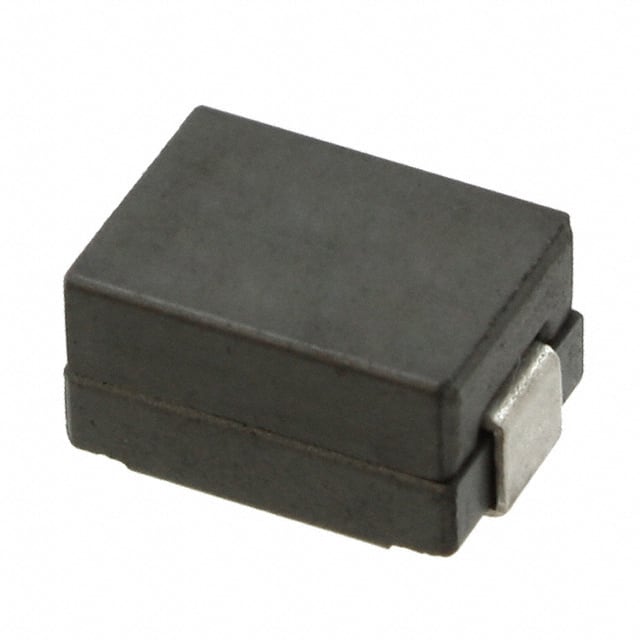

FP4-100-RFIXED IND 100NH 40A 0.65MOHM SMD Eaton - Electronics Division |
2,966 |
|
数据手册 |
FLAT-PAC 4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 nH | ±15% | 40 A | 64A | Unshielded | 0.65mOhm Max | - | - | - | -40°C ~ 155°C | 1 MHz | - | Surface Mount | - | 0.402" L x 0.268" W (10.20mm x 6.80mm) | 0.197" (5.00mm) |
|
|
FP4-090SK-RFIXED IND 90NH 33A SMD Eaton - Electronics Division |
3,216 |
|
数据手册 |
FLAT-PAC 4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 90 nH | ±15% | 33 A | 72A | Unshielded | - | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.268" W (10.20mm x 6.80mm) | 0.197" (5.00mm) |
|

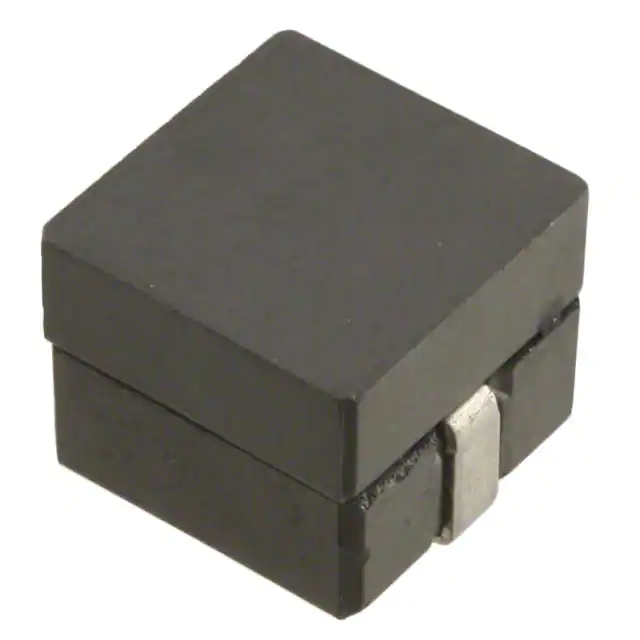

FP1109-R27-RFIXED IND 270NH 35A 0.42MOHM SMD Eaton - Electronics Division |
2,182 |
|
数据手册 |
FLAT-PAC, FP1109 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 270 nH | ±10% | 35 A | 51A | Unshielded | 0.42mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.441" L x 0.441" W (11.20mm x 11.20mm) | 0.354" (9.00mm) |
|
FP1109-R23-RFIXED IND 247NH 35A 0.42MOHM SMD Eaton - Electronics Division |
4,262 |
|
数据手册 |
FLAT-PAC, FP1109 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 247 nH | ±10% | 35 A | 55A | Unshielded | 0.42mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.441" L x 0.441" W (11.20mm x 11.20mm) | 0.354" (9.00mm) |
|
FP1008R4-R180-RFIXED IND 180NH SMD Eaton - Electronics Division |
1,764 |
|
数据手册 |
FP1008 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 180 nH | - | - | - | Unshielded | - | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.315" W (10.80mm x 8.00mm) | 0.315" (8.00mm) |
|
SD25-102-RFIXED IND 1MH 216MA 5.7 OHM SMD Eaton - Electronics Division |
2,328 |
|
数据手册 |
SD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±20% | 216 mA | 126mA | Shielded | 5.7Ohm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.098" (2.50mm) |
|
|
SD25-330-RFIXED IND 33UH 1.11A 214.9 MOHM Eaton - Electronics Division |
3,978 |
|
数据手册 |
SD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 1.11 A | 711mA | Shielded | 214.9mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.098" (2.50mm) |
|
|
SD25-331-RFIXED IND 330UH 359MA 2.07OHM SM Eaton - Electronics Division |
3,906 |
|
数据手册 |
SD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±20% | 359 mA | 219mA | Shielded | 2.07Ohm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.098" (2.50mm) |
|
|
SD25-471-RFIXED IND 470UH 293MA 3.1OHM SMD Eaton - Electronics Division |
2,597 |
|
数据手册 |
SD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 293 mA | 184mA | Shielded | 3.1Ohm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.098" (2.50mm) |
|
|
SD25-680-RFIXED IND 68UH 741MA 485MOHM SMD Eaton - Electronics Division |
4,269 |
|
数据手册 |
SD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 741 mA | 482mA | Shielded | 485mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.098" (2.50mm) |
