固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FP1006R2-R12-RFIXED IND 120NH 45A 0.36MOHM SMD Eaton - Electronics Division |
4,010 |
|
数据手册 |
FLAT-PAC, FP1006 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 120 nH | ±10% | 45 A | 71A | Unshielded | 0.36mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.315" W (10.00mm x 8.00mm) | 0.236" (6.00mm) |
|

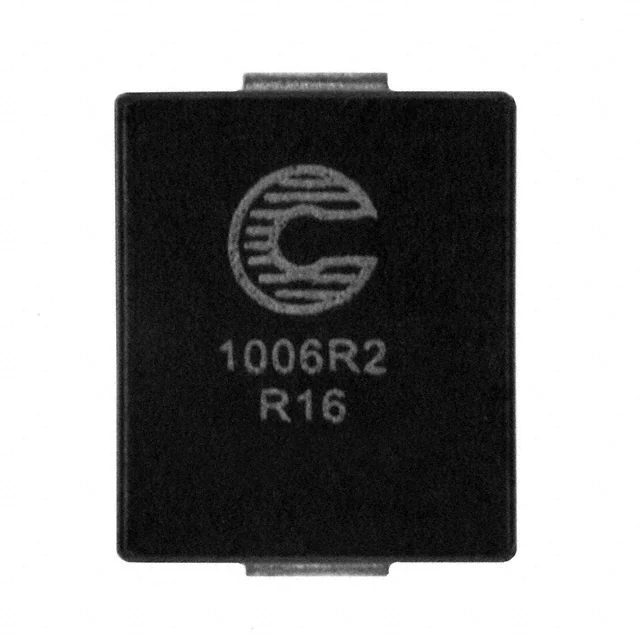

FP1006R2-R16-RFIXED IND 160NH 45A 0.36MOHM SMD Eaton - Electronics Division |
2,129 |
|
数据手册 |
FLAT-PAC, FP1006 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 160 nH | ±10% | 45 A | 55A | Unshielded | 0.36mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.315" W (10.00mm x 8.00mm) | 0.236" (6.00mm) |
|
|
FP1006R2-R22-RFIXED IND 220NH 45A 0.36MOHM SMD Eaton - Electronics Division |
1,617 |
|
数据手册 |
FLAT-PAC, FP1006 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 nH | ±10% | 45 A | 38A | Unshielded | 0.36mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.315" W (10.00mm x 8.00mm) | 0.236" (6.00mm) |
|
|
FP2-D047-RFIXED IND 47NH 37A 0.26 MOHM SMD Eaton - Electronics Division |
1,006 |
|
数据手册 |
FLAT-PAC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 nH | ±15% | 37 A | 42A | Unshielded | 0.26mOhm | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.283" L x 0.264" W (7.20mm x 6.70mm) | 0.118" (3.00mm) |
|
|
FP2-D082-RFIXED IND 82NH 37A 0.26 MOHM SMD Eaton - Electronics Division |
1,966 |
|
数据手册 |
FLAT-PAC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 82 nH | ±15% | 37 A | 26A | Unshielded | 0.26mOhm | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.283" L x 0.264" W (7.20mm x 6.70mm) | 0.118" (3.00mm) |
|
FP0807R1-R16-RFIXED IND 160NH 49A 0.5 MOHM SMD Eaton - Electronics Division |
1,813 |
|
数据手册 |
FLAT-PAC, FP0807 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 160 nH | ±10% | 49 A | 48A | Unshielded | 0.5mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.291" W (7.60mm x 7.40mm) | 0.276" (7.00mm) |
|
|
FP0807R1-R18-RFIXED IND 180NH 49A 0.5 MOHM SMD Eaton - Electronics Division |
2,165 |
|
数据手册 |
FLAT-PAC, FP0807 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 180 nH | ±10% | 49 A | 42A | Unshielded | 0.5mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.291" W (7.60mm x 7.40mm) | 0.276" (7.00mm) |
|
HCM1A1305V2-7R8-RFIXED IND 7.8UH 7.6A 17.3MOHM SM Eaton - Electronics Division |
2,898 |
|
数据手册 |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 7.8 µH | ±20% | 7.6 A | 15A | Shielded | 17.3mOhm Max | - | 10MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.197" (5.00mm) |
|
|
HCM1A1305V2-R22-RFIXED IND 220NH 48A 0.61MOHM SMD Eaton - Electronics Division |
3,477 |
|
数据手册 |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 220 nH | ±20% | 48 A | 60A | Shielded | 0.61mOhm Max | - | 107MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.197" (5.00mm) |
|
|
HCM1A1305V2-8R2-RFIXED IND 8.2UH 7.5A 18.5MOHM SM Eaton - Electronics Division |
3,693 |
|
数据手册 |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 8.2 µH | ±20% | 7.5 A | 13A | Shielded | 18.5mOhm Max | - | 9MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.197" (5.00mm) |
