固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UP2SC-271-RFIXED IND 270UH 400MA 1.1OHM SMD Eaton - Electronics Division |
2,473 |
|
数据手册 |
UNI-PAC™ 2SC | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 270 µH | ±10% | 400 mA | 700mA | Shielded | 1.1Ohm Max | 100 @ 100kHz | 4.5MHz | - | -25°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.205" (5.20mm) |
|
|
UP2SC-390-RFIXED IND 39UH 1.05A 180MOHM SMD Eaton - Electronics Division |
1,106 |
|
数据手册 |
UNI-PAC™ 2SC | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 39 µH | ±15% | 1.05 A | 1.73A | Shielded | 180mOhm Max | 70 @ 100kHz | 12MHz | - | -25°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.205" (5.20mm) |
|
|
UP2SC-3R0-RFIXED IND 3UH 2.9A 30 MOHM SMD Eaton - Electronics Division |
1,111 |
|
数据手册 |
UNI-PAC™ 2SC | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 3 µH | ±20% | 2.9 A | 6.6A | Shielded | 30mOhm Max | 70 @ 100kHz | 65MHz | - | -25°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.205" (5.20mm) |
|
|
UP2SC-470-RFIXED IND 47UH 1A 190 MOHM SMD Eaton - Electronics Division |
1,237 |
|
数据手册 |
UNI-PAC™ 2SC | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 47 µH | ±15% | 1 A | 1.61A | Shielded | 190mOhm Max | 70 @ 100kHz | 11MHz | - | -25°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.205" (5.20mm) |
|
|
UP2SC-560-RFIXED IND 56UH 900MA 210MOHM SMD Eaton - Electronics Division |
1,854 |
|
数据手册 |
UNI-PAC™ 2SC | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 56 µH | ±15% | 900 mA | 1.48A | Shielded | 210mOhm Max | 70 @ 100kHz | 10MHz | - | -25°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.205" (5.20mm) |
|
|
UP2SC-680-RFIXED IND 68UH 820MA 340MOHM SMD Eaton - Electronics Division |
4,559 |
|
数据手册 |
UNI-PAC™ 2SC | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 68 µH | ±15% | 820 mA | 1.39A | Shielded | 340mOhm Max | 85 @ 100kHz | 9MHz | - | -25°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.205" (5.20mm) |
|
|
UP2SC-6R8-RFIXED IND 6.8UH 2.2A 55 MOHM SMD Eaton - Electronics Division |
4,232 |
|
数据手册 |
UNI-PAC™ 2SC | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 6.8 µH | ±20% | 2.2 A | 3.9A | Shielded | 55mOhm Max | 70 @ 100kHz | 30MHz | - | -25°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.205" (5.20mm) |
|

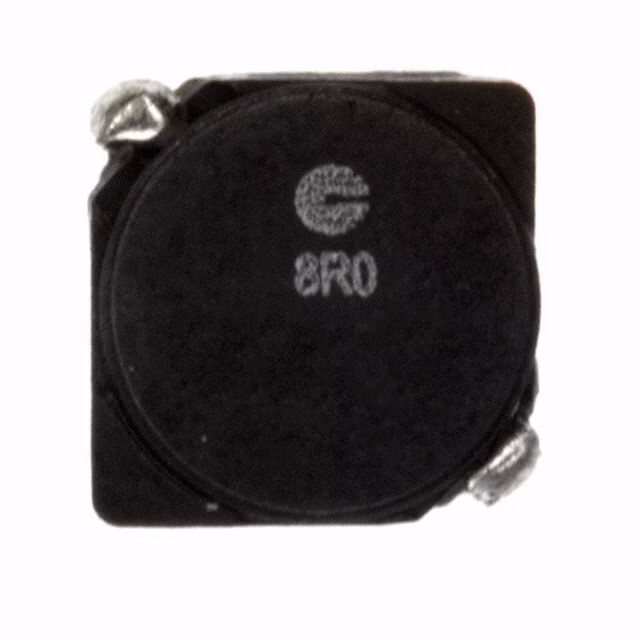

SD7030-8R0-RFIXED IND 7.8UH 2.2A 58 MOHM SMD Eaton - Electronics Division |
1,844 |
|
数据手册 |
SD7030 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 7.8 µH | ±30% | 2.2 A | 1.85A | Shielded | 58mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.118" (3.00mm) |
|
|
SD7030-120-RFIXED IND 11.5UH 1.9A 70MOHM SMD Eaton - Electronics Division |
1,979 |
|
数据手册 |
SD7030 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 11.5 µH | ±30% | 1.9 A | 1.55A | Shielded | 70mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.118" (3.00mm) |
|
|
SD7030-121-RFIXED IND 115.2UH 670MA 755 MOHM Eaton - Electronics Division |
3,364 |
|
数据手册 |
SD7030 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 115.2 µH | ±30% | 670 mA | 500mA | Shielded | 755mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.118" (3.00mm) |
