固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SLP1013V1-R170-RIND, 170NH, 66A, SMT, 2 PADS Eaton - Electronics Division |
2,016 |
|
数据手册 |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
UP4T-100-RFIXED IND 10UH 6.8A 18 MOHM TH Eaton - Electronics Division |
1,741 |
|
数据手册 |
UNI-PAC™ 4T | Radial, Vertical Cylinder, 4 Leads (Open) | Bulk | Obsolete | Wirewound | - | 10 µH | ±20% | 6.8 A | 11.5A | Unshielded | 18mOhm Max | - | - | - | - | 100 kHz | - | Through Hole | - | 0.669" Dia (17.00mm) | 0.518" (13.15mm) |
|
|
UP4T-1R5-RFIXED IND 1.5UH 13.4A 4.9MOHM TH Eaton - Electronics Division |
1,655 |
|
数据手册 |
UNI-PAC™ 4T | Radial, Vertical Cylinder, 4 Leads (Open) | Bulk | Obsolete | Wirewound | - | 1.5 µH | ±20% | 13.4 A | 28.9A | Unshielded | 4.9mOhm Max | - | - | - | - | 100 kHz | - | Through Hole | - | 0.669" Dia (17.00mm) | 0.518" (13.15mm) |
|
|
UP4T-2R2-RFIXED IND 2.2UH 12A 6 MOHM TH Eaton - Electronics Division |
2,054 |
|
数据手册 |
UNI-PAC™ 4T | Radial, Vertical Cylinder, 4 Leads (Open) | Bulk | Obsolete | Wirewound | - | 2.2 µH | ±20% | 12 A | 23.7A | Unshielded | 6mOhm Max | - | - | - | - | 100 kHz | - | Through Hole | - | 0.669" Dia (17.00mm) | 0.518" (13.15mm) |
|
|
UP4T-4R7-RFIXED IND 4.7UH 8.6A 11 MOHM TH Eaton - Electronics Division |
4,303 |
|
数据手册 |
UNI-PAC™ 4T | Radial, Vertical Cylinder, 4 Leads (Open) | Bulk | Obsolete | Wirewound | - | 4.7 µH | ±20% | 8.6 A | 15.6A | Unshielded | 11mOhm Max | - | - | - | - | 100 kHz | - | Through Hole | - | 0.669" Dia (17.00mm) | 0.518" (13.15mm) |
|
UP0.4C-1R5-RFIXED IND 1.5UH 2.58A 34MOHM SMD Eaton - Electronics Division |
1,871 |
|
数据手册 |
UNI-PAC™ 0.4C | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 2.58 A | 2.94A | Unshielded | 34mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
SD6030-7R8-RFIXED IND 7.8UH 2.38A 53MOHM SMD Eaton - Electronics Division |
2,456 |
|
数据手册 |
SD6030 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 7.8 µH | ±30% | 2.38 A | 1.6A | Shielded | 53mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.118" (3.00mm) |
|

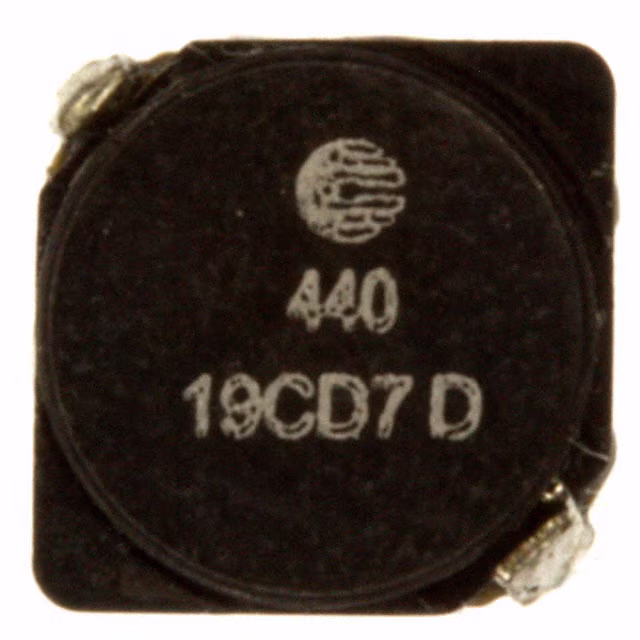

SD6030-440-RFIXED IND 44UH 1.1A 250 MOHM SMD Eaton - Electronics Division |
1,571 |
|
数据手册 |
SD6030 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 44 µH | ±30% | 1.1 A | 620mA | Shielded | 250mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.118" (3.00mm) |
|
|
SD6030-121-RFIXED IND 110.1UH 700MA 620 MOHM Eaton - Electronics Division |
3,486 |
|
数据手册 |
SD6030 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 110.1 µH | ±30% | 700 mA | 400mA | Shielded | 620mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.118" (3.00mm) |
|
|
SD6030-150-RFIXED IND 14.1UH 1.71A 103 MOHM Eaton - Electronics Division |
3,718 |
|
数据手册 |
SD6030 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 14.1 µH | ±30% | 1.71 A | 1.1A | Shielded | 103mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.118" (3.00mm) |
