固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TL1011V2-R110-RTL1211V1-R100-R, 100 NH, 104A, 4 Eaton - Electronics Division |
2,110 |
|
数据手册 |
TL1011V2 | Nonstandard, 4 Lead | Tape & Reel (TR) | Active | Wirewound | Ferrite | 110 nH | ±10% | 70 A | 83A | Unshielded | 0.6mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.378" L x 0.252" W (9.60mm x 6.40mm) | 0.433" (11.00mm) |
|
|
LD2-100-RFIXED IND 10UH 3.83A 70 MOHM SMD Eaton - Electronics Division |
2,428 |
|
数据手册 |
LD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 3.83 A | 3.45A | Unshielded | 70mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.197" (5.00mm) |
|
|
LD2-121-RFIXED IND 120UH 1.43A 470MOHM SM Eaton - Electronics Division |
2,199 |
|
数据手册 |
LD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 120 µH | ±20% | 1.43 A | 1.09A | Unshielded | 470mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.197" (5.00mm) |
|
|
LD2-150-RFIXED IND 15UH 3.38A 90 MOHM SMD Eaton - Electronics Division |
2,711 |
|
数据手册 |
LD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 3.38 A | 2.85A | Unshielded | 90mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.197" (5.00mm) |
|
|
LD2-180-RFIXED IND 18UH 3.19A 100MOHM SMD Eaton - Electronics Division |
1,957 |
|
数据手册 |
LD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±20% | 3.19 A | 2.6A | Unshielded | 100mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.197" (5.00mm) |
|
|
LD2-181-RFIXED IND 180UH 1.15A 710MOHM SM Eaton - Electronics Division |
4,653 |
|
数据手册 |
LD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 180 µH | ±20% | 1.15 A | 870mA | Unshielded | 710mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.197" (5.00mm) |
|

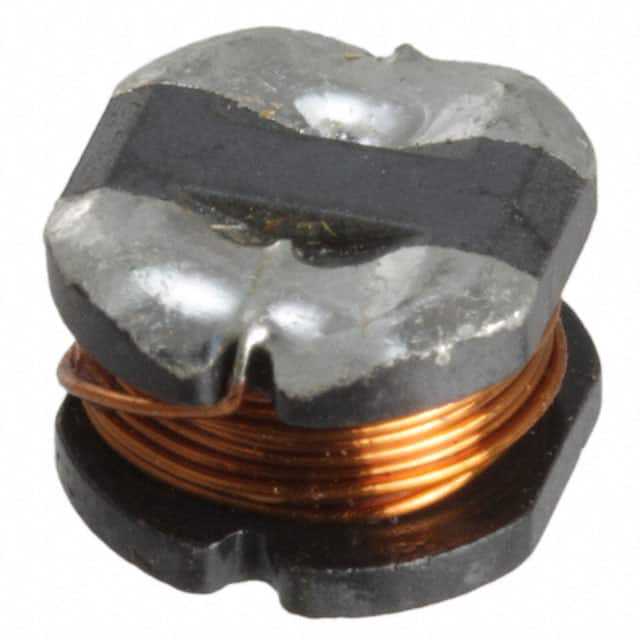

LD2-220-RFIXED IND 22UH 3.13A 110MOHM SMD Eaton - Electronics Division |
4,394 |
|
数据手册 |
LD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 3.13 A | 2.45A | Unshielded | 110mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.197" (5.00mm) |
|
|
LD2-270-RFIXED IND 27UH 2.81A 120MOHM SMD Eaton - Electronics Division |
3,014 |
|
数据手册 |
LD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±20% | 2.81 A | 2.1A | Unshielded | 120mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.197" (5.00mm) |
|
|
LD2-271-RFIXED IND 270UH 940MA 1.11OHM SM Eaton - Electronics Division |
4,885 |
|
数据手册 |
LD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 270 µH | ±20% | 940 mA | 730mA | Unshielded | 1.11Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.197" (5.00mm) |
|
|
LD2-330-RFIXED IND 33UH 2.7A 130 MOHM SMD Eaton - Electronics Division |
2,386 |
|
数据手册 |
LD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 2.7 A | 2.01A | Unshielded | 130mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.197" (5.00mm) |
