固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SDCL1V2510-2R2M-RIND 2.2 UH 1.60A SMT Eaton - Electronics Division |
4,230 |
|
数据手册 |
SDCL1V25 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 2.2 µH | ±20% | 1.4 A | 1.6A | Shielded | 150mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.041" (1.05mm) |
|
|
SDCL1V2510-R47N-RIND 0.47 UH2.57 A SMT Eaton - Electronics Division |
3,202 |
|
数据手册 |
SDCL1V25 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 470 nH | ±30% | 2.4 A | 2.57A | Shielded | 40mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.041" (1.05mm) |
|

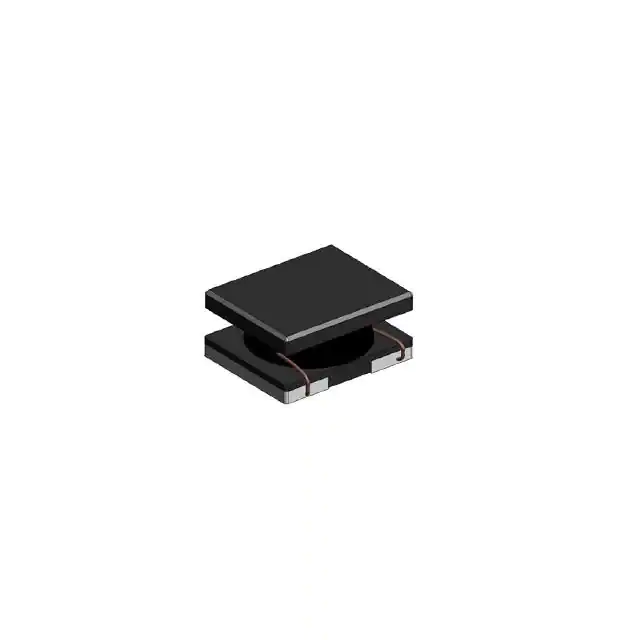

SDCL1V2510-1R5N-RIND 1.5 UH 1.90A SMT Eaton - Electronics Division |
1,795 |
|
数据手册 |
SDCL1V25 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1.5 µH | ±30% | 1.6 A | 1.9A | Shielded | 108mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.041" (1.05mm) |
|
|
SDCL1V2510-6R8M-RIND 6.8 UH 0.90A SMT Eaton - Electronics Division |
3,905 |
|
数据手册 |
SDCL1V25 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 6.8 µH | ±20% | 800 mA | 900mA | Shielded | 415mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.041" (1.05mm) |
|
MPI2010V1-R47-RFIXED IND 470NH 4.5A 31MOHM SMD Eaton - Electronics Division |
2,238 |
|
数据手册 |
MPI20-V1 | 0806 (2016 Metric) | Tape & Reel (TR) | Obsolete | - | - | 470 nH | ±20% | 4.5 A | 5.5A | Shielded | 31mOhm Max | - | 160MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 2010 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
MPI2010V1-1R0-RFIXED IND 1UH 3.3A 62 MOHM SMD Eaton - Electronics Division |
3,205 |
|
数据手册 |
MPI20-V1 | 0806 (2016 Metric) | Tape & Reel (TR) | Obsolete | - | - | 1 µH | ±20% | 3.3 A | 3.6A | Shielded | 62mOhm Max | - | 100MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 2010 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
SDCL1V2512-6R8M-RIND 6.8 UH 1.00A SMT Eaton - Electronics Division |
4,315 |
|
数据手册 |
SDCL1V25 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 6.8 µH | ±20% | 900 mA | 1A | Shielded | 305mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
SDCL1V2512-3R3M-RIND 3.3 UH 1.50A SMT Eaton - Electronics Division |
2,957 |
|
数据手册 |
SDCL1V25 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 3.3 µH | ±20% | 1.4 A | 1.5A | Shielded | 150mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
WCLA1608V1-390-RFIXED IND 39NH 600MA 250MOHM SMD Eaton - Electronics Division |
3,217 |
|
数据手册 |
WCLA1608V1 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 39 nH | ±5% | 600 mA | - | Unshielded | 250mOhm Max | 40 @ 250MHz | 2.2GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.070" L x 0.043" W (1.78mm x 1.10mm) | 0.037" (0.95mm) |
|
|
WCLA1608V1-121-RFIXED IND 120NH 300MA 730MOHM SM Eaton - Electronics Division |
2,642 |
|
数据手册 |
WCLA1608V1 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 120 nH | ±5% | 300 mA | - | Unshielded | 730mOhm Max | 32 @ 150MHz | 1.3GHz | AEC-Q200 | -40°C ~ 125°C | 150 MHz | - | Surface Mount | 0603 | 0.070" L x 0.043" W (1.78mm x 1.10mm) | 0.037" (0.95mm) |
